Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 6 illustrations

Illustrations

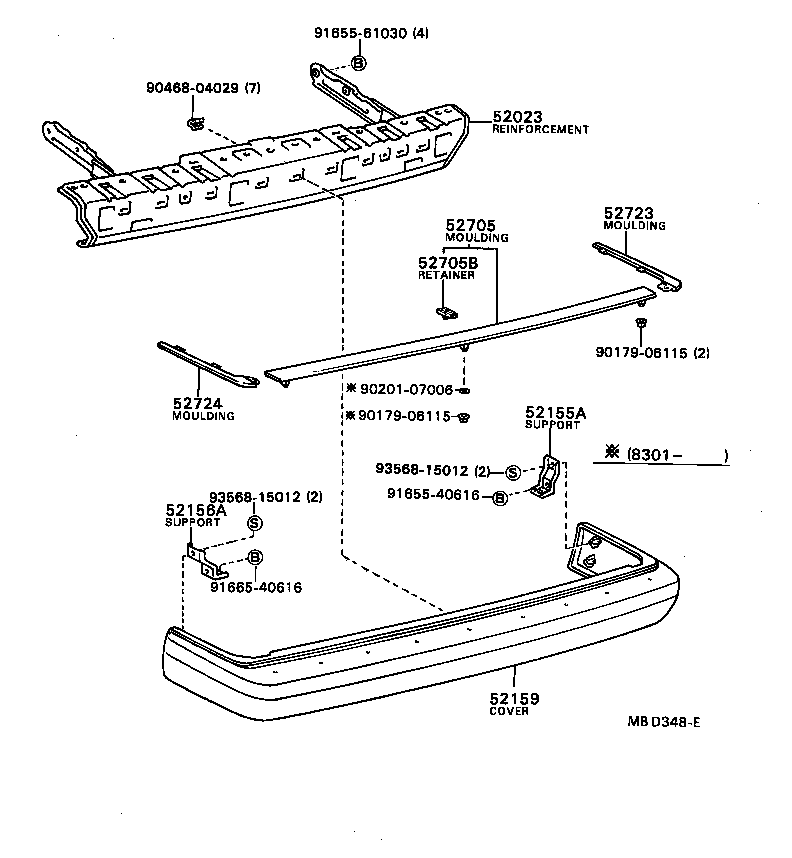

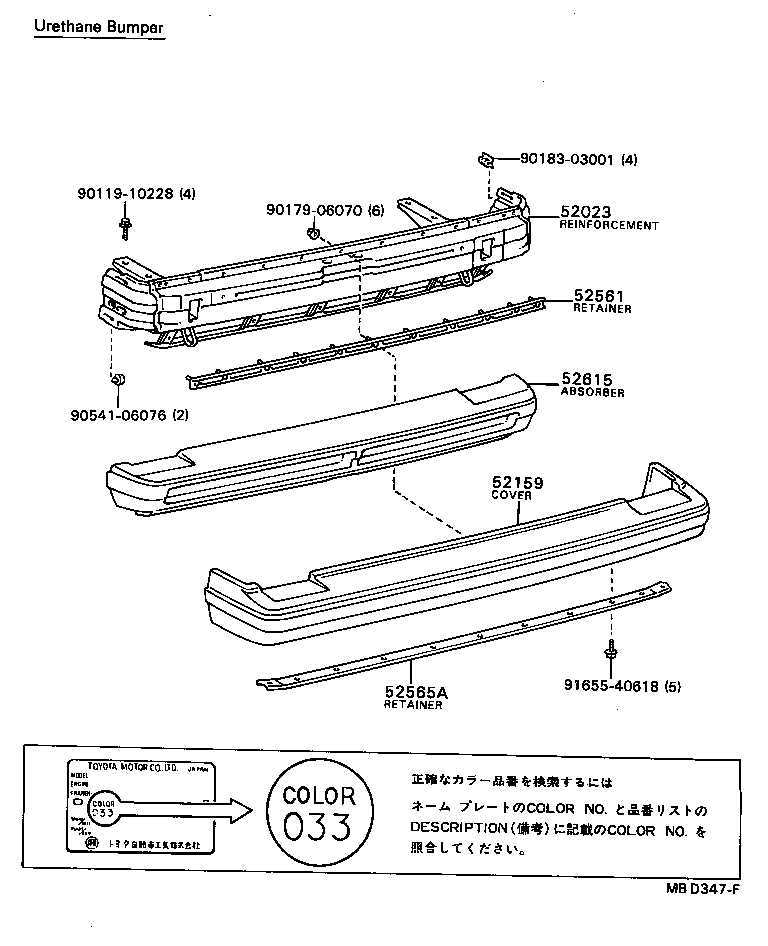

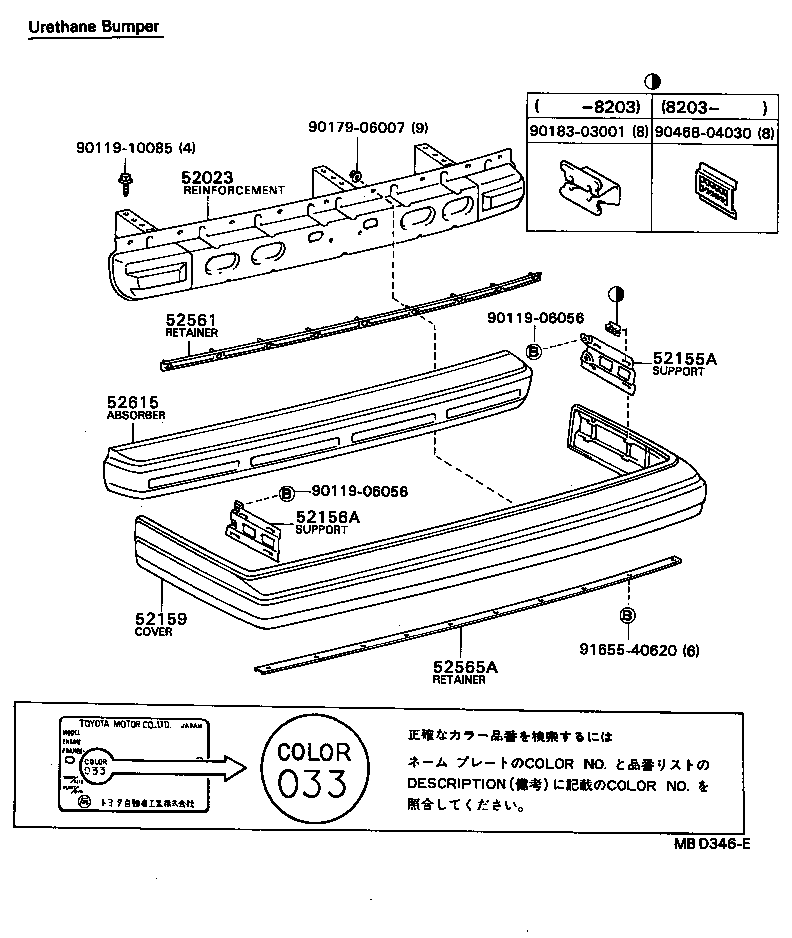

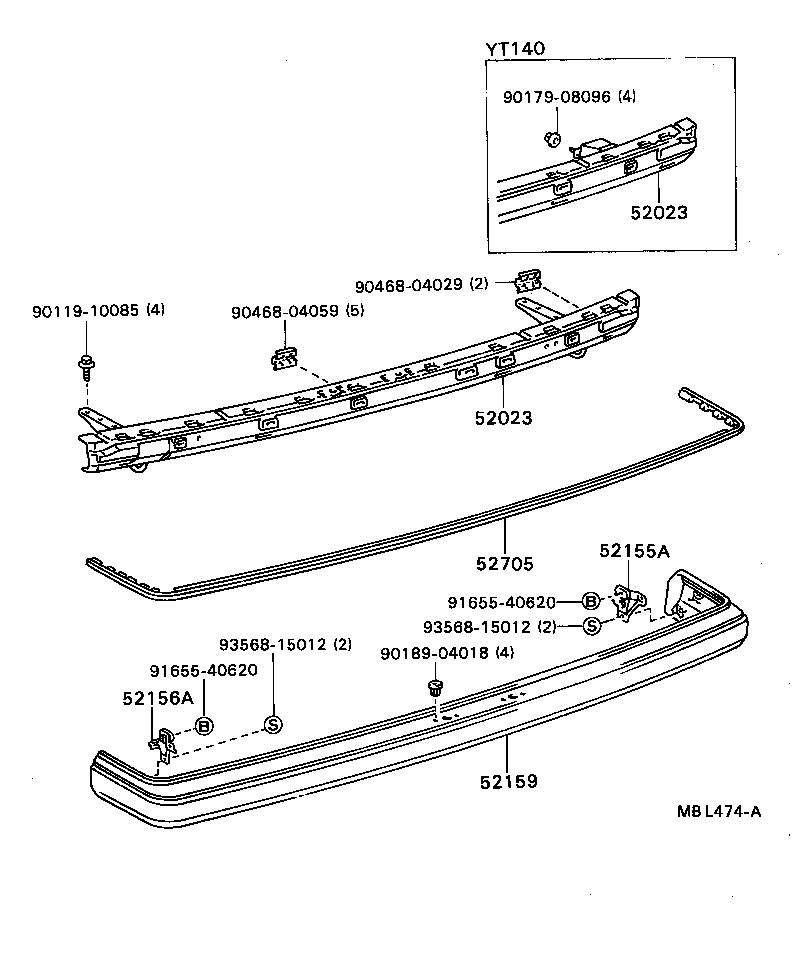

Figure MBD345I MBD345I 1982-01 → 1986-12 Figure MBD345I MBD345I 1986-12 → 1987-12 Figure MBL474A MBL474A 1986-12 → — Figure MBD346E MBD346E 1982-01 → 1985-08 Figure MBD347F MBD347F 1982-01 → 1985-08 Figure MBD348E MBD348E 1982-01 → 1987-12

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52705B Retainer, Rear Bumper Moulding
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
