Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 4 illustrations

Illustrations

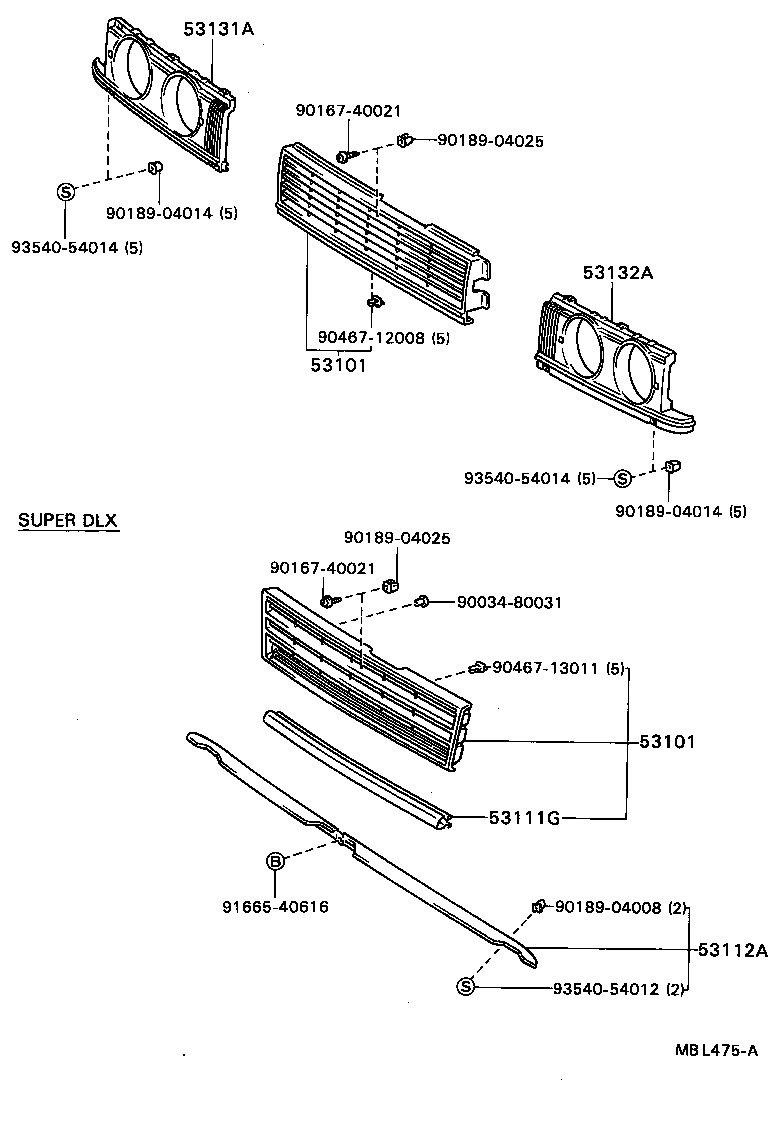

Figure MBD440G MBD440G 1982-01 → 1985-08 Figure MBJ269A MBJ269A 1985-08 → 1986-12 Figure MBJ269A MBJ269A 1986-12 → 1987-12 Figure MBL475A MBL475A 1986-12 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111C Moulding, Radiator Grille, Upper
53111G Moulding, Radiator Grille, Lower
53112A Grille, Radiator, Lower
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
