Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10

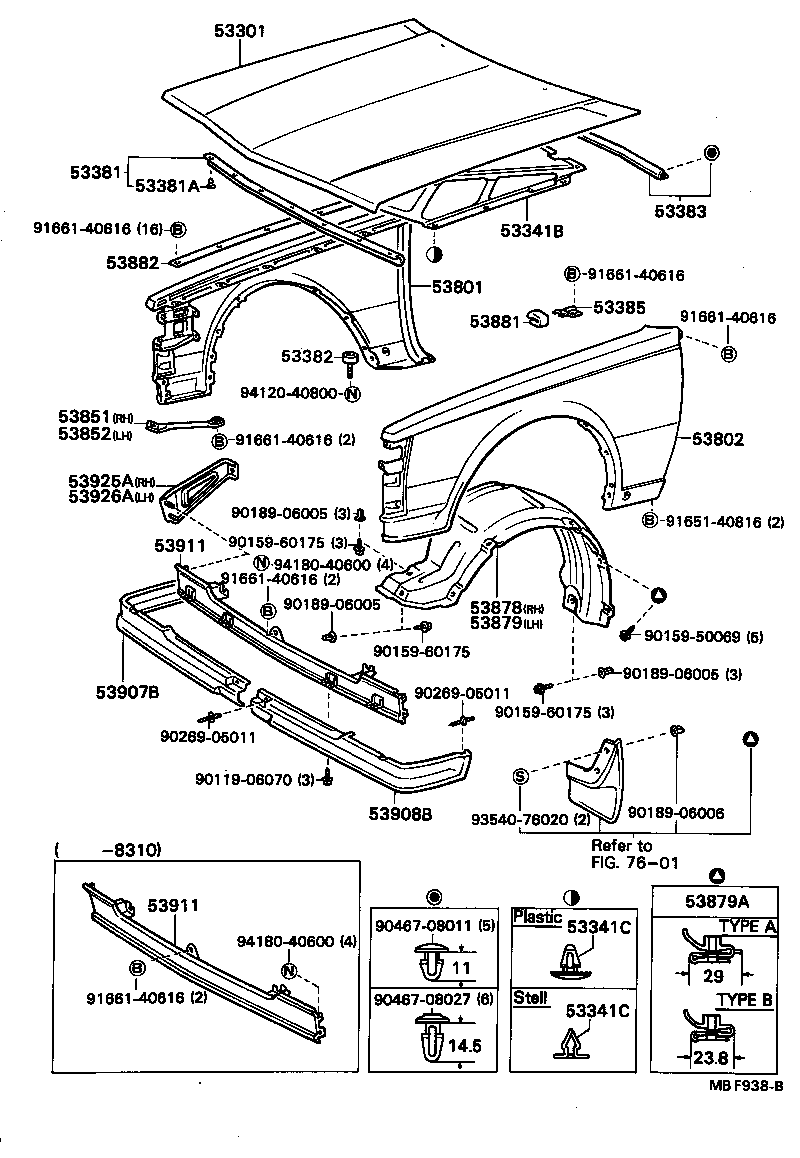

Hood & Front Fender
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53382 | Bumper, Hood, Front |
| 53383 | Seal, Hood TO Cowl Top |
| 53385 | Retainer, Hood, Bumper |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827B | Protector, Front Fender Side Panel |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53851 | Brace, Front Fender TO Radiator Support, RH |
| 53852 | Brace, Front Fender TO Radiator Support, LH |
| 53878 | Liner, Front Fender, RH |
| 53878C | Spacer, Front Fender |
| 53879 | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53881 | Bumper, Fender TO Hood |
| 53882 | Packing, Front Fender Main |
| 53907B | Extension Sub-assy, Front End Panel, RH |
| 53908B | Extension Sub-assy, Front End Panel, LH |
| 53911 | Panel, Front Valance |
| 53925A | Plate, Front Valance Panel, RH |
| 53926A | Plate, Front Valance Panel, LH |
| 58743B | Protecter, Front Fender Panel, RH |
| 58744B | Protecter, Front Fender Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
