Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 6 illustrations

Illustrations

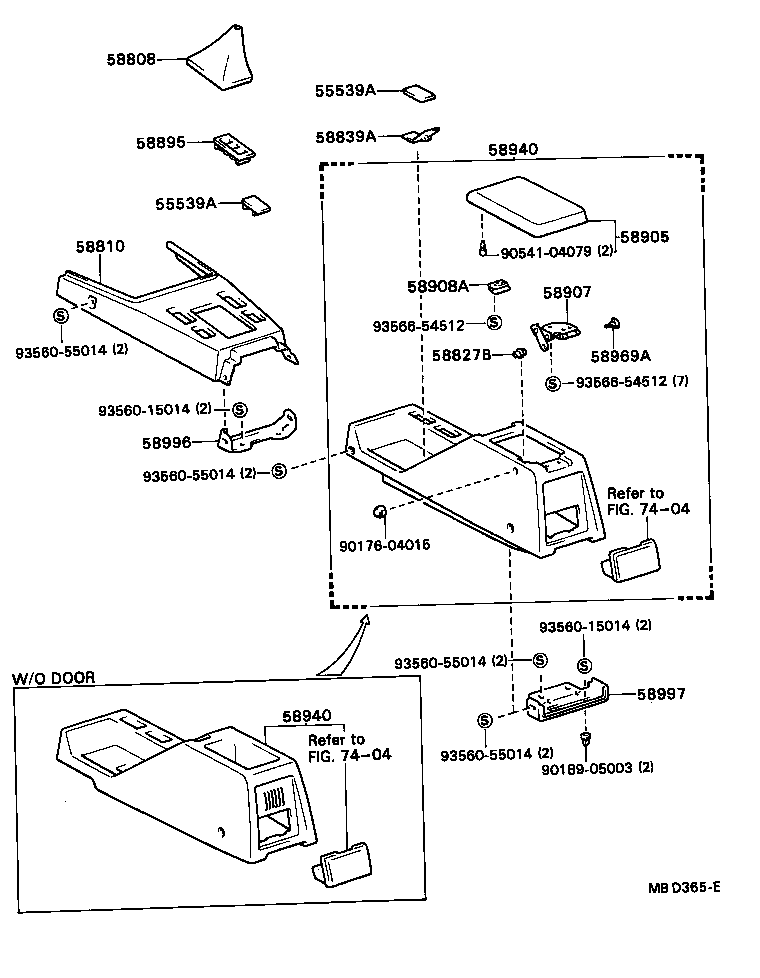

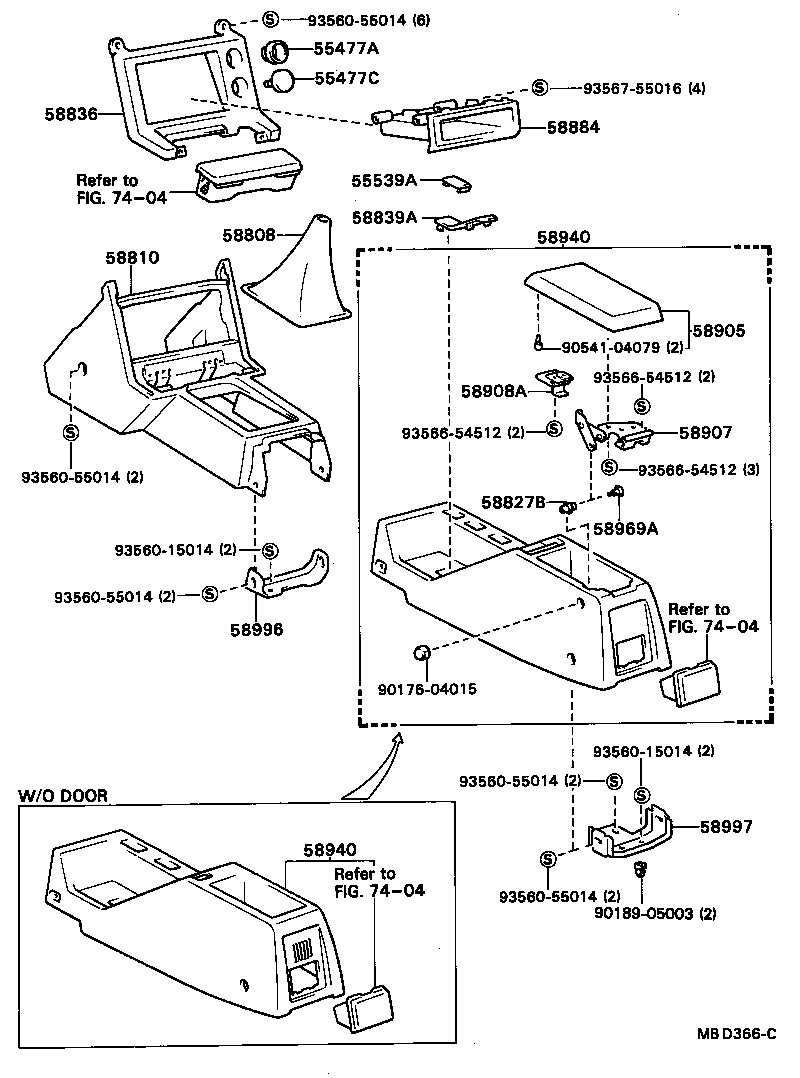

Figure MBF939A MBF939A 1982-01 → — Figure MBF939A MBF939A 1982-09 → — Figure MBF939A MBF939A 1983-05 → — Figure MBD365E MBD365E 1982-01 → — Figure MBD365E MBD365E 1983-05 → — Figure MBD366C MBD366C 1982-01 → 1985-08

Part groups

PNCDescription
55477A Bezel, Cigarette Lighter Hole
55477C Cover, Cooler Switch Hole
55539A Cover, Spare Switch Hole
58266 Bracket, Console Box Support, Front
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58823 Panel, Console, Rear
58827B Spacer, Console Compartment Door Stopper
58836 Panel, Console, Upper Front
58839A Cover, Console Box Hole
58884 Cover, Stereo Opening
58895 Cover, Switch Hole, NO.1
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
58969A Retainer, Console Compartment Door Stopper
58996 Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
