Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

52 part groups · 5 illustrations

Illustrations

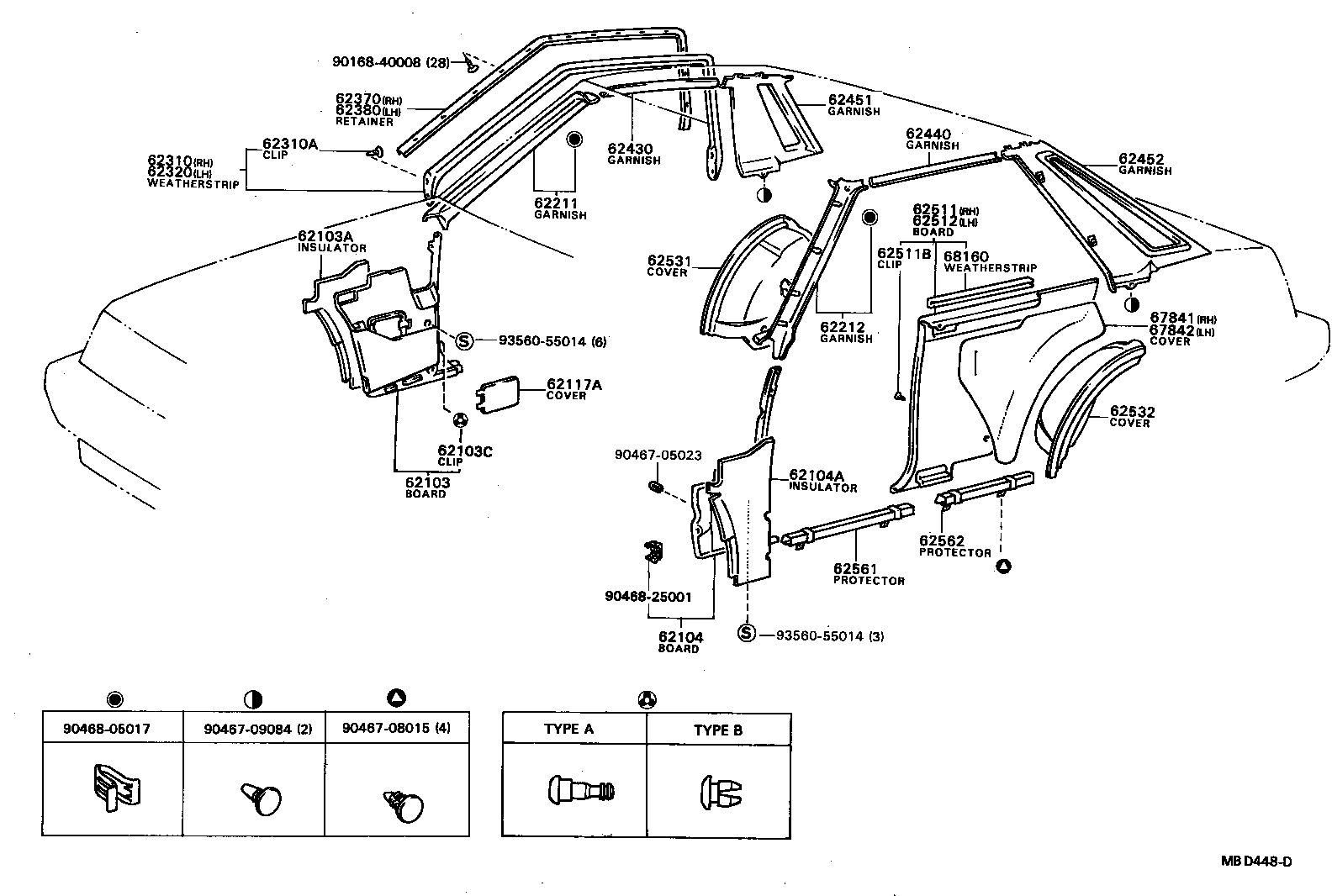

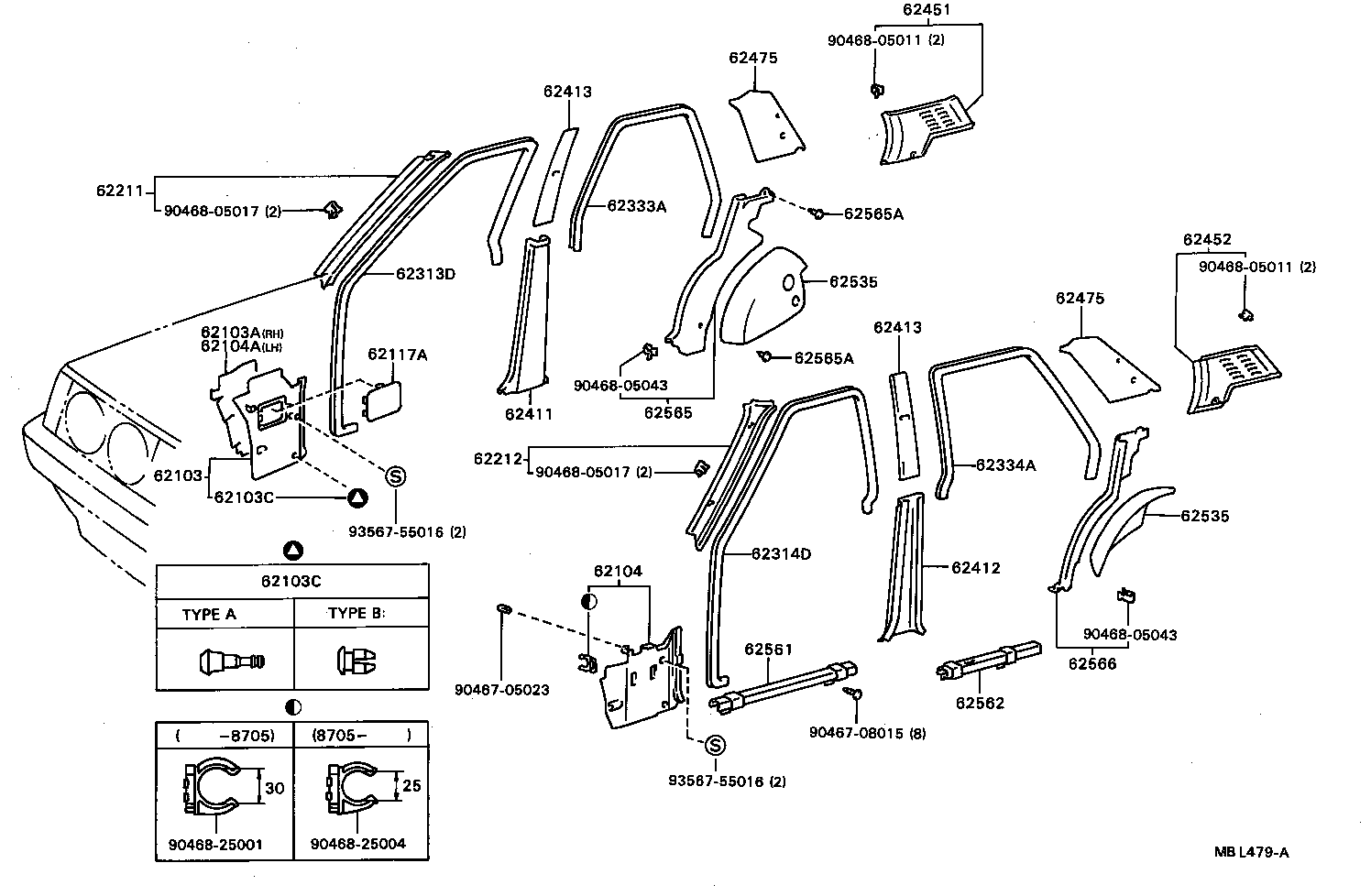

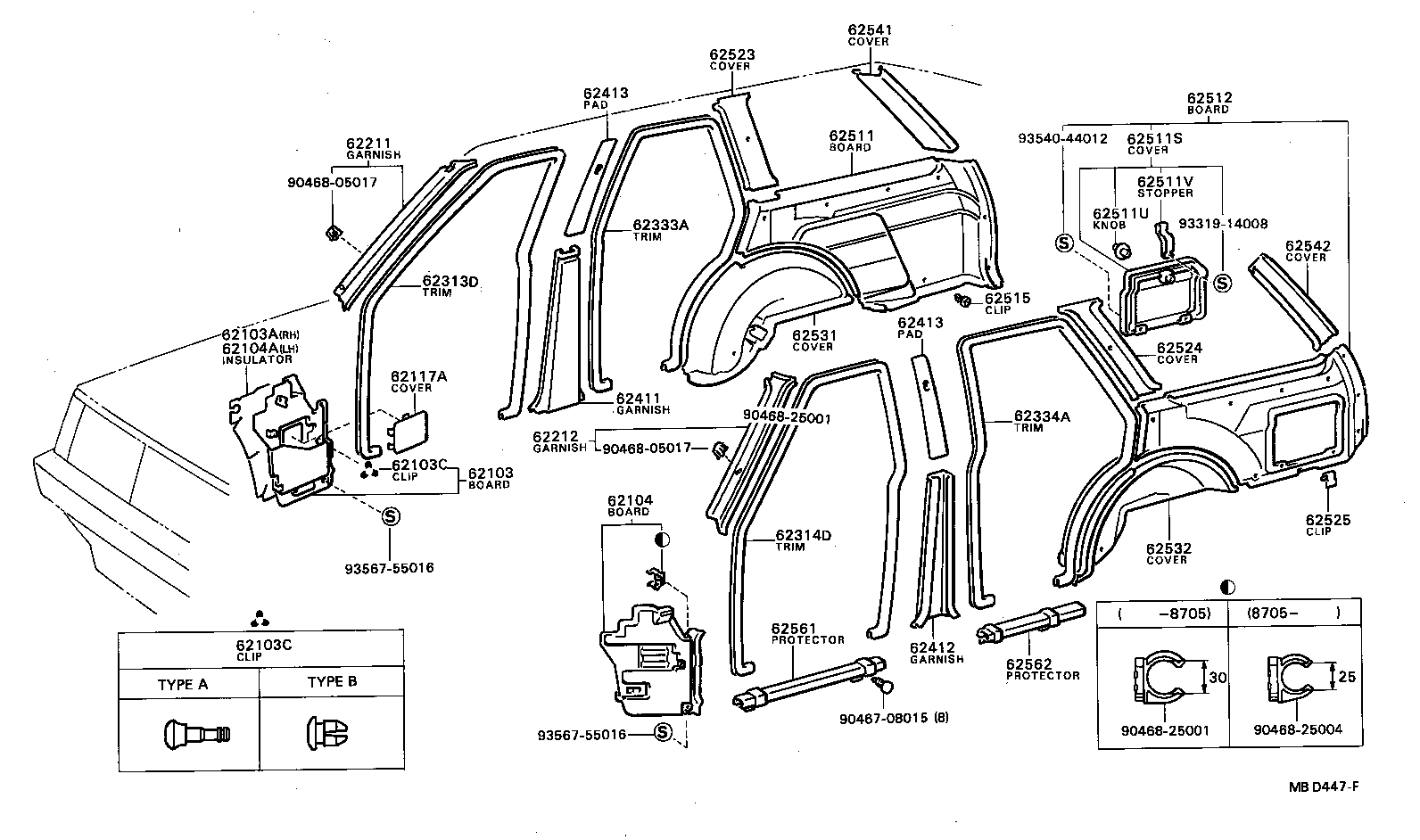

Figure MBD446G MBD446G 1982-01 → 1986-12 Figure MBD446G MBD446G 1986-12 → 1987-12 Figure MBL479A MBL479A 1986-12 → — Figure MBD448D MBD448D 1982-01 → 1987-12 Figure MBD447F MBD447F 1982-01 → 1987-12

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62103A Insulator Sub-assy, Cowl Side, RH
62103C Clip, Cowl Side Trim Board Set
62104 Board Sub-assy, Cowl Side Trim, LH
62104A Insulator Sub-assy, Cowl Side, LH
62117A Cover, Cowl Side Trim Service Hole
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62310 Weatherstrip, Roof Side Rail, RH
62310A Clip, Roof Side Rail Weatherstrip
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62320 Weatherstrip, Roof Side Rail, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62370 Retainer Assy, Roof Side Rail Weatherstrip, RH
62380 Retainer Assy, Roof Side Rail Weatherstrip, LH
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413 Pad, Center Pillar Garnish
62430 Garnish Assy, Roof Side Rail, RH
62440 Garnish Assy, Roof Side Rail, LH
62451 Garnish, Roof Side Inner, RH
62452 Garnish, Roof Side Inner, LH
62475 Pad, Roof Side Inner Garnish
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511S Cover, Quarter Trim Jack
62511U Knob, Jack Cover
62511V Stopper, Jack Cover
62512 Board, Quarter Inside Trim, LH
62515 Clip, Quarter Inside Trim
62523 Cover, Rear Pillar Upper Garnish, RH
62524 Cover, Rear Pillar Upper Garnish, LH
62525 Clip, Rear Body Inside Trim
62531 Cover, Wheel House Trim, RH
62532 Cover, Wheel House Trim, LH
62535 Pad, Quarter Wheel House Trim
62541 Cover, Quarter Pillar Upper Garnish, RH
62542 Cover, Quarter Pillar Upper Garnish, LH
62561 Protector, Rocker Panel, Inner Front
62562 Protector, Rocker Panel, Inner Rear
62565 Garnish, Rear Seat Side, RH
62565A Clip (FOR REAR SEAT SIDE GARNISH)
62566 Garnish, Rear Seat Side, LH
62581C Garnish, Rear Window Side, RH
62582C Garnish, Rear Window Side, LH
67841 Cover, Quarter Service Hole, NO.1 RH
67842 Cover, Quarter Service Hole, NO.1 LH
68160 Weatherstrip Assy, Rear Quarter, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
