Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10

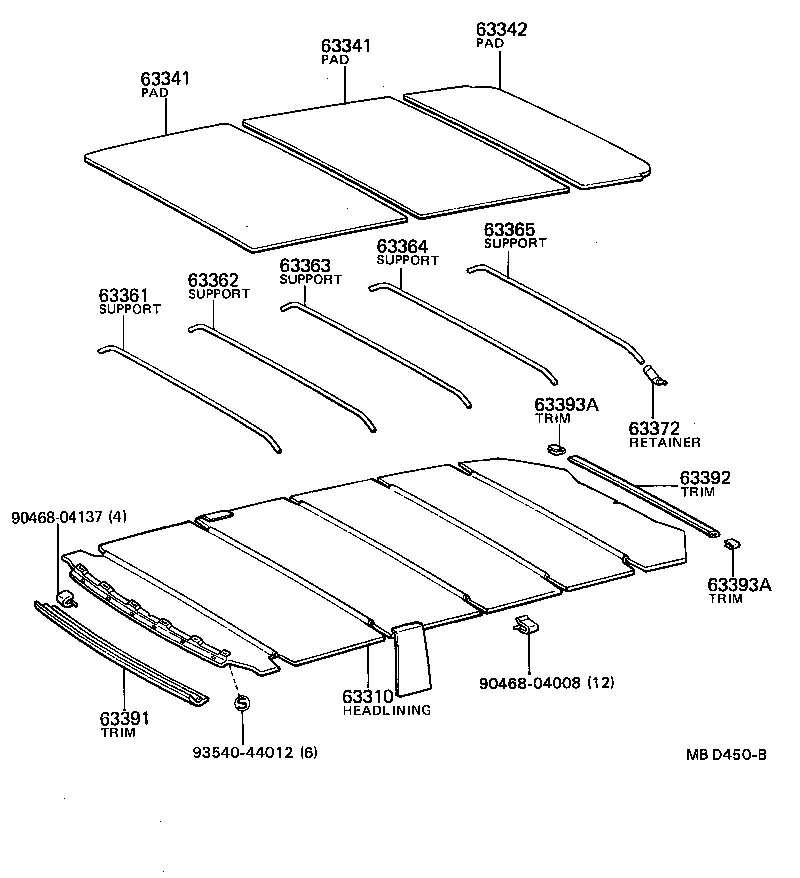

Roof Headlining & Silencer Pad
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63320 | Headlining Assy, Sun Roof OR Removable Roof |
| 63320A | Moulding, Sun Roof OR Removable Roof Opening Trim |
| 63320B | Joint, Sun Roof Opening Trim |
| 63320C | Retainer, Trim Board(FOR SUN ROOF) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63372 | Retainer, Headlining Support |
| 63376 | Clip, Headlining |
| 63381 | Retainer, Headlining, Front |
| 63391 | Trim, Roof Headlining, Front |
| 63392 | Trim, Roof Headlining, Rear |
| 63393A | Trim, Roof Headlining, Side, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
