Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

21 part groups · 4 illustrations

Illustrations

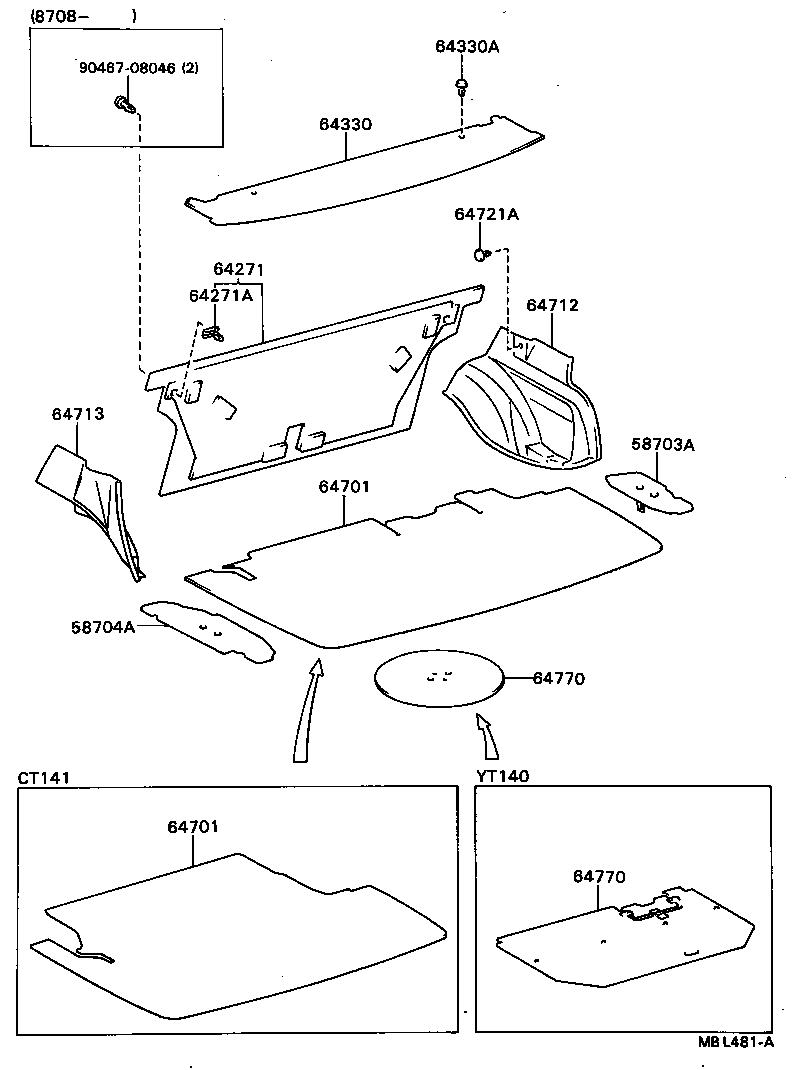

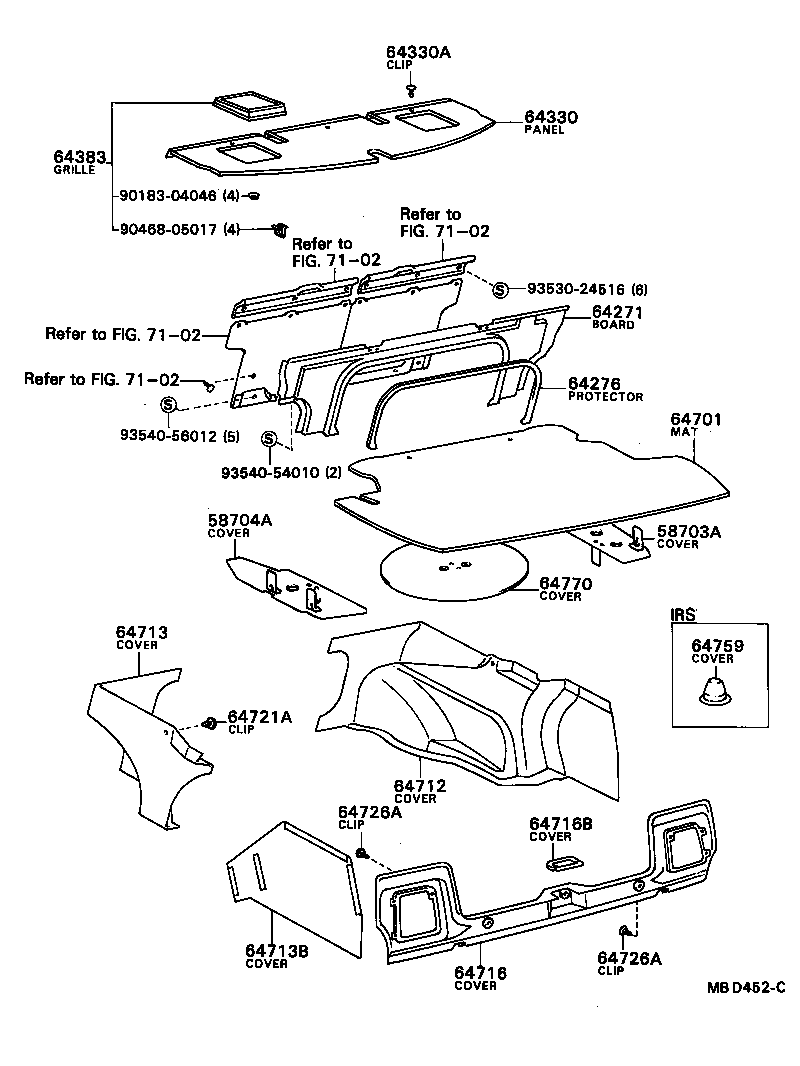

Figure MBD451G MBD451G 1982-01 → 1986-12 Figure MBD451G MBD451G 1986-12 → 1987-12 Figure MBL481A MBL481A 1986-12 → — Figure MBD452C MBD452C 1982-01 → 1985-08

Part groups

PNCDescription
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64271 Board, Room Partition, NO.1
64271A Retainer, Room Partition Board
64276 Protector, Room Partition Door Opening
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64383 Grille, Speaker, Rear
64701 Mat Sub-assy, Luggage Compartment
64701C Clip(FOR LUGGAGE COMPARTMENT MAT)
64712 Cover, Luggage Compartment Trim, RH
64713 Cover, Luggage Compartment Trim, LH
64713B Cover, Luggage Compartment Trim, Side, LH
64716 Cover, Luggage Compartment, Rear Center
64716B Cover, Luggage Compartment Door Striker
64717A Cover, Luggage Compartment Trim, Front
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64725 Retainer, Luggage Compartment Cover, NO.1
64726A Clip, Luggage Trim, Rear
64759 Cover, Shock Absorber Head
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
