Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

18 part groups · 3 illustrations

Illustrations

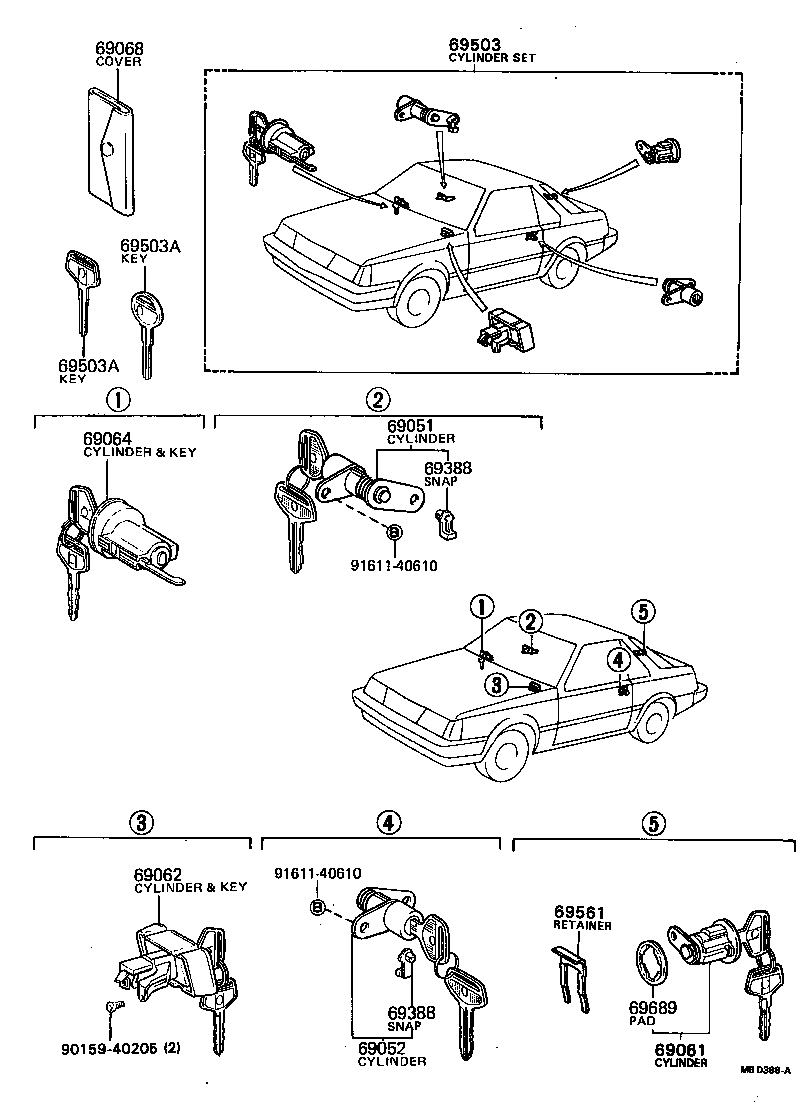

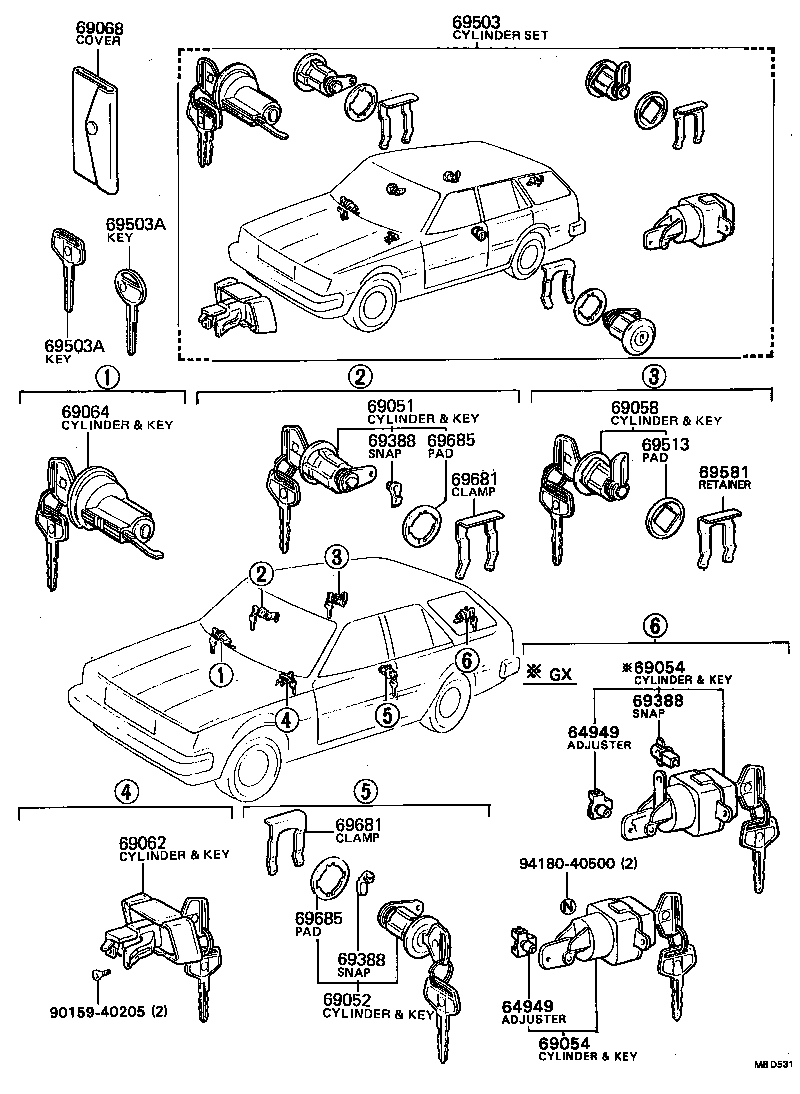

Figure MBD387 MBD387 1982-01 → — Figure MBD388A MBD388A 1982-01 → 1985-08 Figure MBD531 MBD531 1982-01 → 1987-12

Part groups

PNCDescription
64949 Adjuster, Back Door Lock Control Link
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69061 Cylinder & Key Set, Luggage Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69068 Cover Sub-assy, Key
69388 Snap, Rod(FOR DOOR LOCK)
69503 Cylinder Set, Lock
69503A Key, Blank
69513 Pad, Fuel Filler Lid Lock Cylinder
69561 Retainer, Luggage Compartment OR Back Door Lock Cylinder
69581 Retainer, Fuel Filler Lid Cylinder
69681 Clamp, Door Lock Cylinder & Sleeve
69685 Pad, Lock Cylinder
69689 Pad, Luggage Compartment OR Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
