Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

100 part groups · 11 illustrations

Illustrations

MBE334H 1982-10 → —

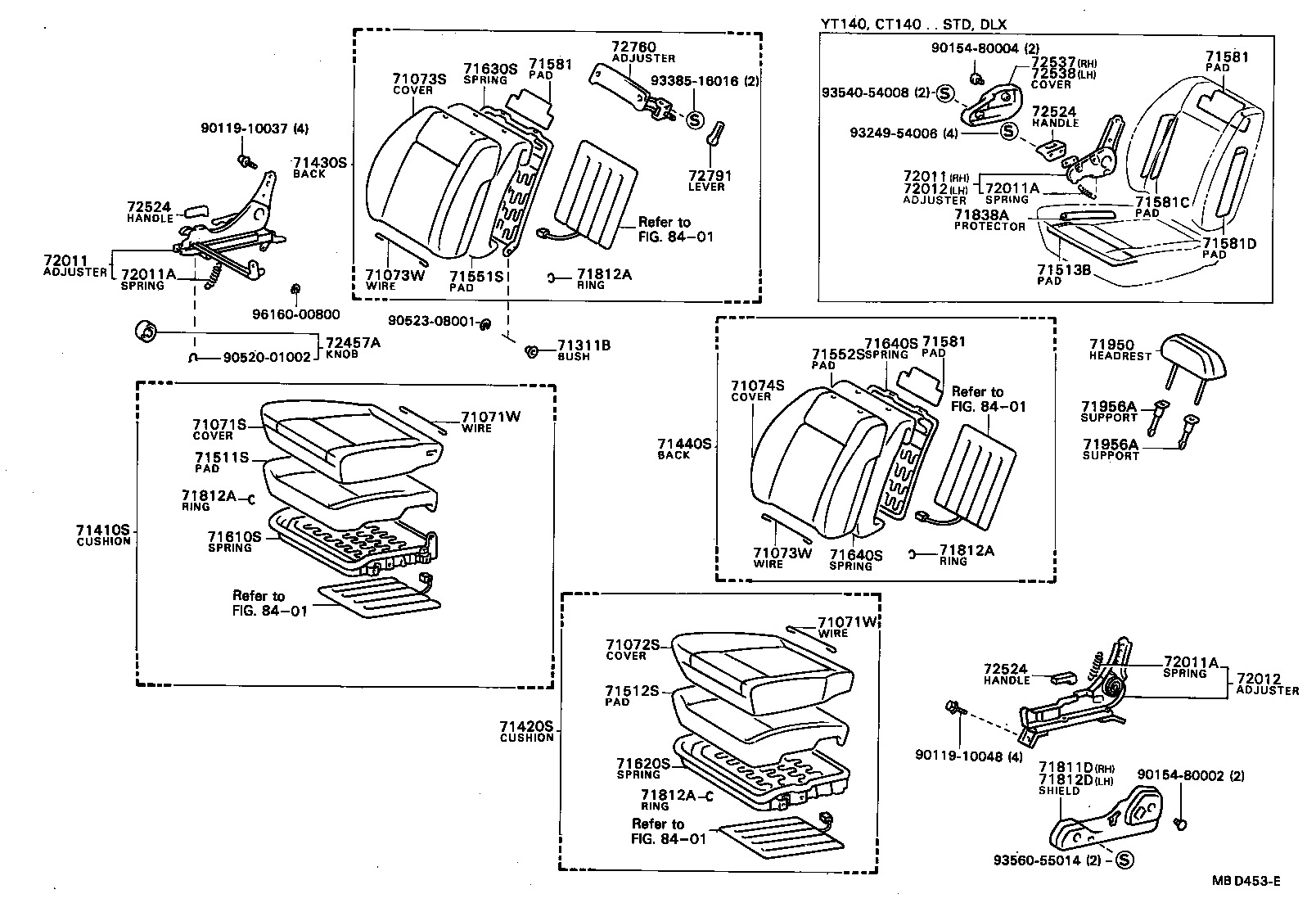

MBD453E 1982-01 → 1983-10

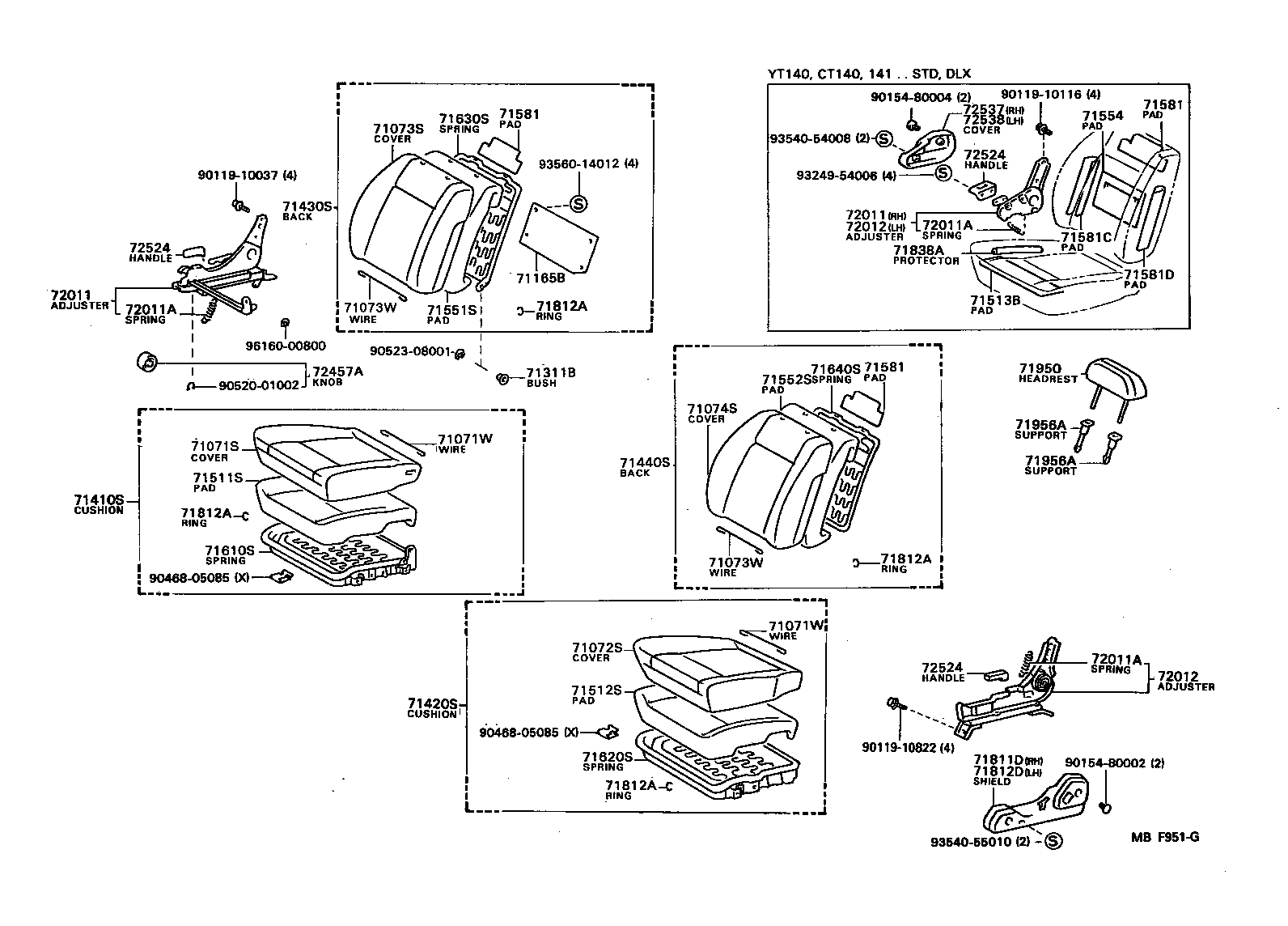

MBF951G 1983-10 → —

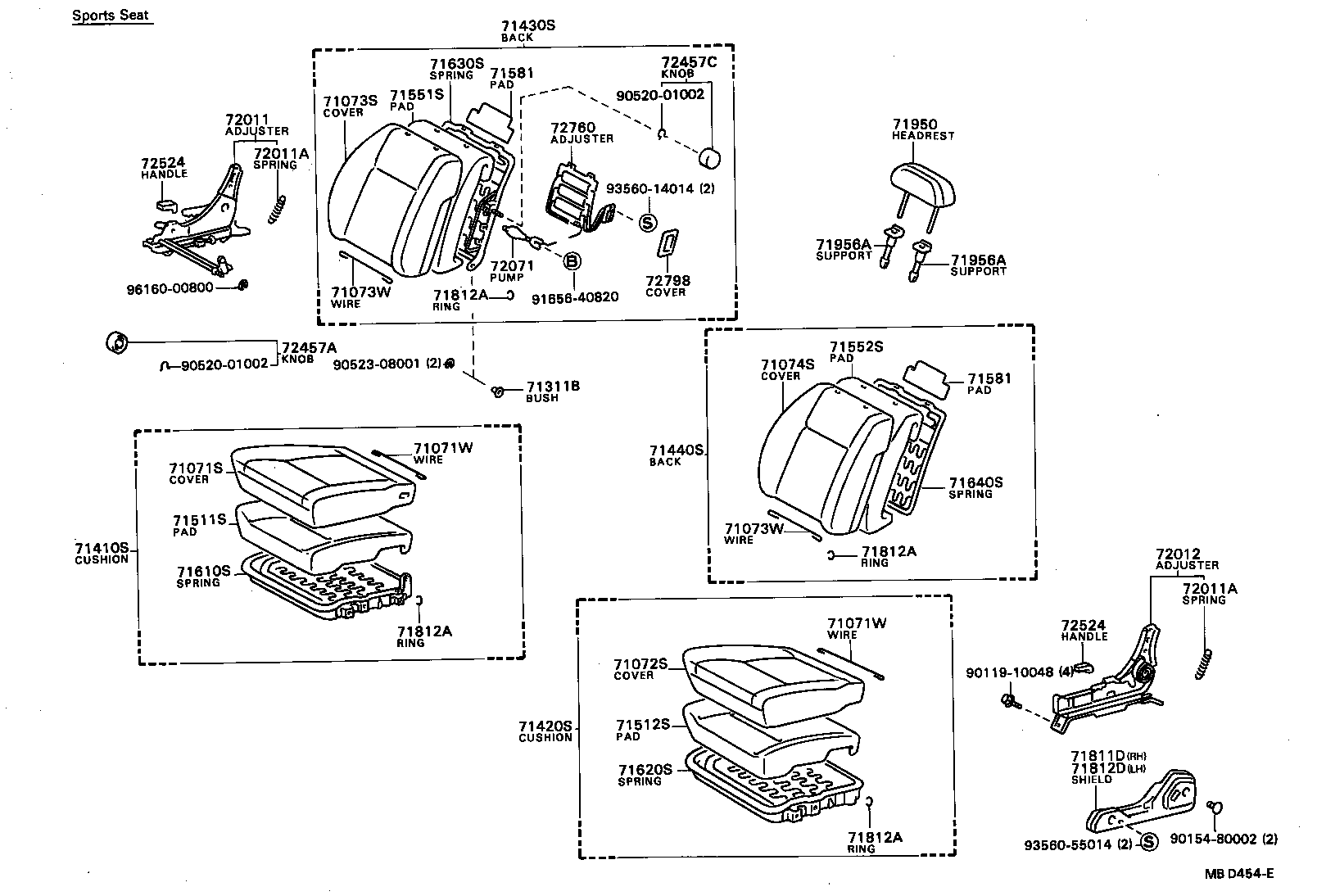

MBD454E 1982-01 → 1983-10

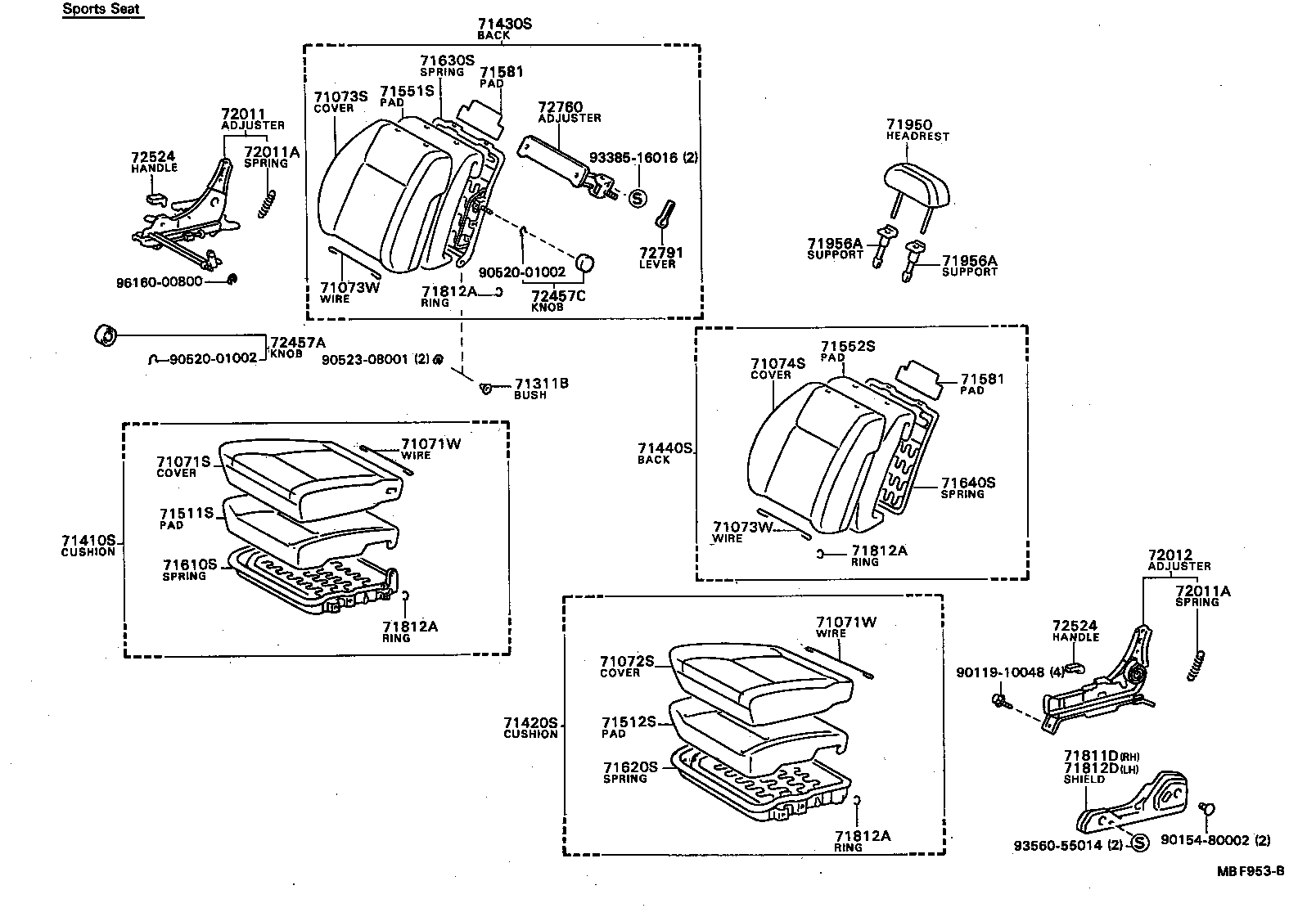

MBF953B 1983-10 → 1985-08

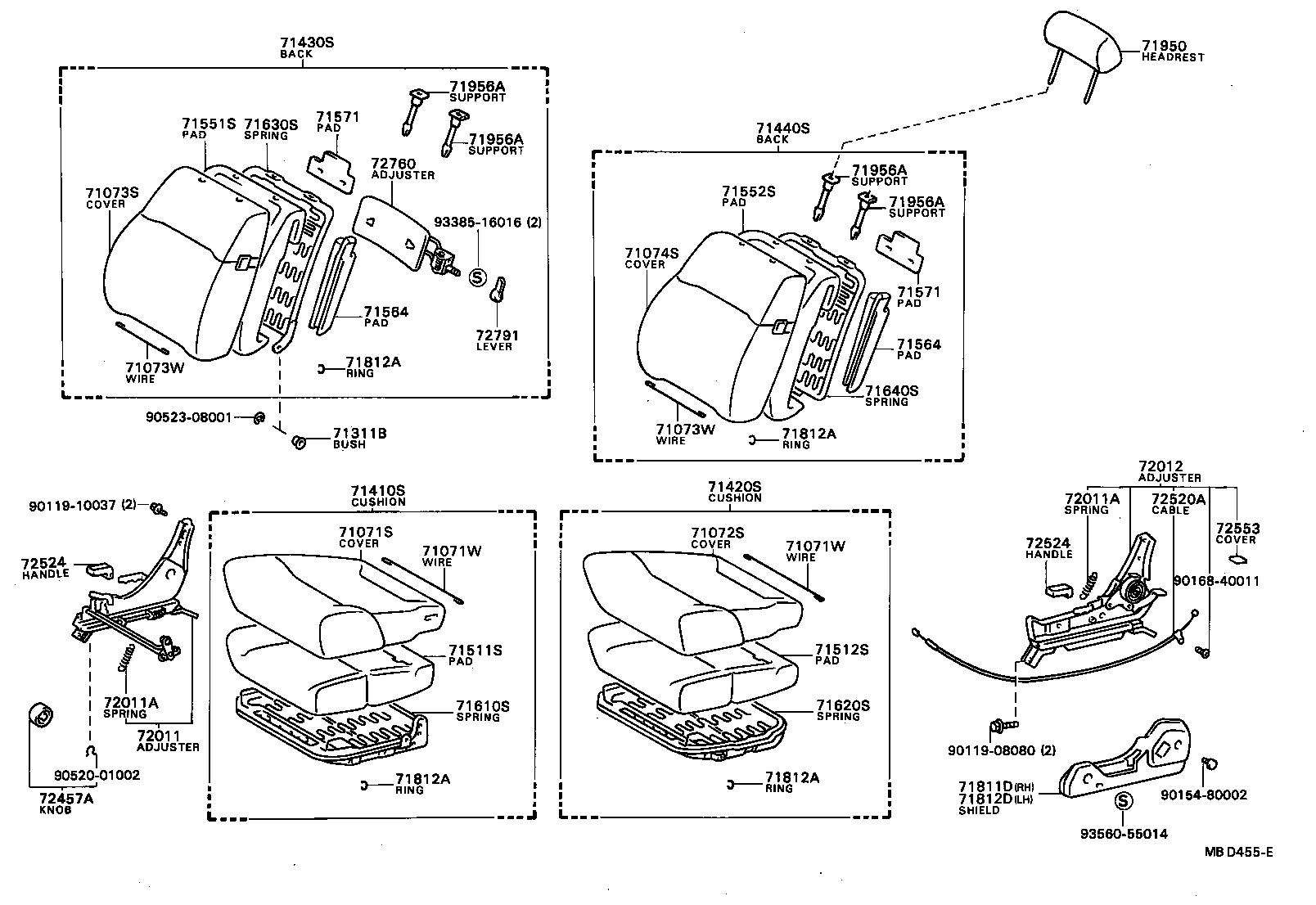

MBD455E 1982-01 → 1983-10

MBD455E 1983-10 → 1985-08

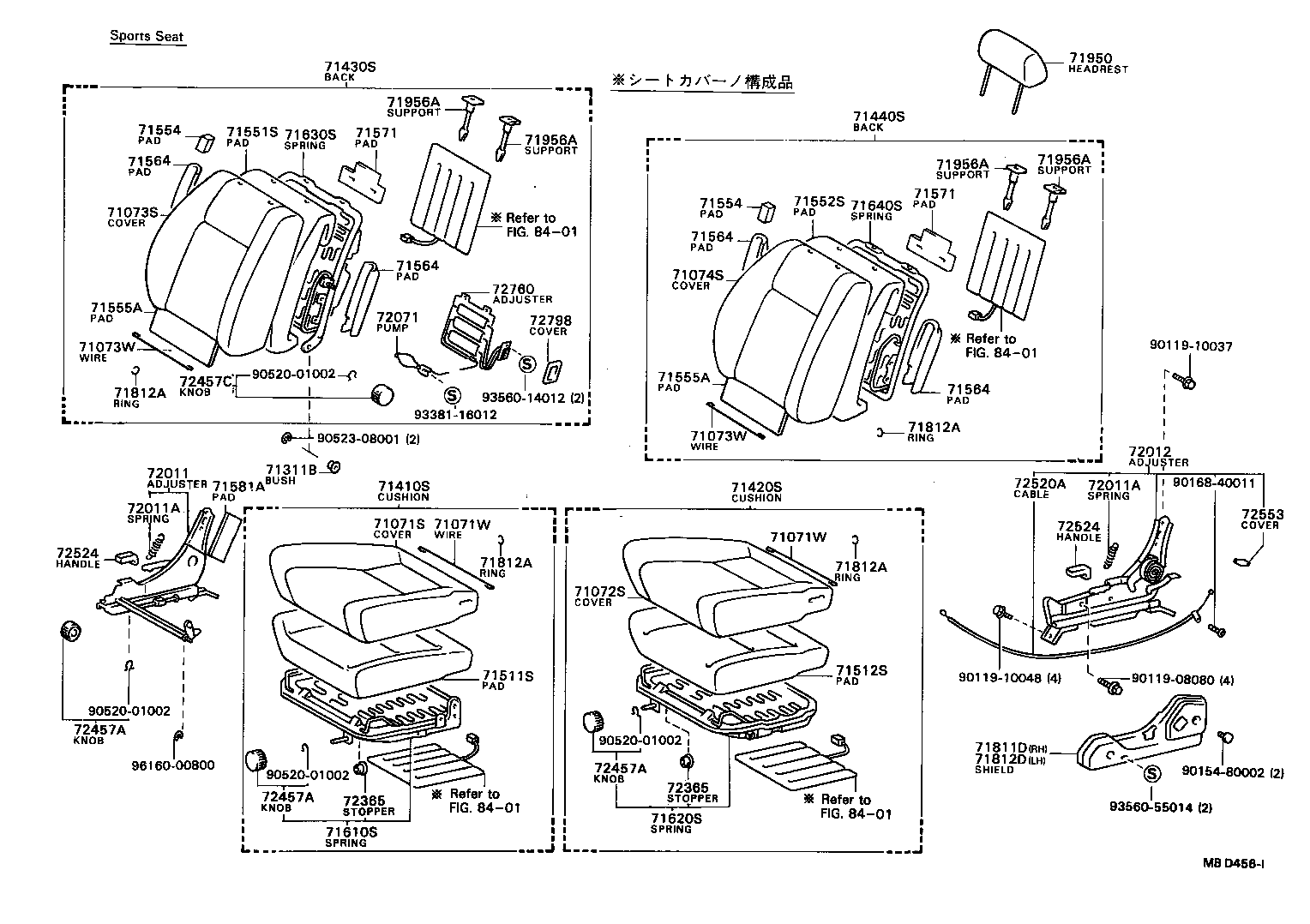

MBD456I 1982-01 → 1983-10

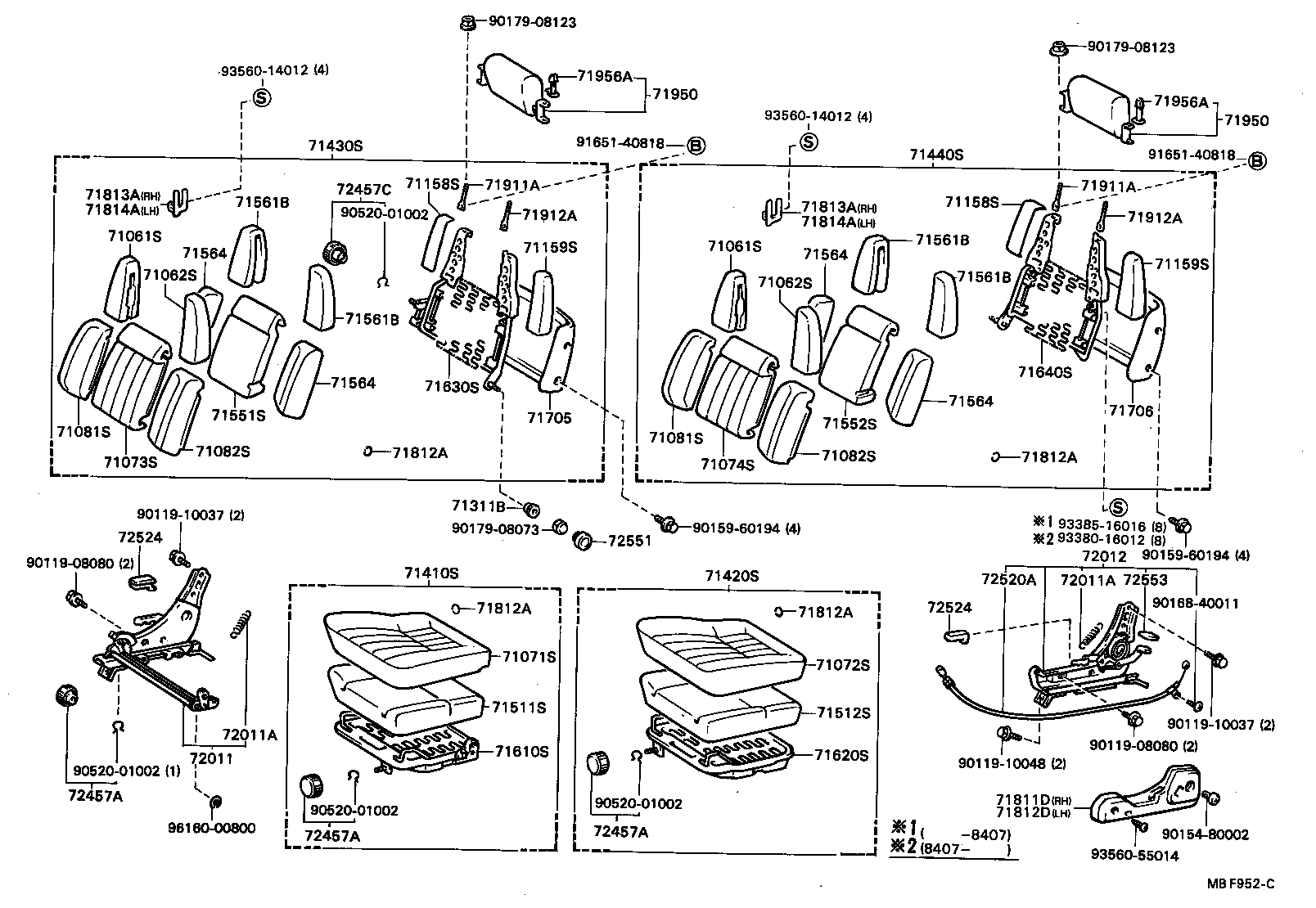

MBF952C 1983-10 → 1985-08

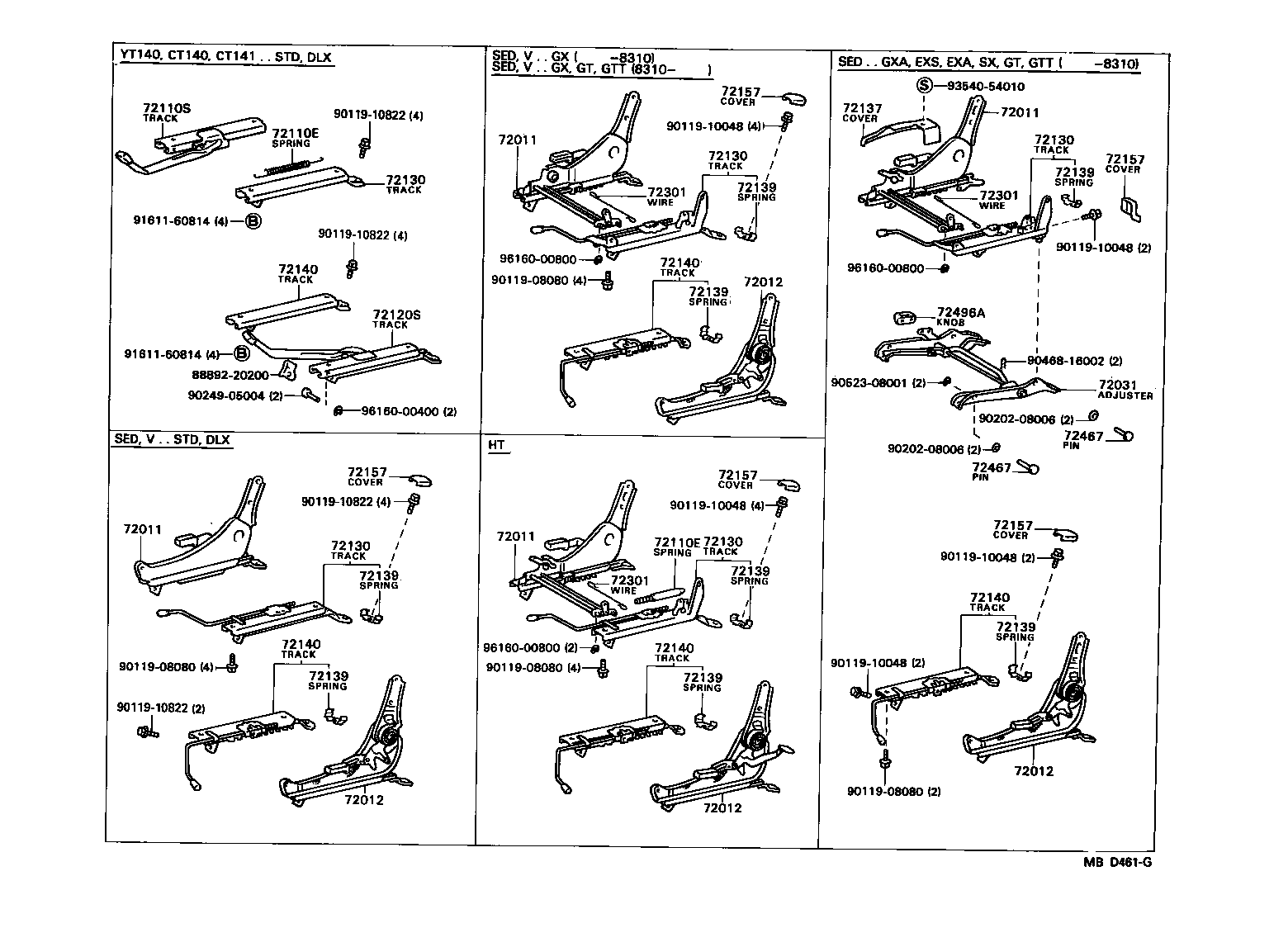

MBD461G 1982-01 → —

MBE335D 1982-09 → —

Part groups

PNC	Description
71061S	Cover Sub-assy, Front Seatback, Upper RH
71062S	Cover Sub-assy, Front Seatback, Upper LH
71071P	Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071W	Wire, Front Seat Cushion Cover
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073P	Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073W	Wire, Front Seatback Cover
71074P	Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71081S	Cover Sub-assy, Front Seatback Side, RH
71082S	Cover Sub-assy, Front Seatback Side, LH
71158S	Frame, Front Seatback, Upper RH
71159S	Frame, Front Seatback, Upper LH
71165B	Panel, Front Seatback, Inside RH
71204	Hinge Sub-assy, Passenger Seat, LH
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71410P	Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430P	Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440P	Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511P	Pad, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71513A	Pad, Front Seat Cushion, A
71513B	Pad, Front Seat Cushion, B
71513D	Pad, Front Seat Cushion, D
71537A	Protector, Front Seat Cushion
71551P	Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552P	Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B	Pad, Front Seatback, B
71553C	Pad, Front Seatback, C
71554	Pad, Front Seatback, C
71555A	Pad, Front Seatback, D
71561B	Pad, Front Seatback, Upper
71564	Pad, Front Seatback, Side
71571	Pad, Front Seatback Silencer, A
71572A	Pad, Front Seatback Silencer, B
71581	Pad, Front Seatback Silencer
71581A	Pad, Front Seatback Corner, A
71581B	Pad, Front Seatback Corner, B
71581C	Pad, Front Seatback Corner, C
71581D	Pad, Front Seatback Corner, D
71610P	Spring Assy, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630P	Spring Assy, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640P	Spring Assy, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71811D	Shield, Front Seat Cushion, RH
71812A	Ring, Hog, Small (FOR FRONT SEAT)
71812D	Shield, Front Seat Cushion, LH
71813A	Shield, Front Seatback, RH
71814A	Shield, Front Seatback, LH
71838A	Protector, Front Seat Cushion Edge
71911A	Stay, Front Seat Headrest, RH
71912A	Stay, Front Seat Headrest, LH
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72011A	Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
72012	Adjuster Sub-assy, Front Seat, Outer LH
72031	Adjuster Assy, Front Seat Vertical
72071	Pump Sub-assy, Lumber Support
72110B	Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E	Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B	Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130	Track Assy, RH Seat, Inner
72137	Cover, Seat Track, Outer RH
72139	Spring, Seat Track Cover
72140	Track Assy, LH Seat, Inner
72157	Cover, Seat Track Bracket, Inner
72201	Handle Sub-assy, Seat Track
72301	Wire Sub-assy, Seat Track Equalizing
72365	Stopper, Side Support Adjusting
72457A	Knob, Seat Adjuster
72457C	Knob, Side Support Adjuster
72467	Pin, Vertical Adjuster
72496A	Knob, Vertical Seat Adjuster, NO.2
72520A	Cable, Adjuster TO Seat Track
72524	Handle, Reclining Adjuster Release
72537	Cover, Reclining Hinge Outer, RH
72538	Cover, Reclining Hinge Outer, LH
72551	Cover, Reclining Hinge, NO.1
72553	Cover, Reclining Pedal
72760	Adjuster Assy, Lumbar Support, RH
72791	Lever, Lumbar Support
72798	Cover, Lumbar Support Switch
73183	Guide, Front Seat Lap Belt, Inner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
