Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10
Seat Belt & Child Restraint Seat

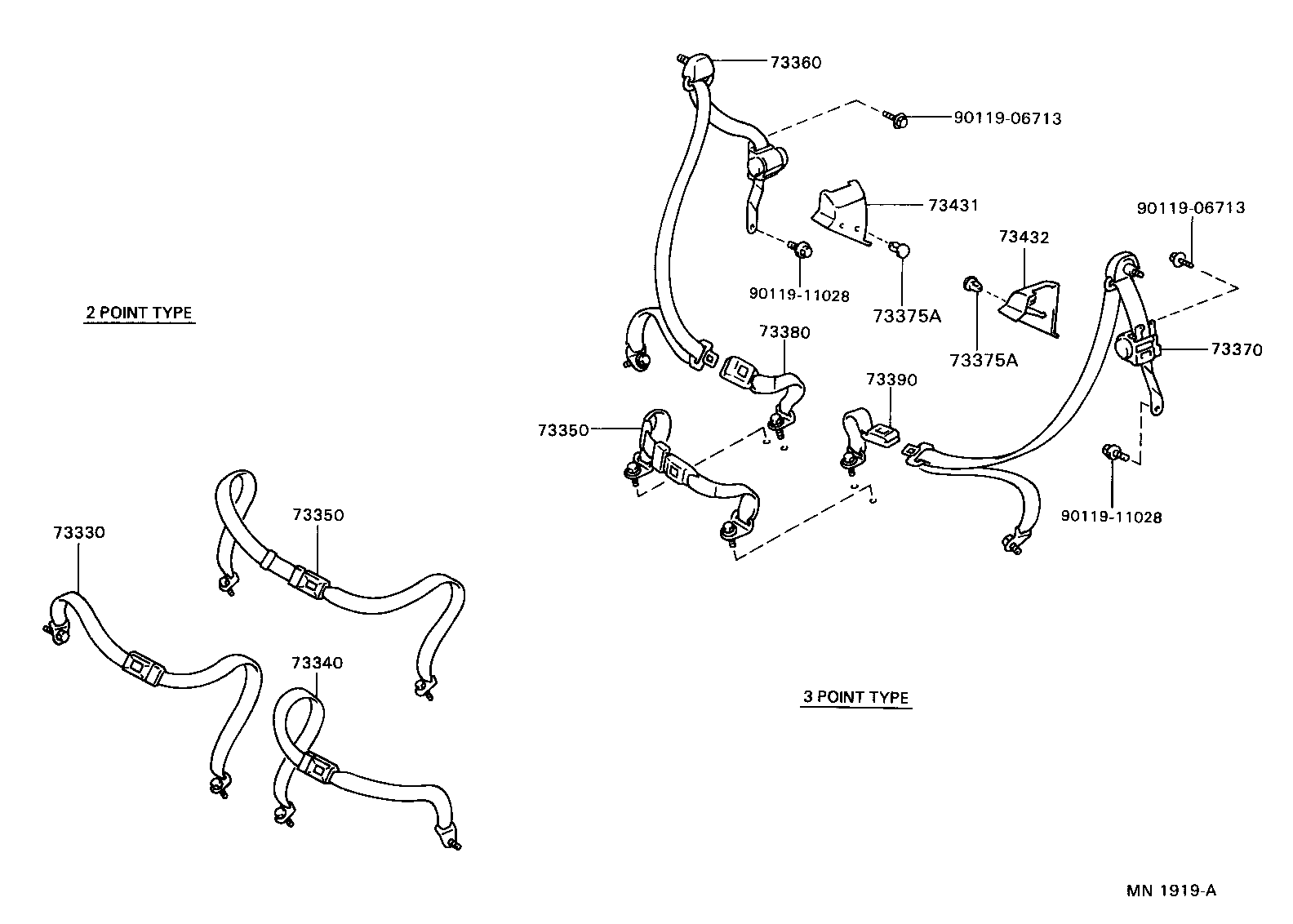

22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 72911 | Cover, Seat Belt Retractor |
| 73021 | Lever Sub-assy, Seat Belt Comfort, RH |
| 73022 | Lever Sub-assy, Seat Belt Comfort, LH |
| 73143 | Seal, Seat Belt Hole |
| 73149 | Link, Seat Belt Comfort Contorol |
| 73149A | Silencer, Seat Belt Comfort |
| 73181B | Guide, Front Seat Lap Belt, Outer |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73212A | Guide, Front Seat Lap Belt, Outer NO.1 |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73375A | Clip, Rear Seat Belt Cover |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73431 | Cover, Rear Seat Belt Retractor, RH |
| 73432 | Cover, Rear Seat Belt Retractor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
