Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10

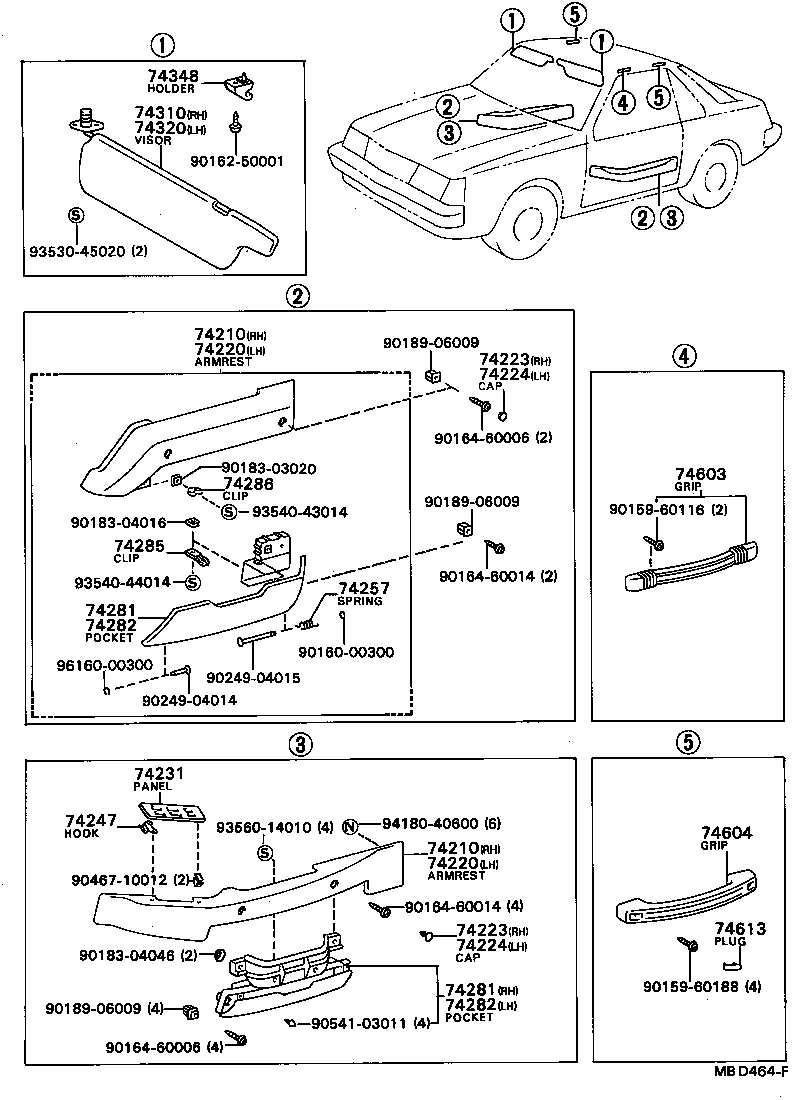

Armrest & Visor
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74223 | Cap, Door Armrest, RH |
| 74224 | Cap, Door Armrest, LH |
| 74225 | Cap, Door Armrest, Rear RH |
| 74226 | Cap, Door Armrest, Rear LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74235 | Panel, Rear Armrest Base, Upper |
| 74240 | Armrest Assy, Rear, LH |
| 74247 | Hook, Front Door Armrest Upper Base |
| 74257 | Spring, Armrest, NO.1 |
| 74281 | Pocket, Door Armrest, RH |
| 74282 | Pocket, Door Armrest, LH |
| 74285 | Clip, Door Armrest Pocket |
| 74286 | Clip, Door Armrest Pocket, NO.2 |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74603B | Clip (FOR ASSIST GRIP) |
| 74604 | Grip Sub-assy, Assist, Rear |
| 74613 | Plug, Assist Grip |
| 74810 | Pull Assy, Door, Inside |
| 74810C | Plug, Door Pull Handle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
