Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

17 part groups · 3 illustrations

Illustrations

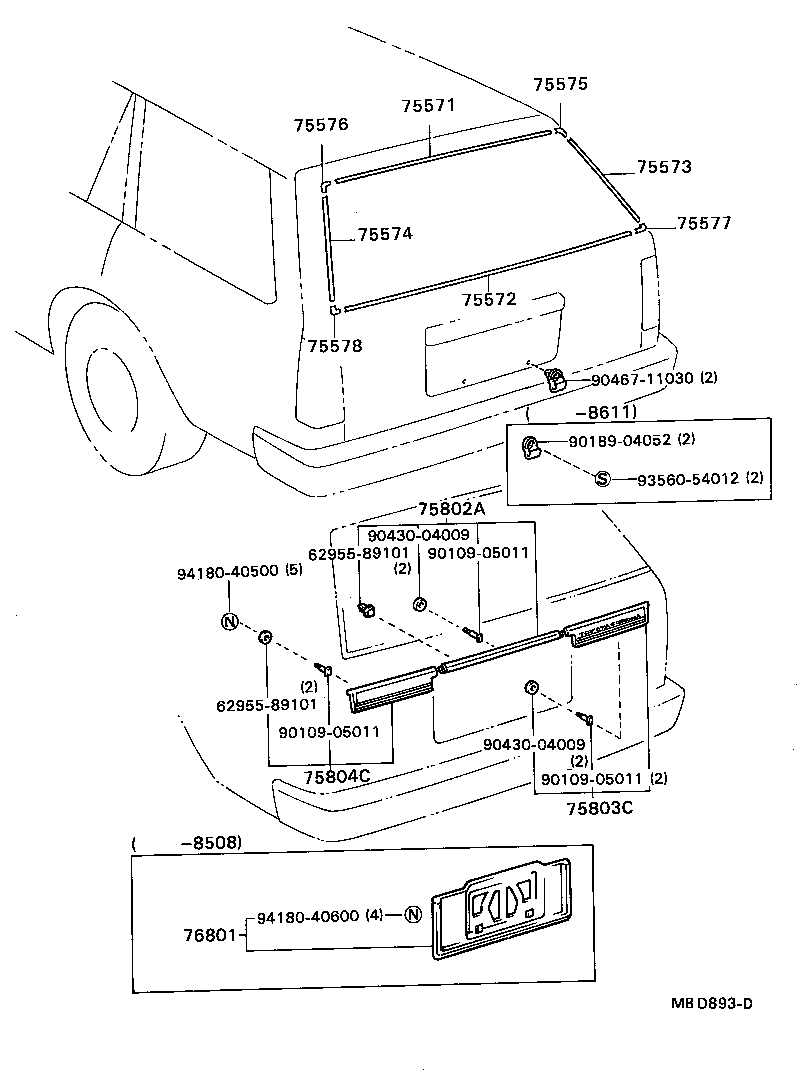

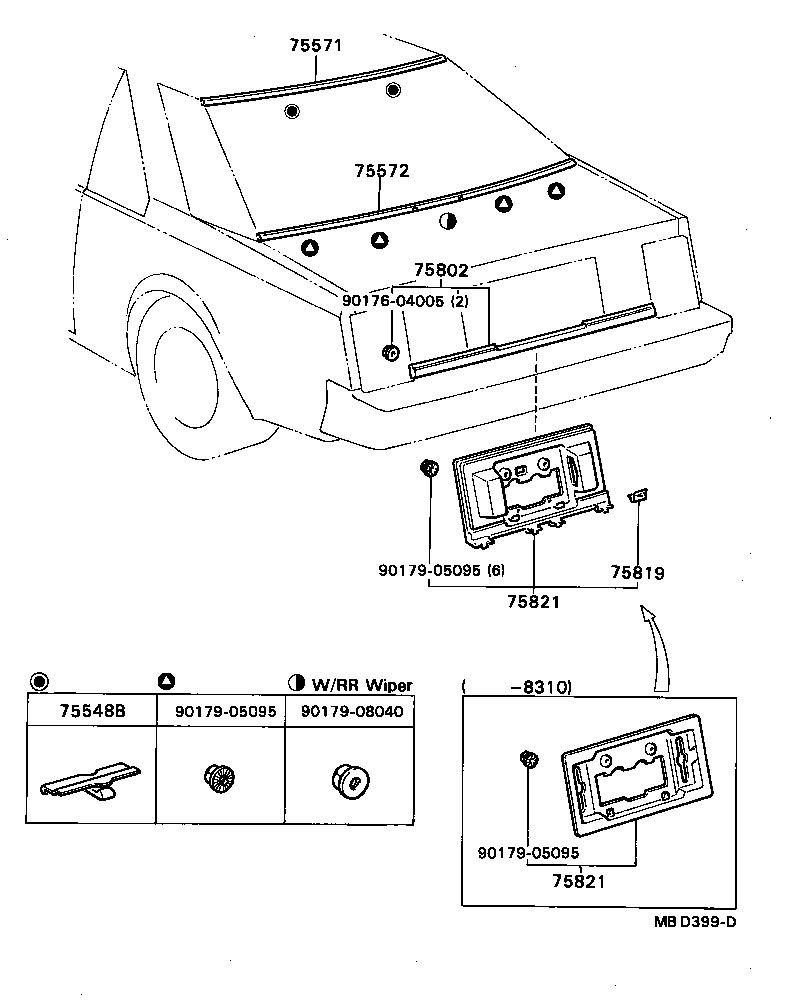

Figure MBD892C MBD892C 1982-01 → — Figure MBD399D MBD399D 1982-01 → 1985-08 Figure MBD893D MBD893D 1982-01 → 1987-12

Part groups

PNCDescription
75082 Panel Sub-assy, Lower Back Finish, Center
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75802 Moulding Sub-assy, Luggage Compartment Door, Lower
75802A Moulding Sub-assy, Back Door, Outside Upper
75803C Moulding Sub-assy, Back Door, Outside RH
75804C Moulding Sub-assy, Back Door, Outside LH
75819 Clip, Luggage Compartment Door Moulding
75821 Moulding, Luggage Compartment Door Back
76801 Garnish Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
