Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10
Body Stripe

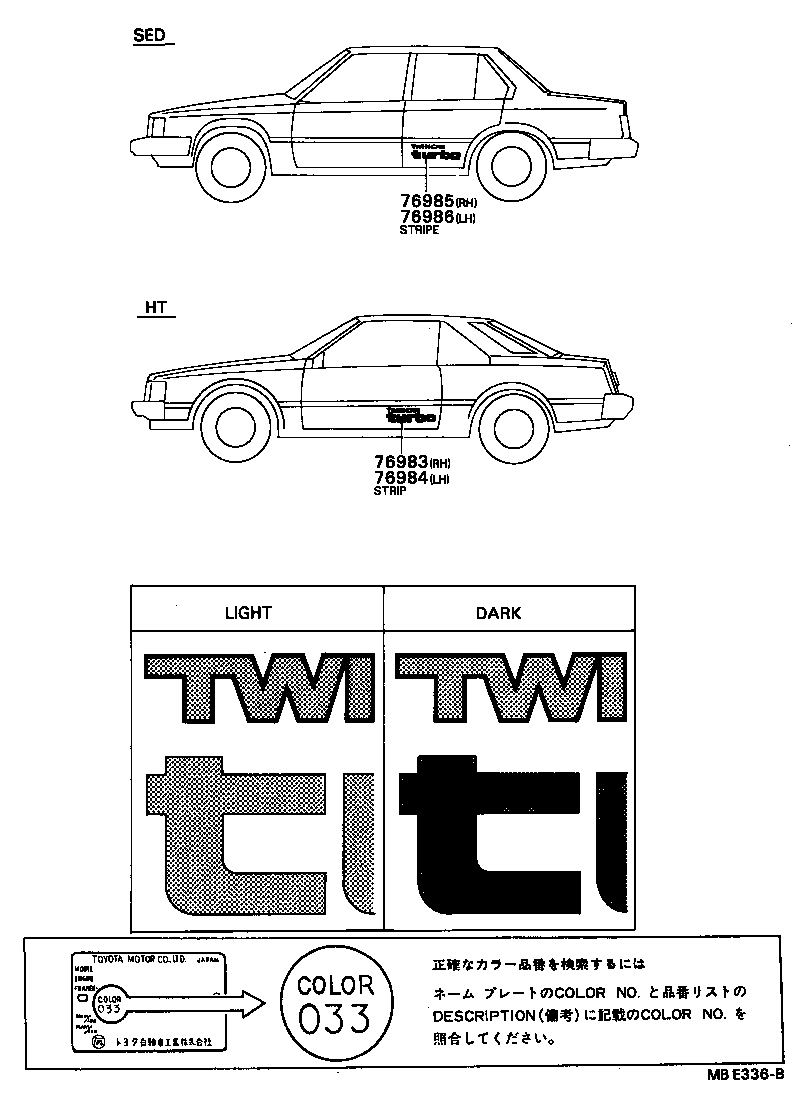

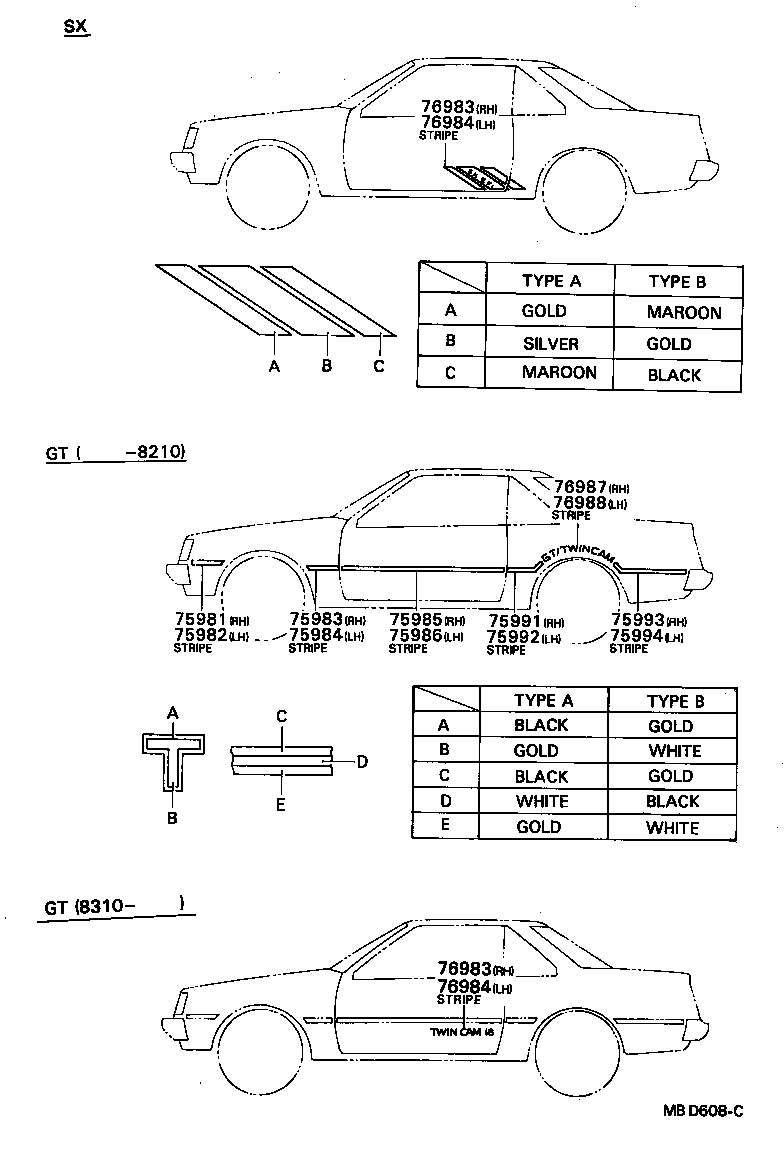

18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75981 | Stripe, Front Fender, RH NO.1 |
| 75982 | Stripe, Front Fender, LH NO.1 |
| 75983 | Stripe, Front Fender, RH NO.2 |
| 75984 | Stripe, Front Fender, LH NO.2 |
| 75985 | Stripe, Front Door, RH |
| 75986 | Stripe, Front Door, LH |
| 75987 | Stripe, Rear Door, RH |
| 75988 | Stripe, Rear Door, LH |
| 75991 | Stripe, Quarter, RH NO.1 |
| 75992 | Stripe, Quarter, LH NO.1 |
| 75993 | Stripe, Quarter, RH NO.2 |
| 75994 | Stripe, Quarter, LH NO.2 |
| 76983 | Stripe, Front Door Mark, RH |
| 76984 | Stripe, Front Door Mark, LH |
| 76985 | Stripe, Rear Door Mark, RH |
| 76986 | Stripe, Rear Door Mark, LH |
| 76987 | Stripe, Quarter Mark, RH |
| 76988 | Stripe, Quarter Mark, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
