Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 4 illustrations

Illustrations

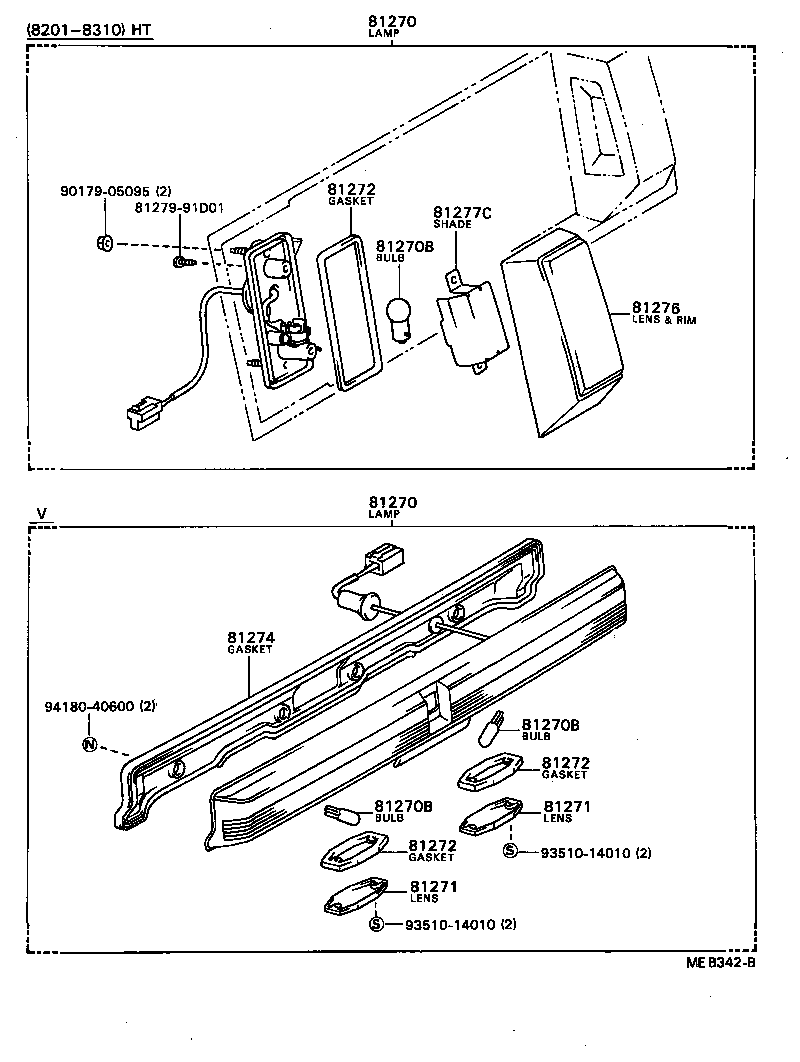

Figure MEB341F MEB341F 1982-01 → — Figure MEB341F MEB341F 1983-10 → 1985-08 Figure MEB342B MEB342B 1982-01 → 1983-10 Figure MEB342B MEB342B 1982-01 → 1987-12

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81276 Rim, License Plate Lamp
81277C Shade, License Plate Lamp, RH
81278 Cover, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
