Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10

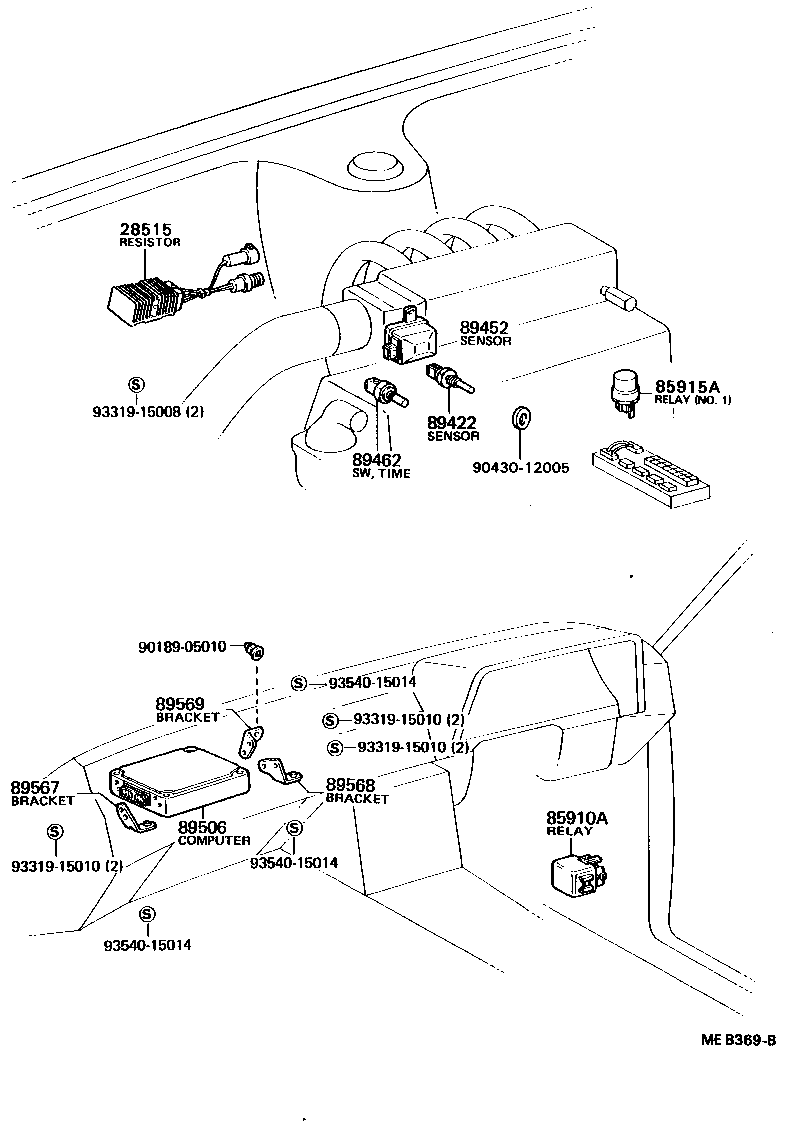

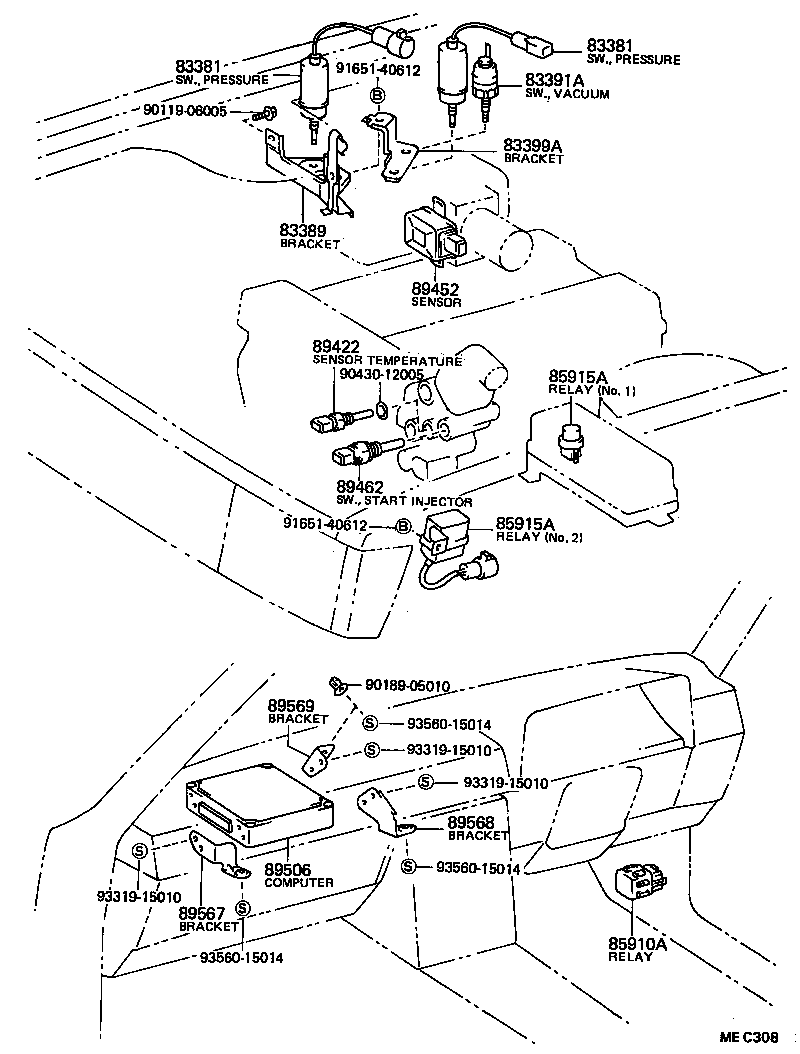

Electronic Fuel Injection System
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28515 | Resistor, Solenoid |
| 83381 | Switch, Pressure |
| 83389 | Bracket, Pressure Switch |
| 83391A | Switch, Vacuum |
| 83399A | Bracket, Vacuum Switch |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85915A | Relay, Main |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89462 | Switch, Start Injector Time |
| 89506 | Computer Set, Fuel Injection |
| 89567 | Bracket, Fuel Injection Computer |
| 89568 | Bracket, Fuel Injection Computer |
| 89569 | Bracket, Fuel Injection Computer |
| 89681 | Computer Assy, Idle-up |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
