Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10

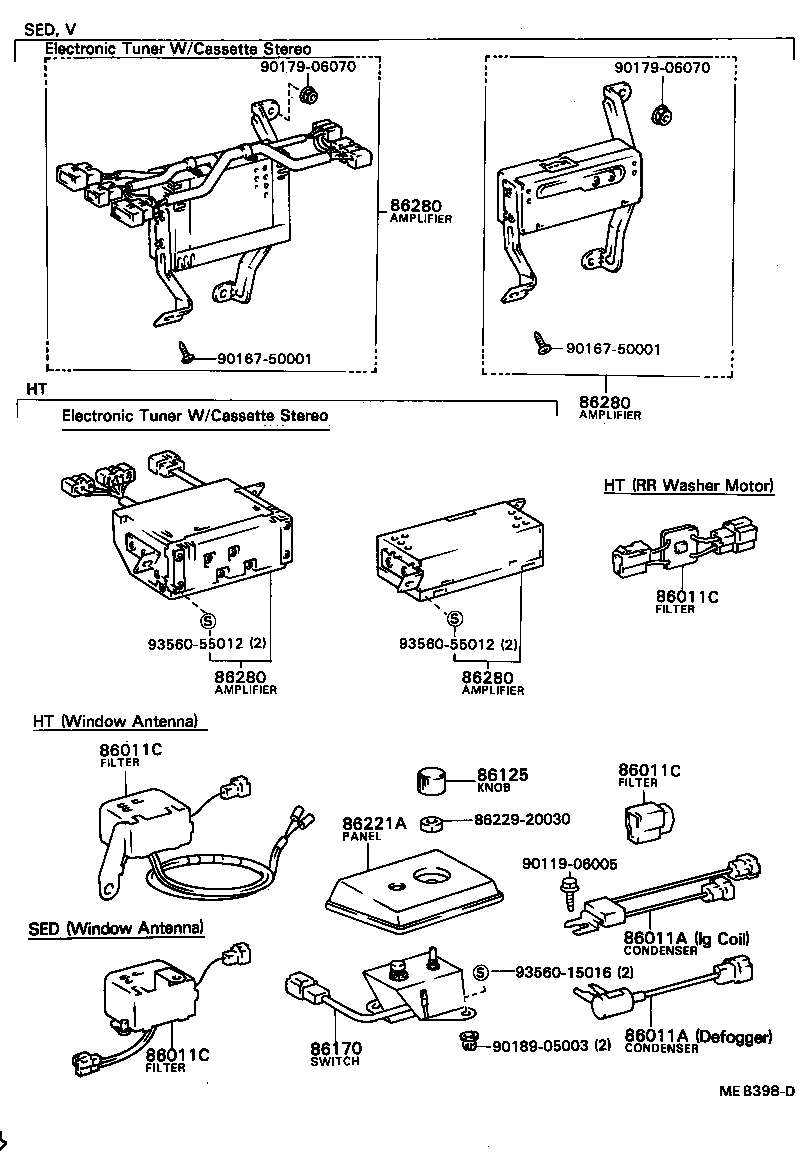

Radio Receiver & Amplifier & Condenser
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86012 | Parts Set, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86125 | Knob, Radio Receiver Switch |
| 86170 | Switch And Volume Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86221A | Panel, Radio Receiver |
| 86251 | Wiring, Amplifier Microphone |
| 86260 | Tape Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
