Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 2 illustrations

Illustrations

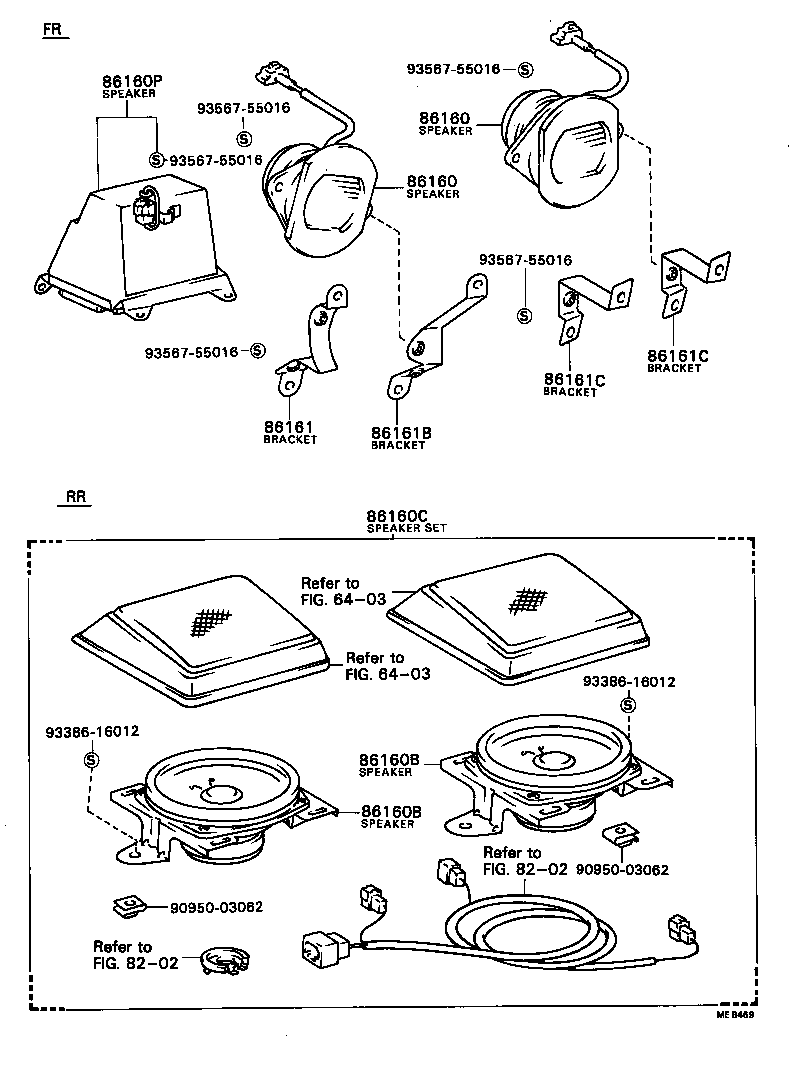

Figure MEB381A MEB381A 1982-01 → — Figure MEB469 MEB469 1982-01 → 1985-08

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86160P Speaker Assy, Front NO.2
86161 Bracket, Speaker, Front NO.1
86161B Bracket, Speaker, Front NO.2
86161C Bracket, Speaker, Front NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
