Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

20 part groups · 7 illustrations

Illustrations

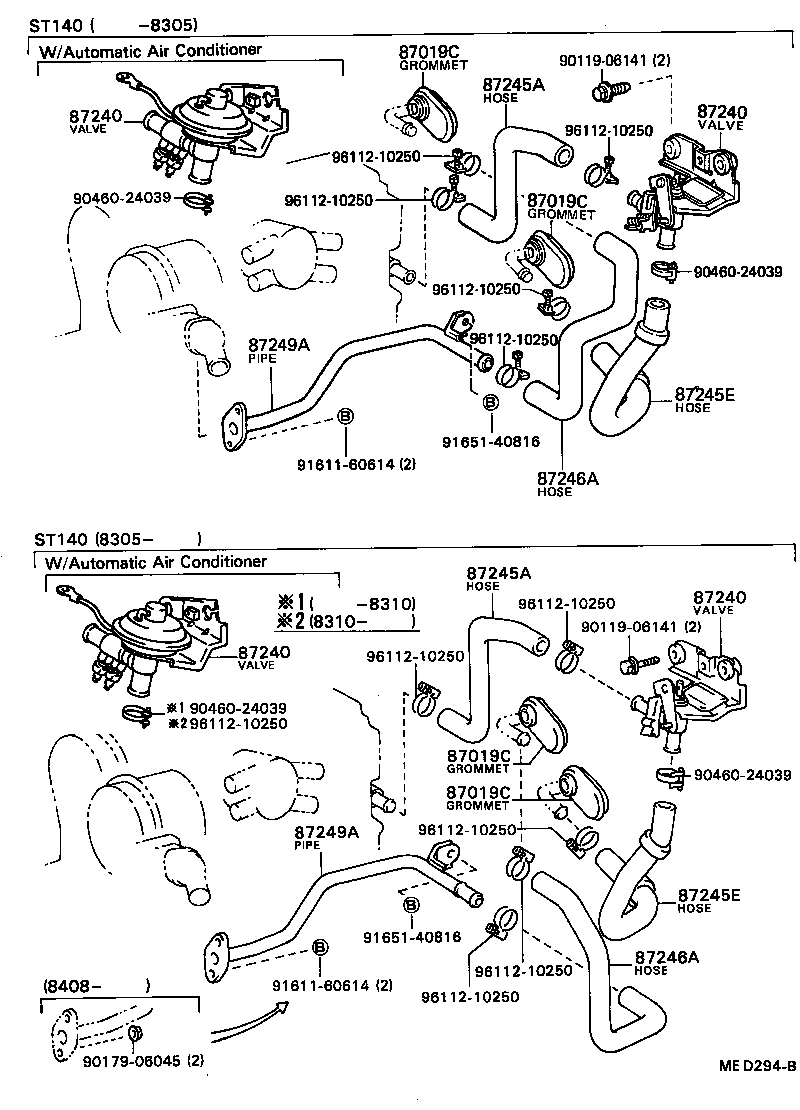

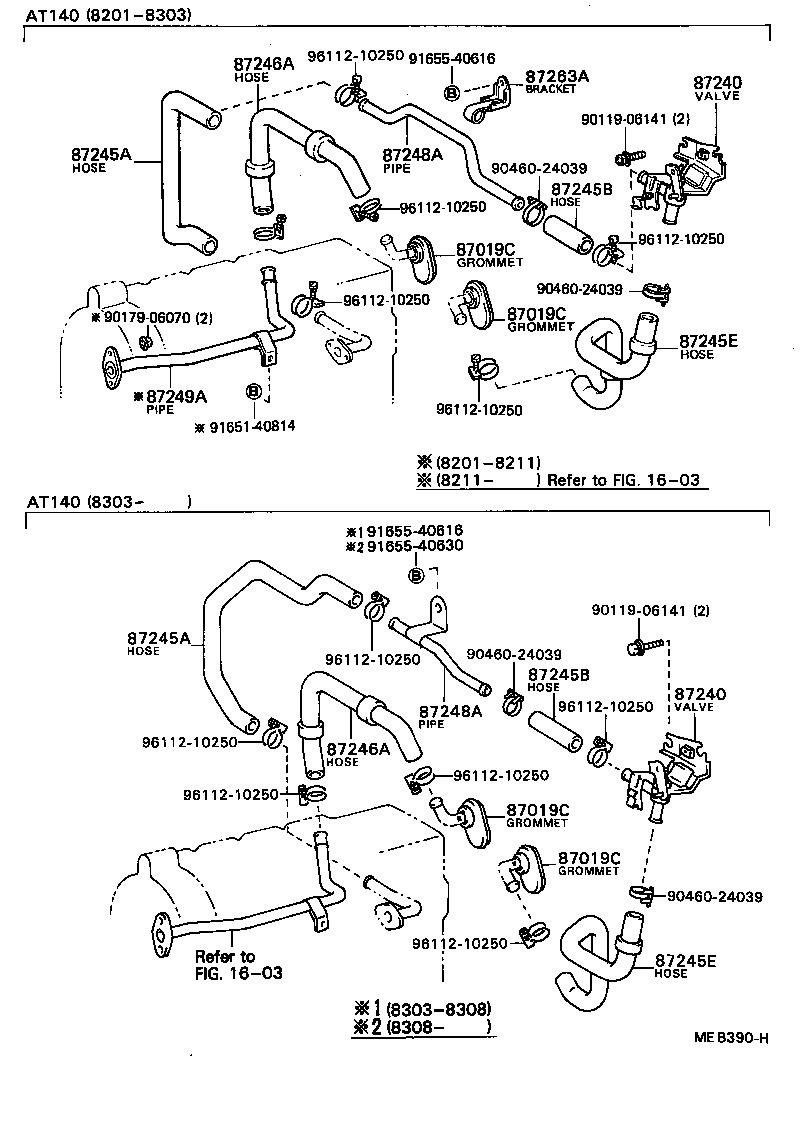

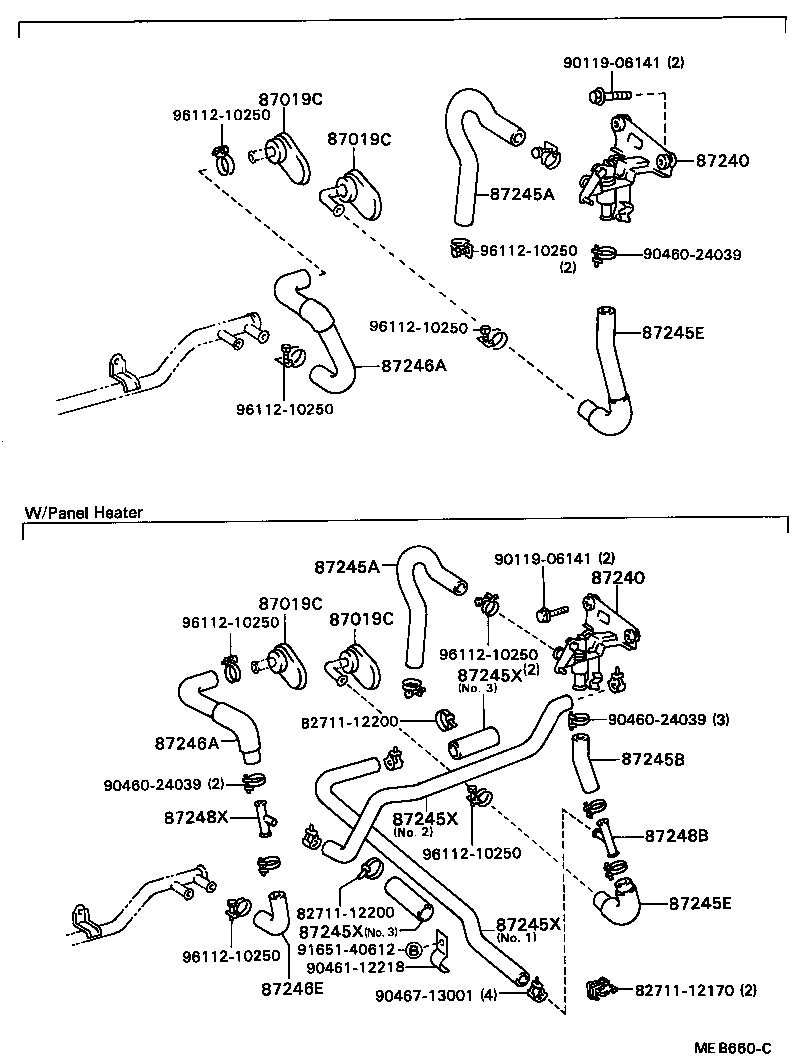

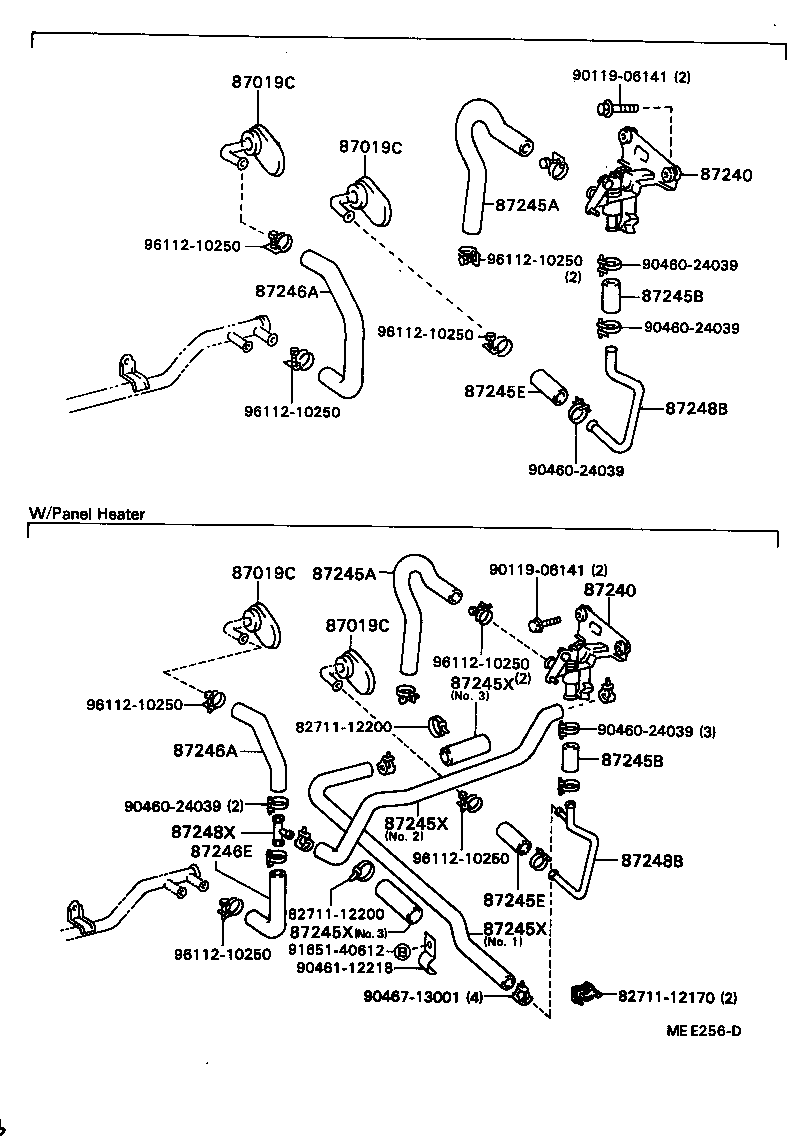

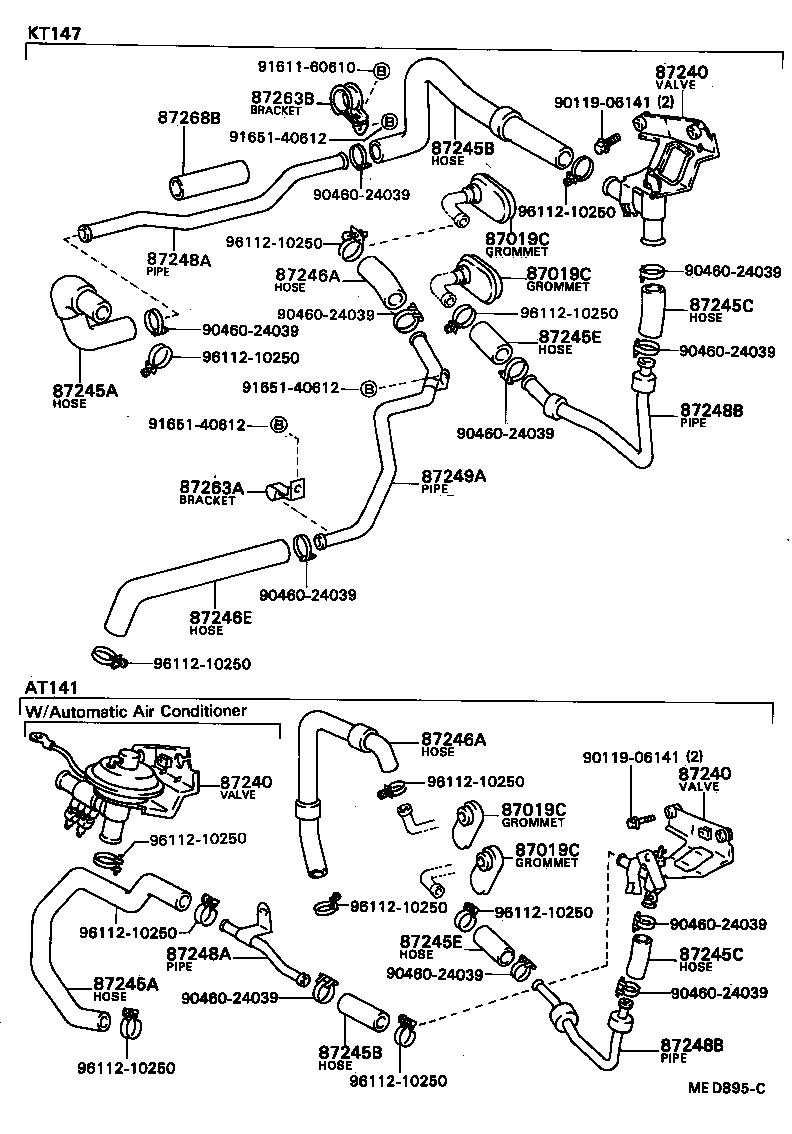

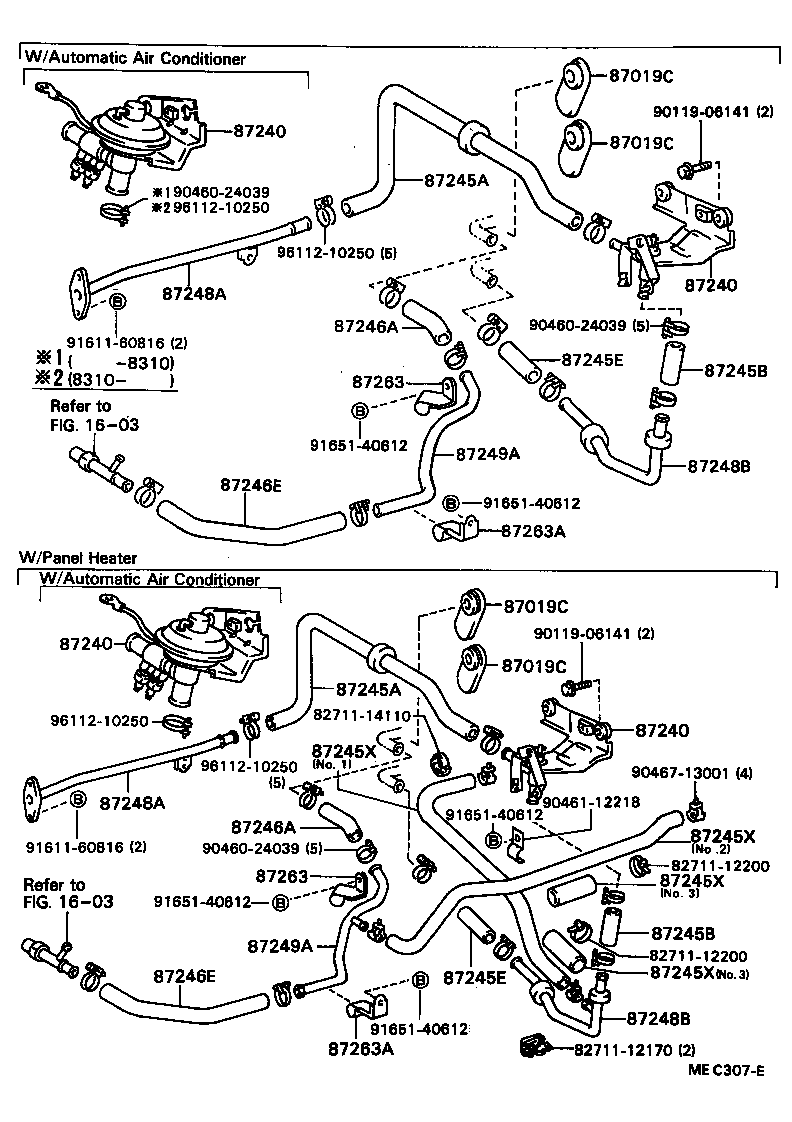

Figure MEB389F MEB389F 1982-01 → 1985-08 Figure MEB390H MEB390H 1982-01 → 1987-12 Figure MED895C MED895C 1983-10 → 1987-12 Figure MED294B MED294B 1982-01 → 1987-12 Figure MEC307E MEC307E 1982-01 → 1991-11 Figure MEE256D MEE256D 1982-09 → 1986-01 Figure MEB660C MEB660C 1986-01 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87263 Bracket, Heater Water Pipe, NO.1
87263A Bracket, Heater Water Pipe, NO.2
87263B Bracket, Heater Water Pipe, NO.3
87268B Protector, Heater Water Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
