Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

16 part groups · 6 illustrations

Illustrations

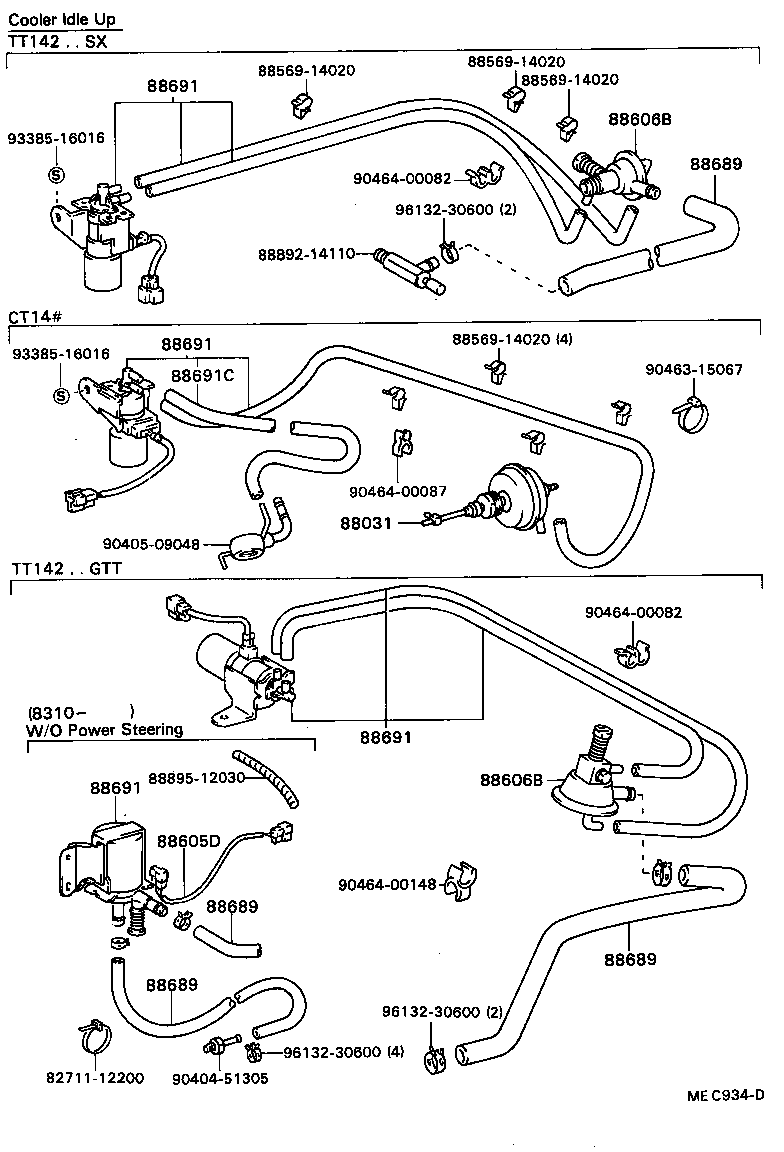

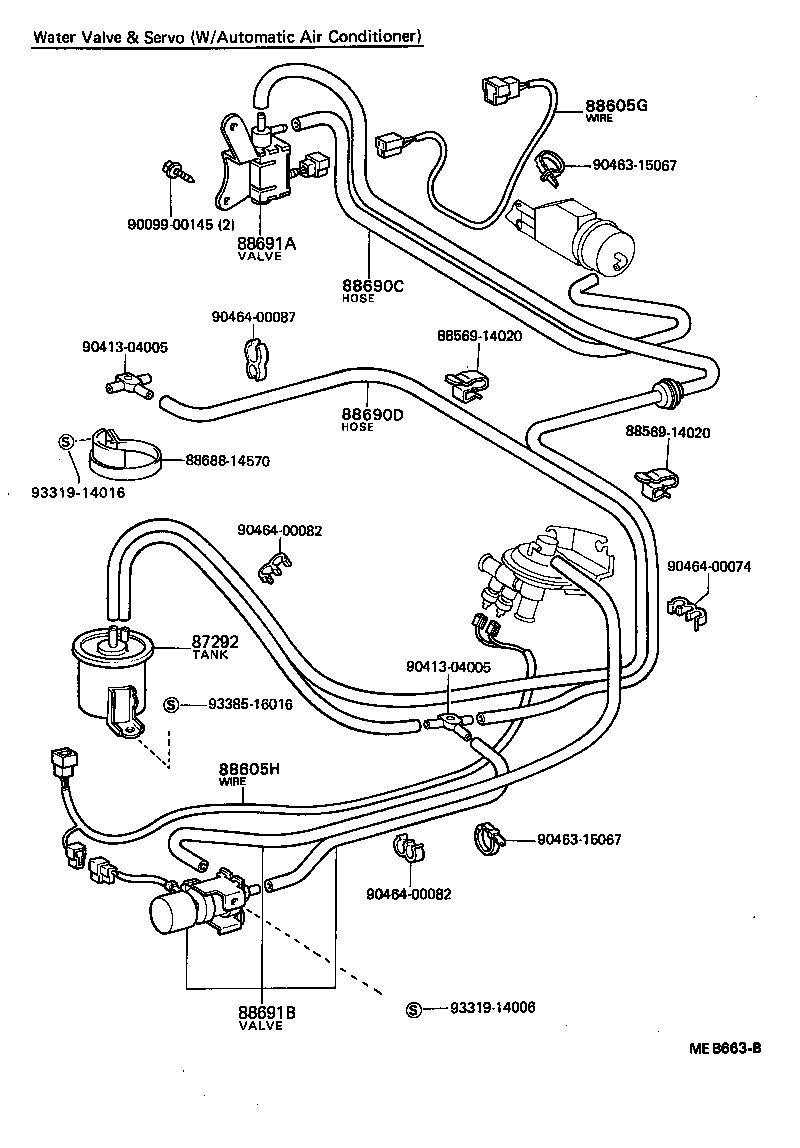

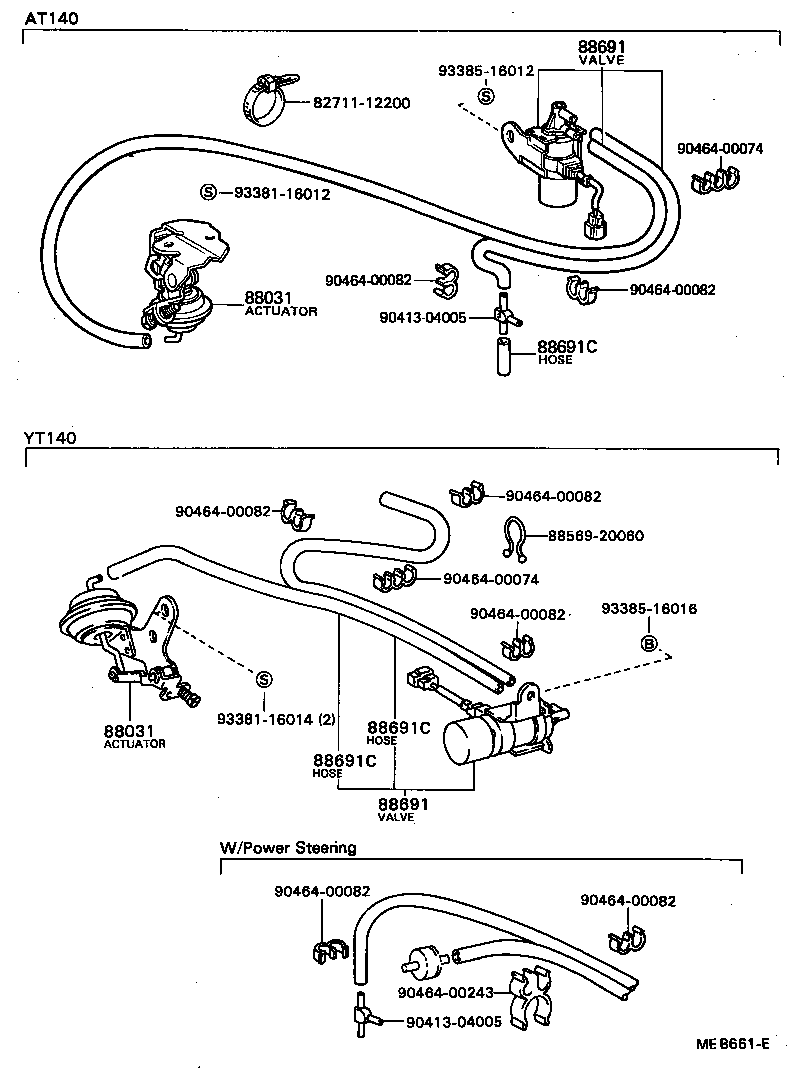

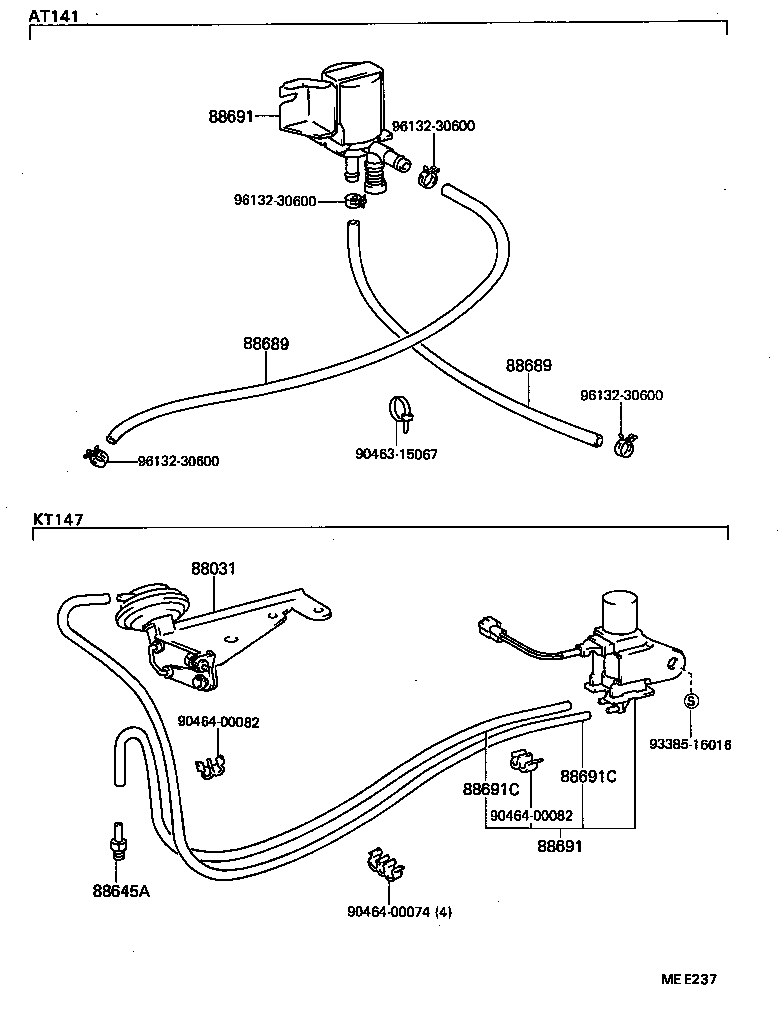

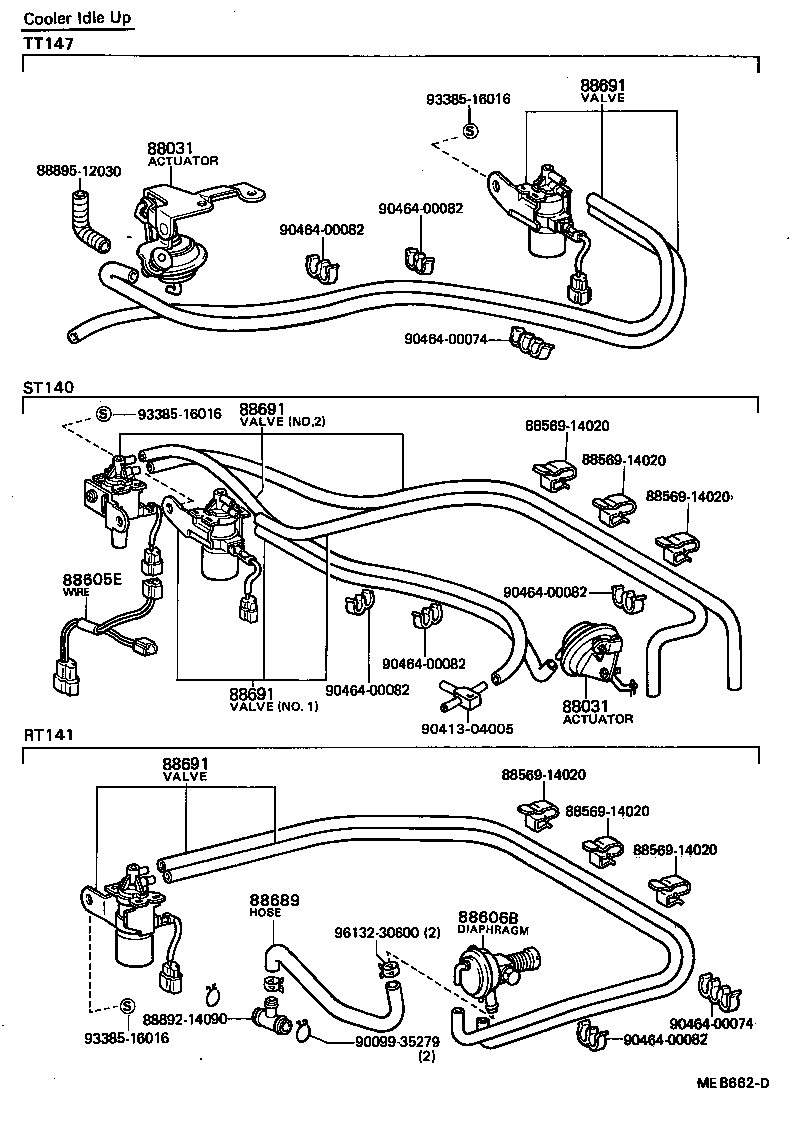

Figure MEB391B MEB391B 1982-01 → 1991-11 Figure MEB661E MEB661E 1982-01 → — Figure MEC934D MEC934D 1982-01 → 1991-11 Figure MEB662D MEB662D 1982-01 → 1987-12 Figure MEE237 MEE237 1983-10 → 1987-12 Figure MEB663B MEB663B 1982-01 → 1985-08

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88605D Wire, Air Conditioner
88605E Wire, Air Conditioner, NO.1
88605G Wire, Air Conditioner, NO.2
88605H Wire, Air Conditioner, NO.3
88606B Diaphragm Sub-assy, Cooler
88645A Union (FOR IDLE UP DEVICE)
88689 Hose, Damper Control Diaphragm Vacuum
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691S Clamp (FOR IDLE UP DIVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
