Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 12 illustrations

Illustrations

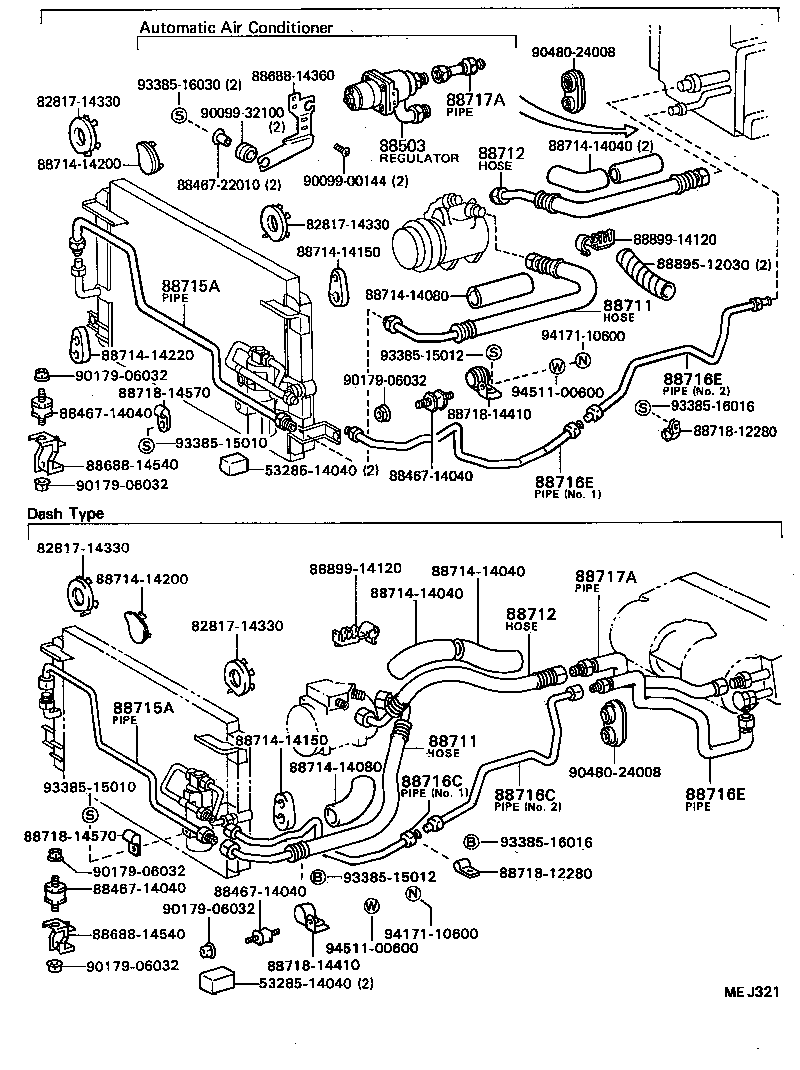

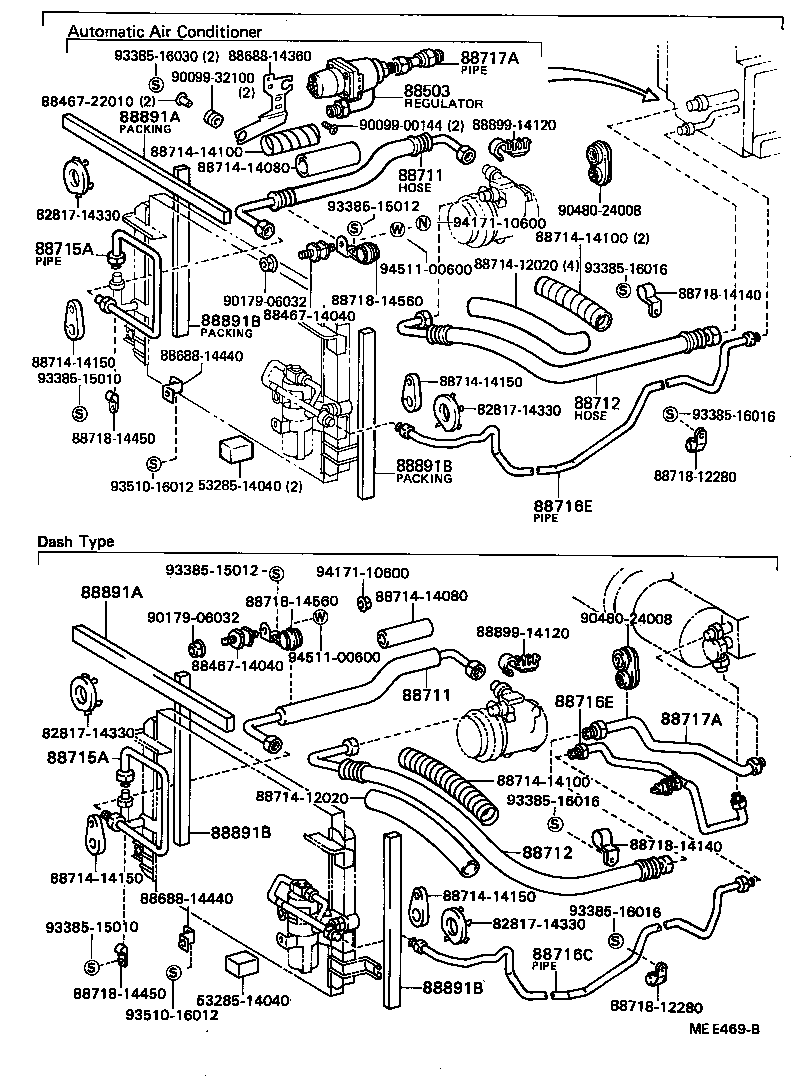

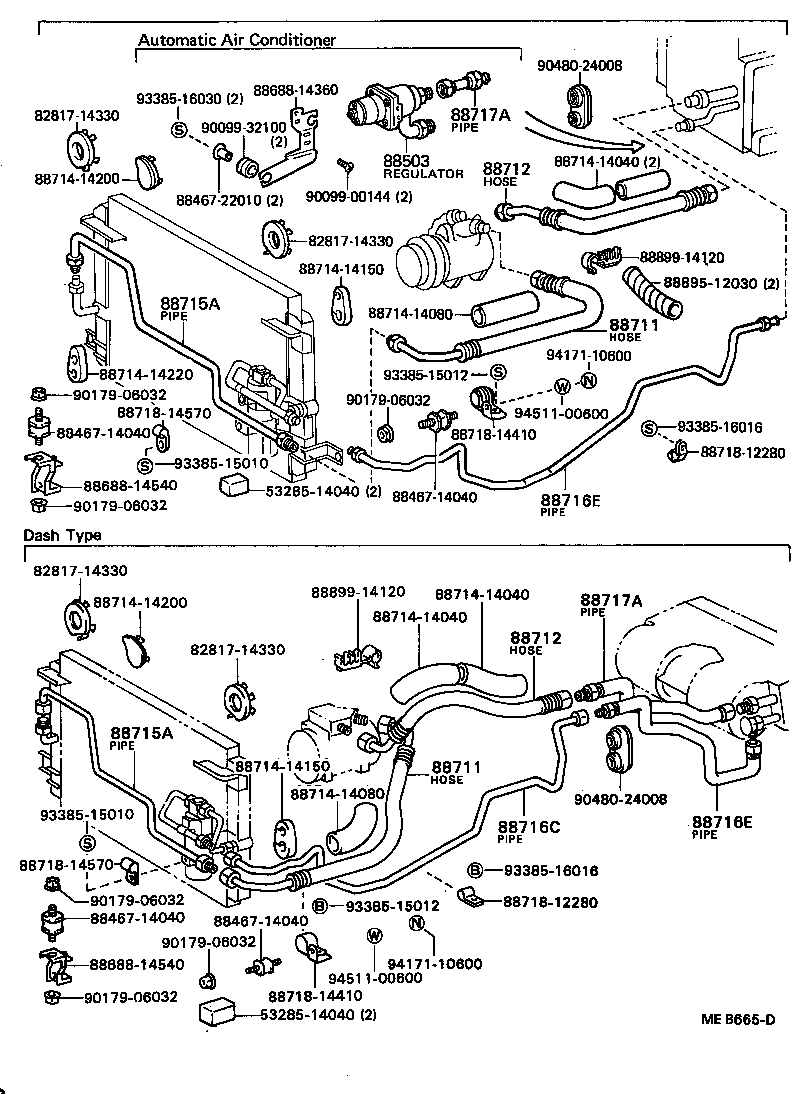

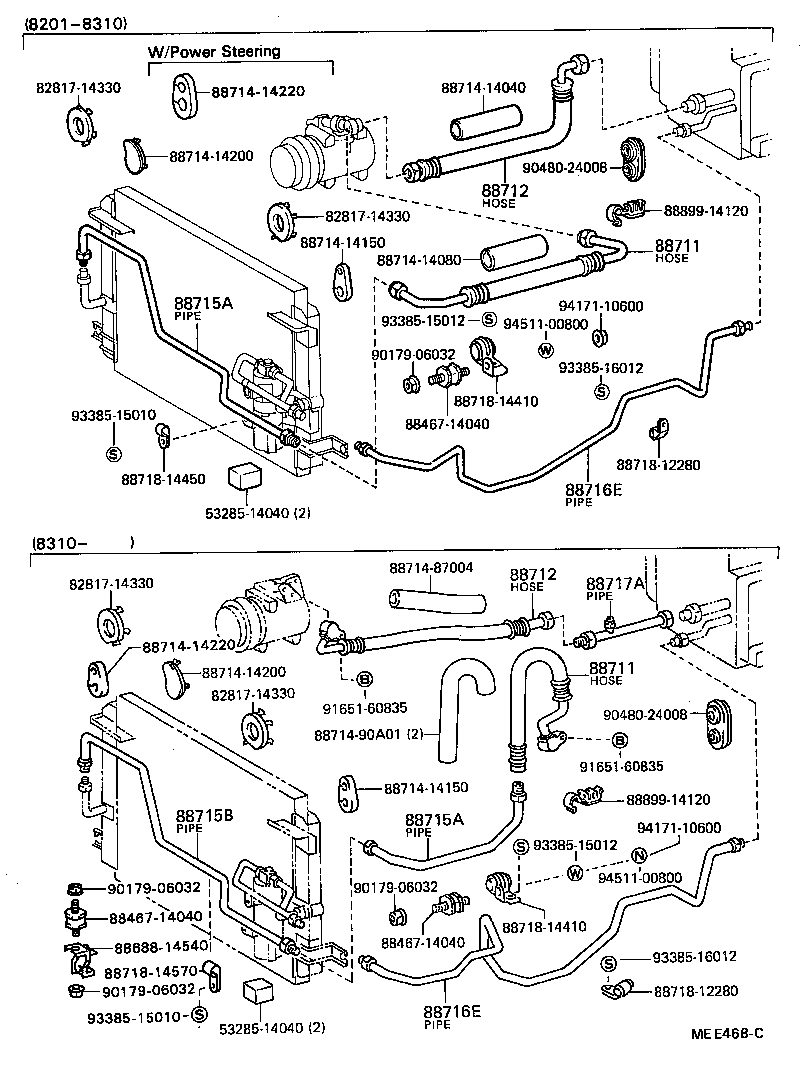

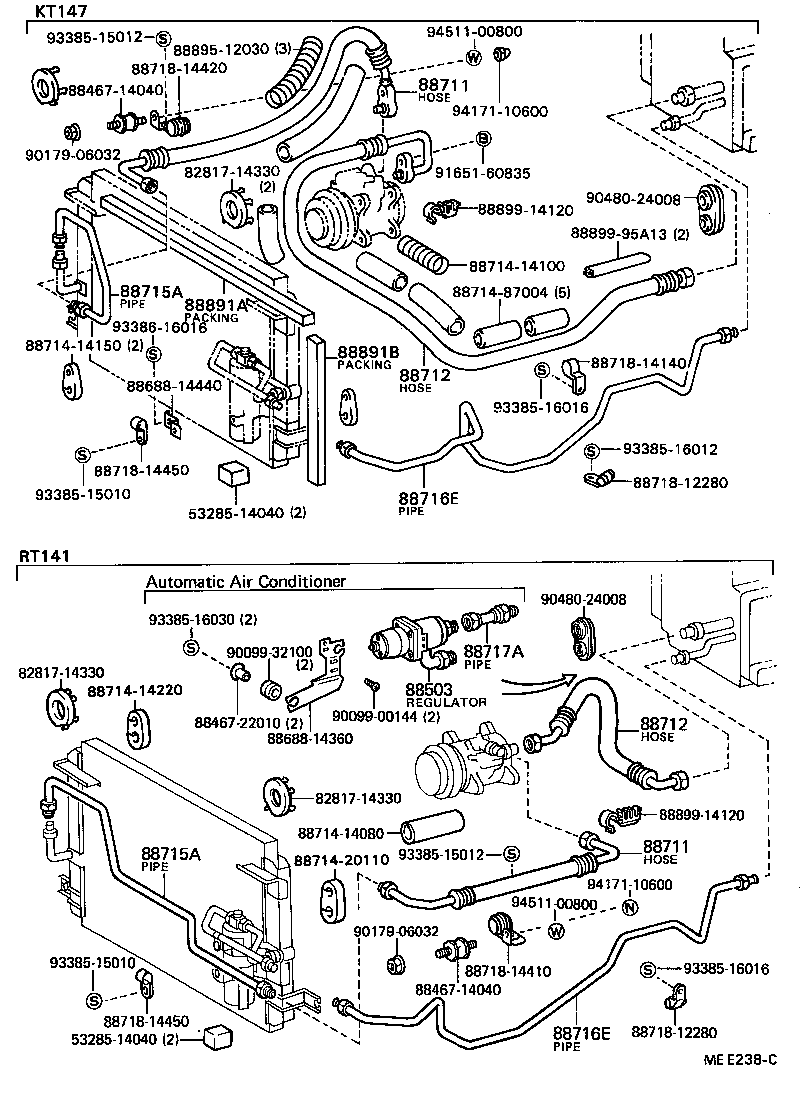

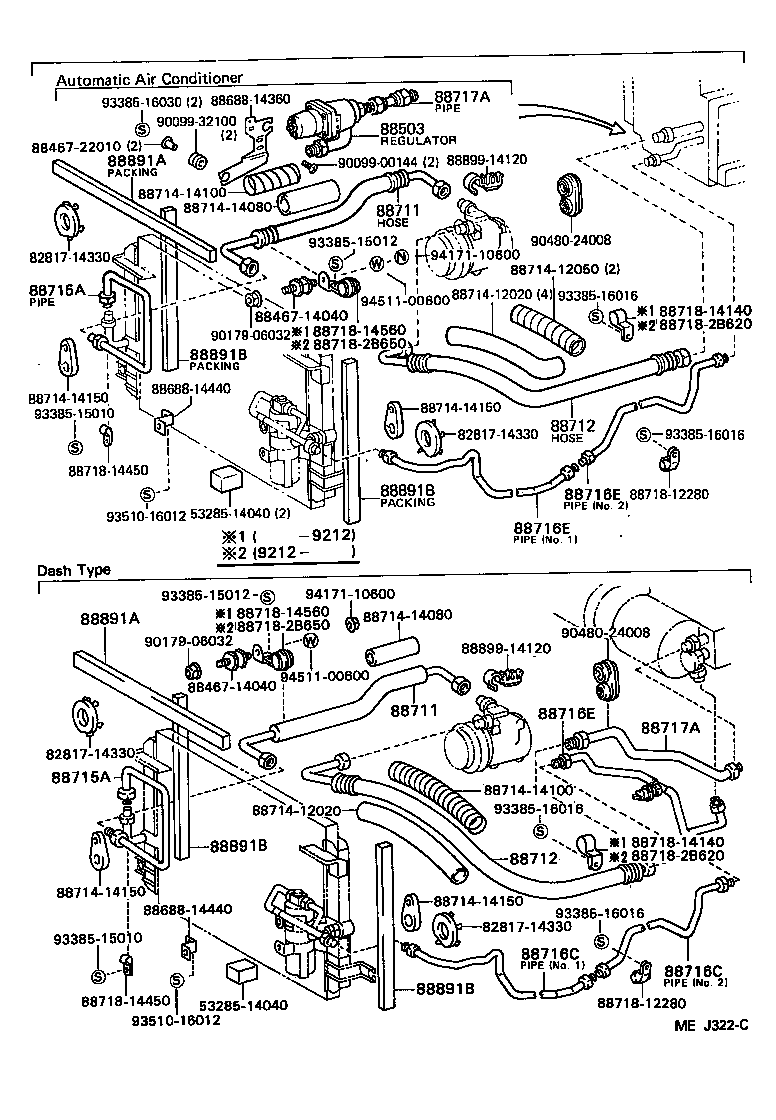

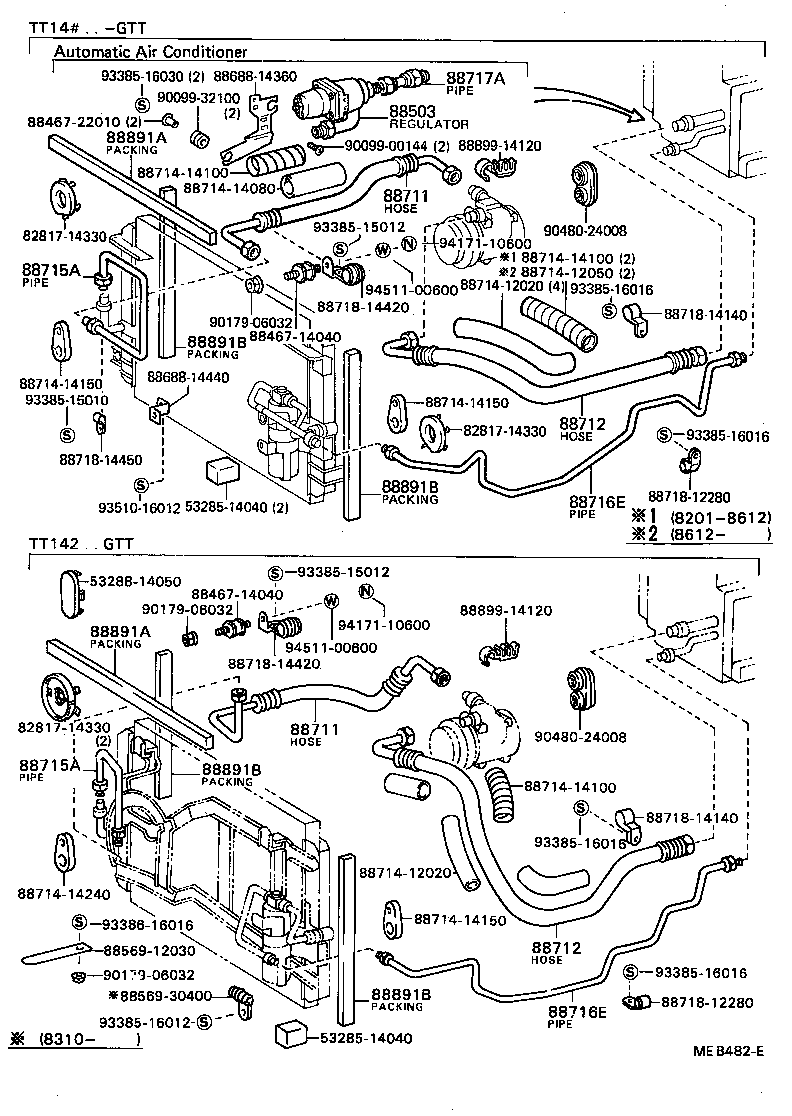

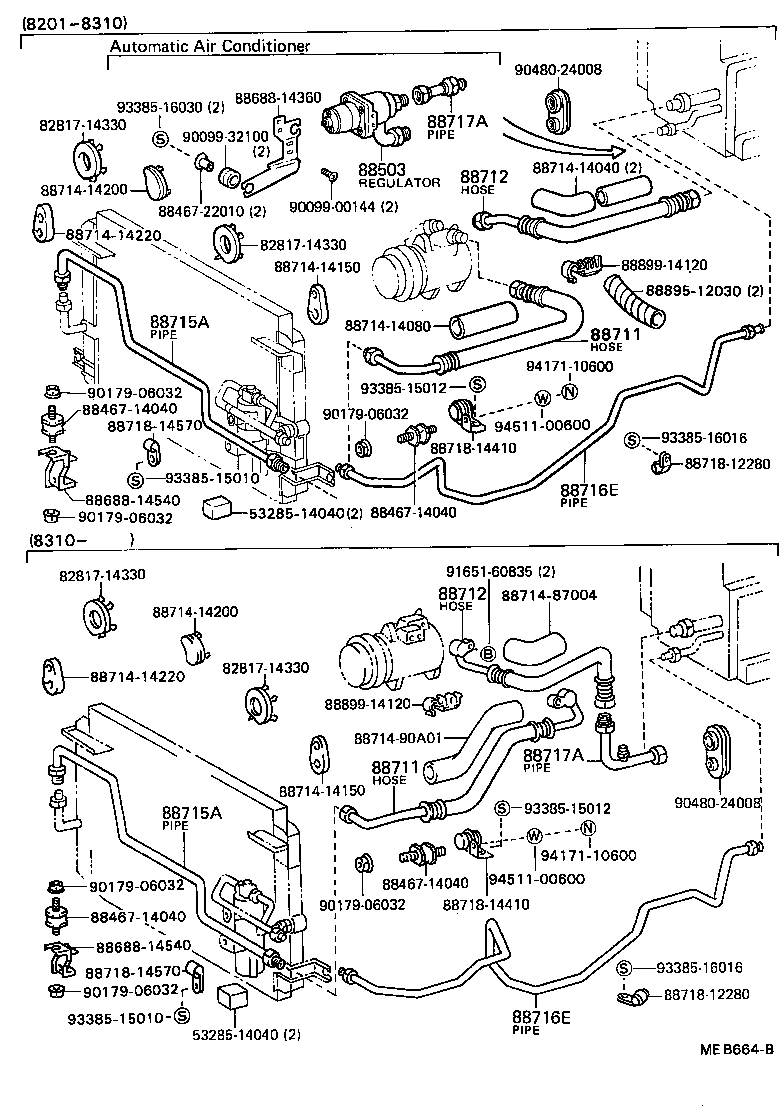

Figure 873188 873188 1982-01 → — Figure MEE238C MEE238C 1982-01 → 1982-10 Figure MEE238C MEE238C 1983-10 → 1987-12 Figure MEB482E MEB482E 1982-01 → 1985-08 Figure MEE468C MEE468C 1982-01 → 1987-12 Figure MEB664B MEB664B 1982-01 → 1987-12 Figure MEB665D MEB665D 1982-01 → 1986-12 Figure MEB665D MEB665D 1986-12 → 1987-12 Figure MEJ321 MEJ321 1986-12 → 1991-11 Figure MEE469B MEE469B 1982-09 → 1986-12 Figure MEJ322C MEJ322C 1986-12 → — Figure MEX254A MEX254A 1992-12 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
