Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 3 illustrations

Illustrations

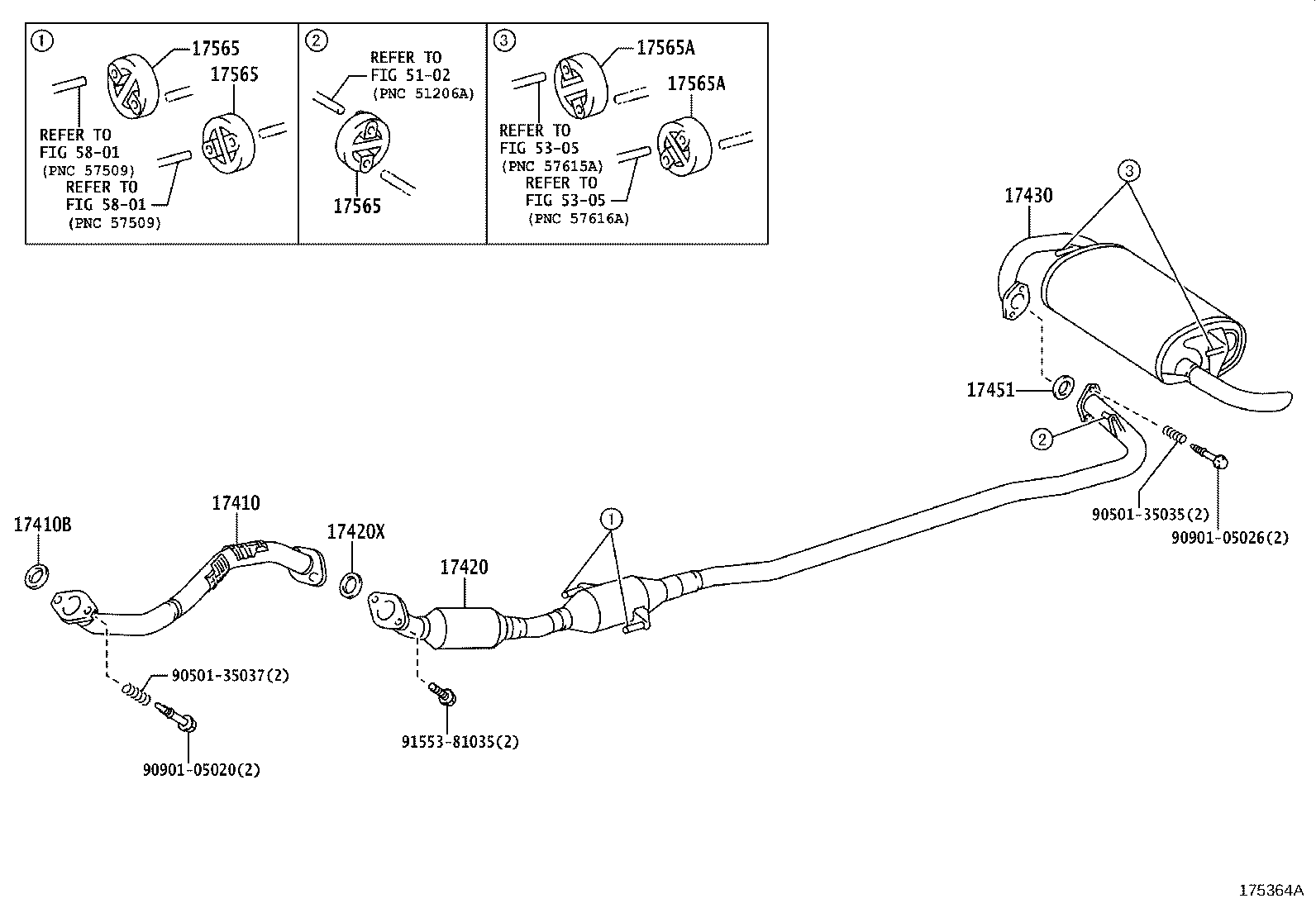

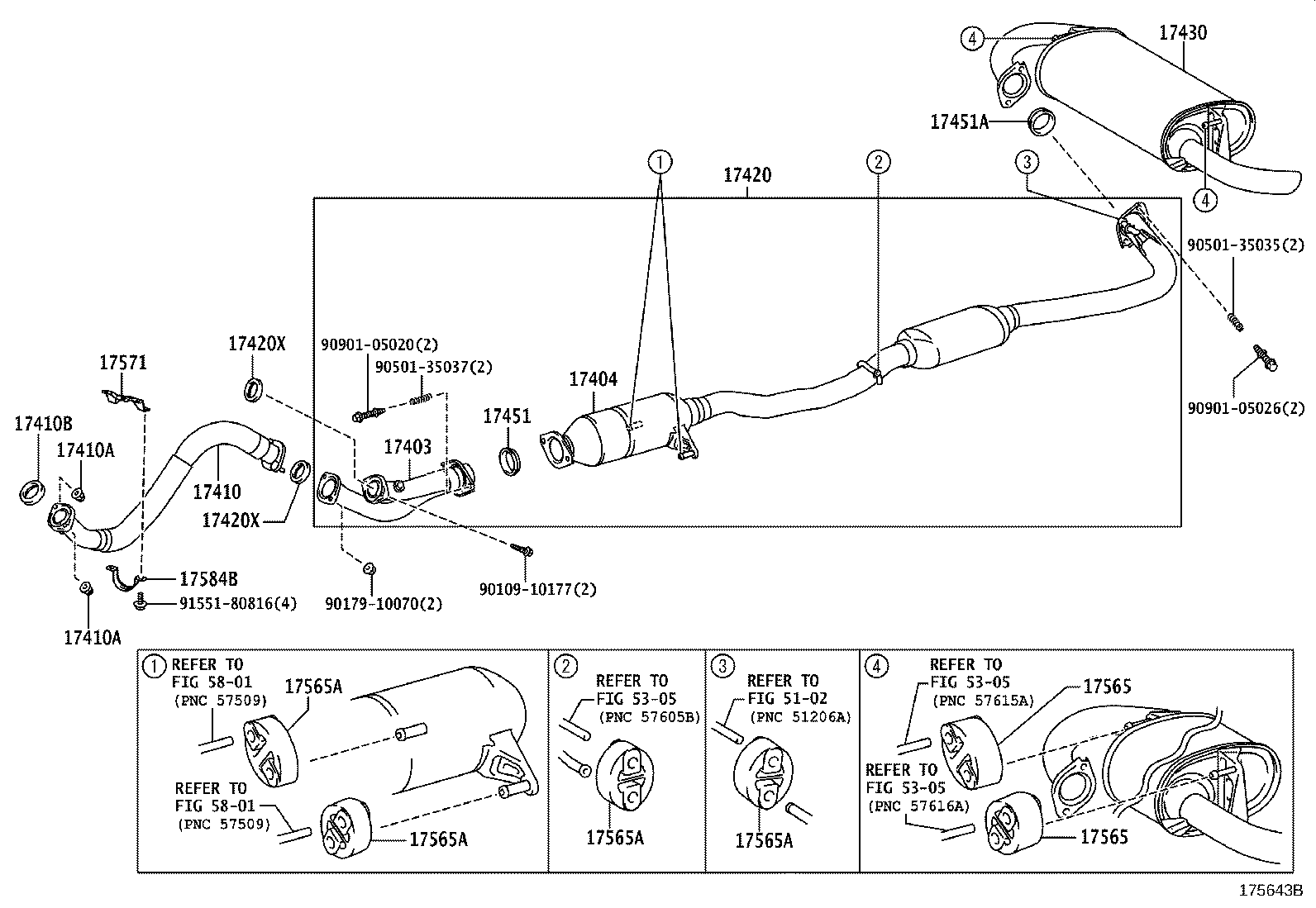

Figure 175363A 175363A 2006-12 → — Figure 175364A 175364A 2006-12 → — Figure 175643B 175643B 2007-08 → —

Part groups

PNCDescription
17403 Pipe Sub-assy, Exhaust, Front NO.3
17404 Pipe Sub-assy, Exhaust Forked
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17584B Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
