Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

26 part groups · 3 illustrations

Illustrations

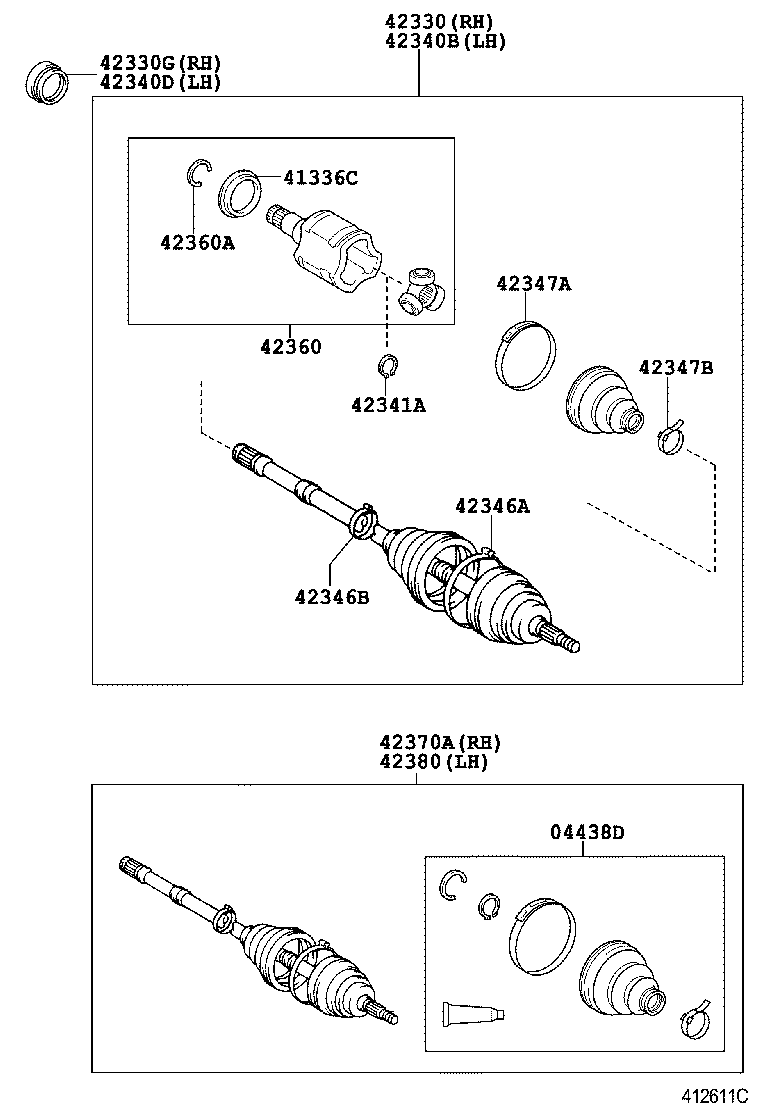

Figure 412610E 412610E 2006-12 → — Figure 412611C 412611C 2006-12 → — Figure 412613B 412613B 2006-12 → —

Part groups

PNCDescription
04438D Boot Kit, Rear Drive Shaft Inboard Joint
41336C Cover, Dust(FOR REAR DRIVE SHAFT)
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42330G Oil Seal, Rear Drive Shaft, RH
42340B Shaft Assy, Rear Drive, LH
42340D Oil Seal, Rear Drive Shaft, LH
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42346A Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347A Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360 Joint Assy, Rear Drive Shaft Inboard
42360A Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT)
42370A Shaft Assy, Rear Drive Outboard Joint, RH
42380 Shaft Assy, Rear Drive Outboard Joint, LH
42410 Hub & Bearing Assy, Rear Axle, RH
42421E Bolt (FOR REAR AXLE BEARING CASE RH)
42422A Bolt (FOR REAR AXLE BEARING CASE LH)
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
