Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

17 part groups · 4 illustrations

Illustrations

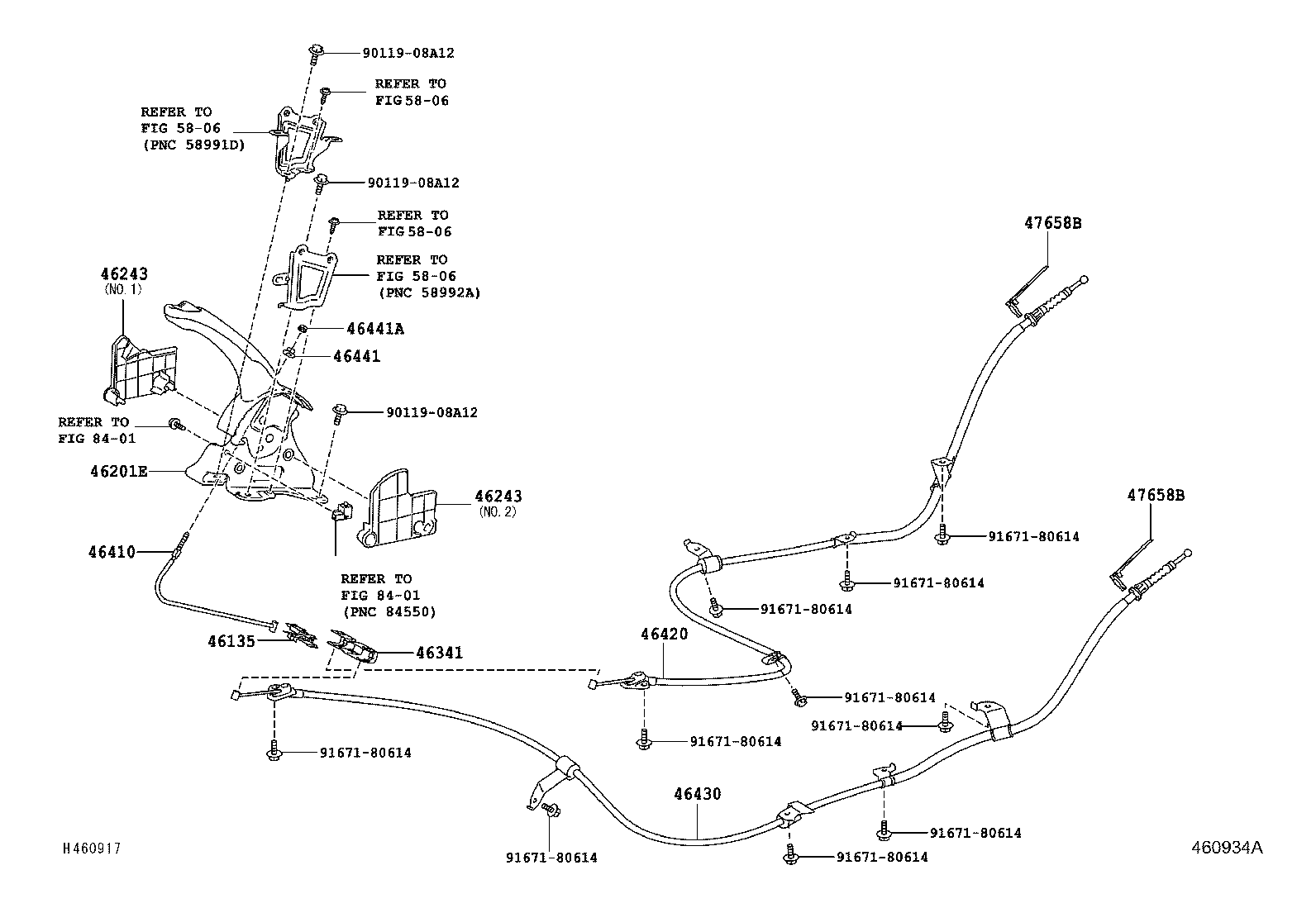

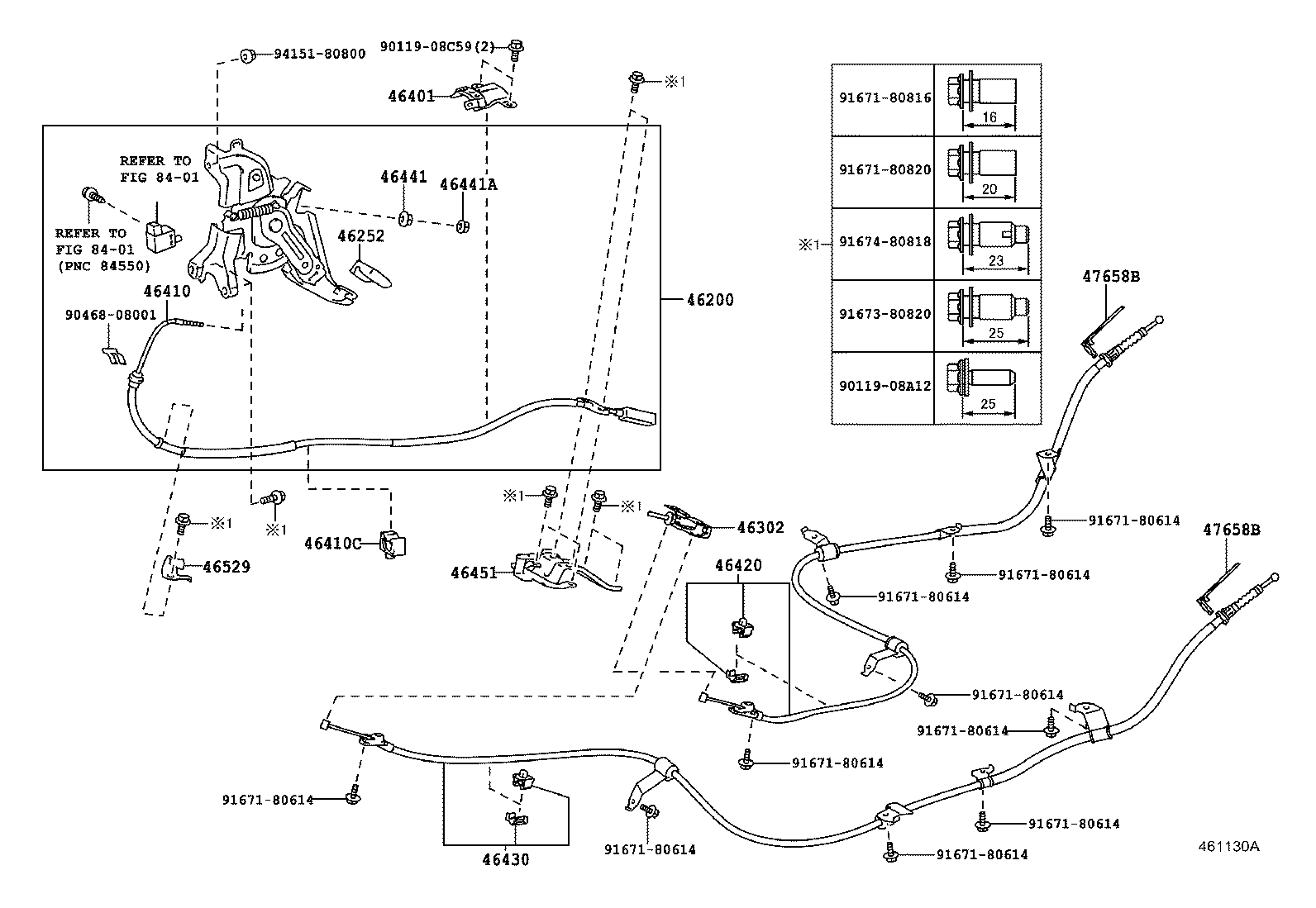

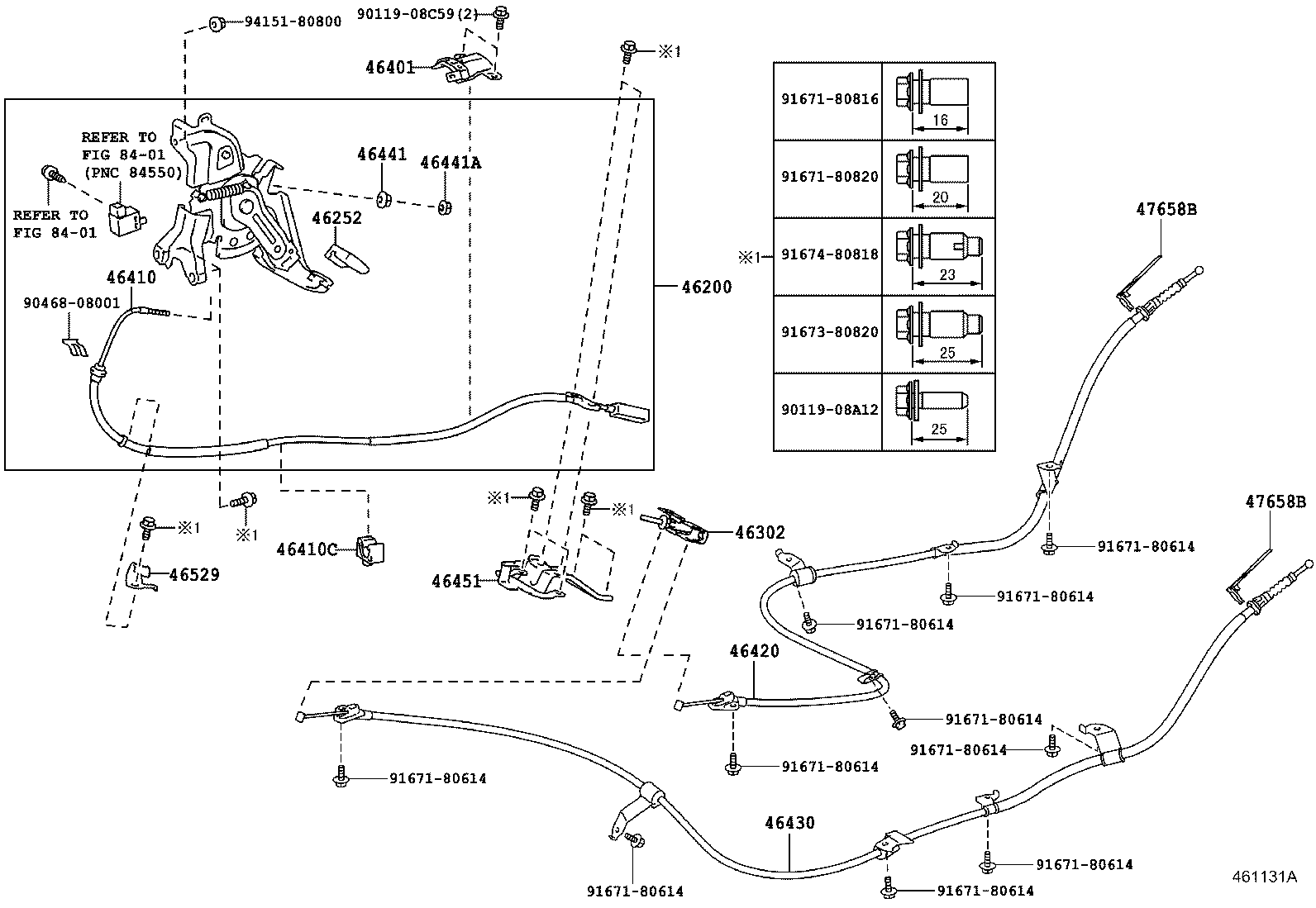

Figure 460933B 460933B 2006-12 → 2009-12 Figure 460934A 460934A 2006-12 → 2009-12 Figure 461130A 461130A 2009-12 → — Figure 461131A 461131A 2009-12 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46200 Pedal Assy, Parking Brake Control
46201E Lever Sub-assy, Parking Brake
46243 Cover, Parking Brake Lever
46252 Pad, Parking Pedal
46302 Rod Sub-assy, Parking Brake Pull, NO.1
46341 Equalizer, Parking Brake
46401 Bracket Sub-assy, Cable Support
46410 Cable Assy, Parking Brake, NO.1
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
46451 Bracket, Cable Support
46529 Bracket, Cable Clamp
47658B Protector, Parking Brake Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
