Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

23 part groups · 2 illustrations

Illustrations

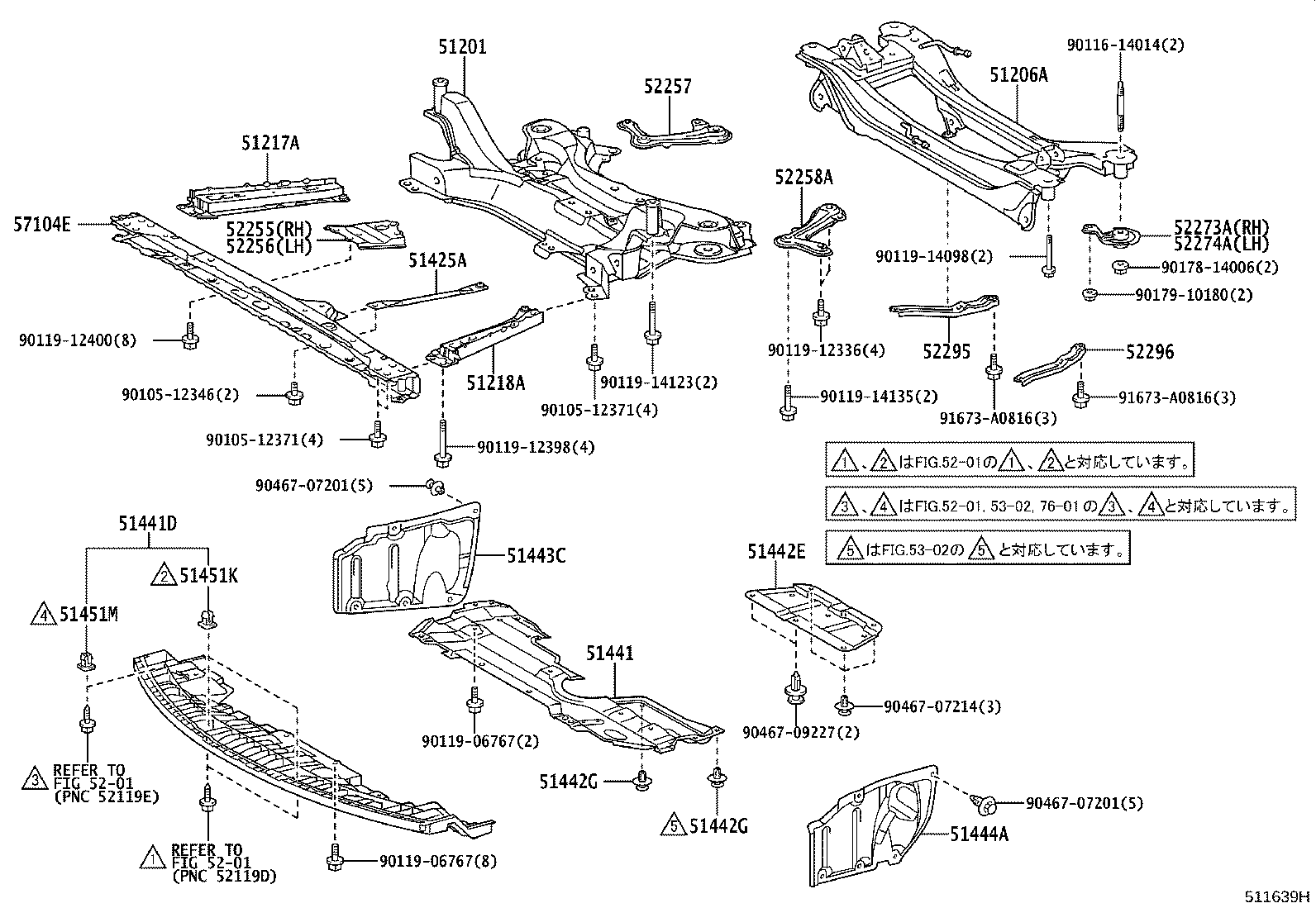

Figure 511638I 511638I 2006-12 → — Figure 511639H 511639H 2006-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51308 Bracket Sub-assy, Exhaust Pipe Clamp
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442E Cover, Engine Under, NO.2
51442G Clip, Engine Under Cover, NO.1
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451K Grommet, Screw, NO.1
51451M Grommet, Screw, NO.2
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57104E Member Sub-assy, Front Cross
