Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 4 illustrations

Illustrations

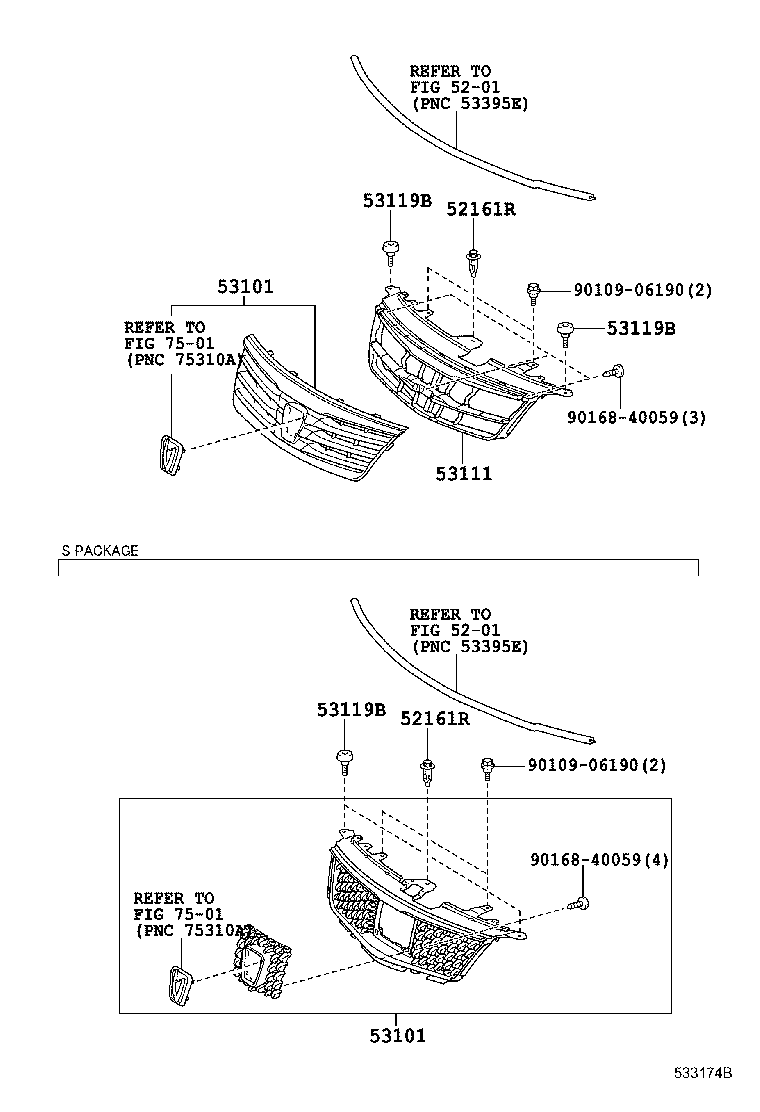

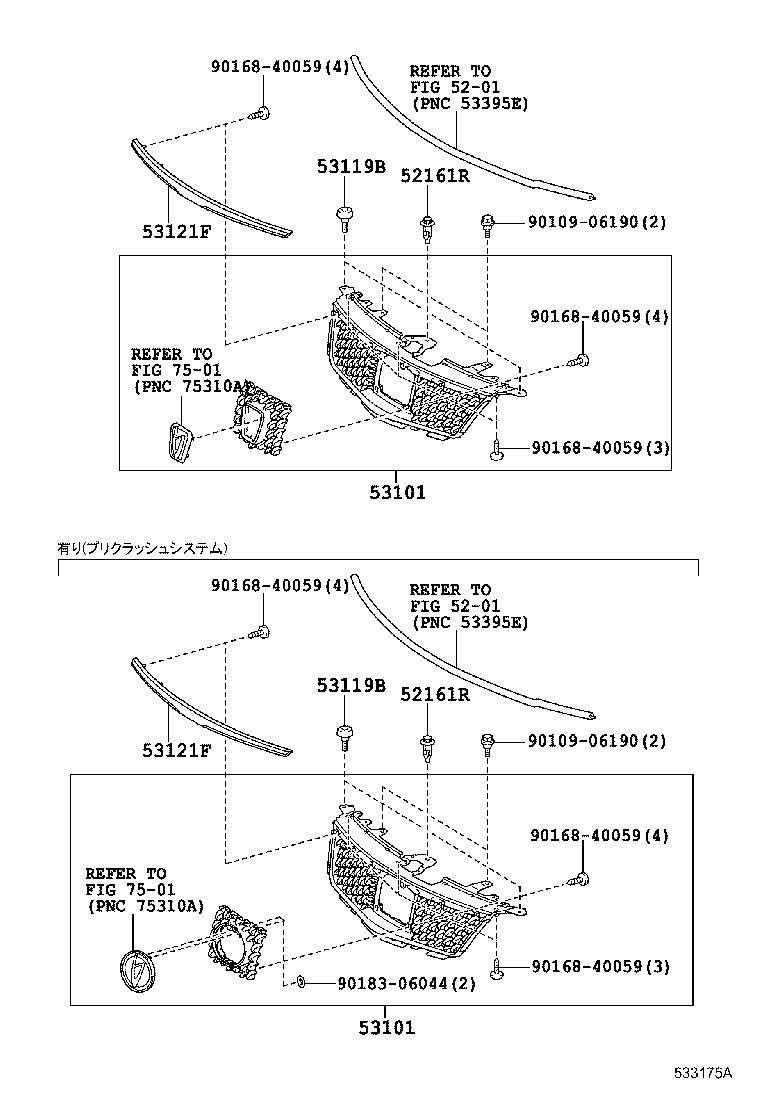

Figure 532423B 532423B 2006-12 → 2009-12 Figure 532604A 532604A 2007-08 → 2009-12 Figure 533174B 533174B 2009-12 → — Figure 533175A 533175A 2009-12 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53119B Protector, Radiator Grille
53121F Moulding, Radiator Grille, Upper RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
