Toyota Blade
2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan
Supported model
Data version 2013-01

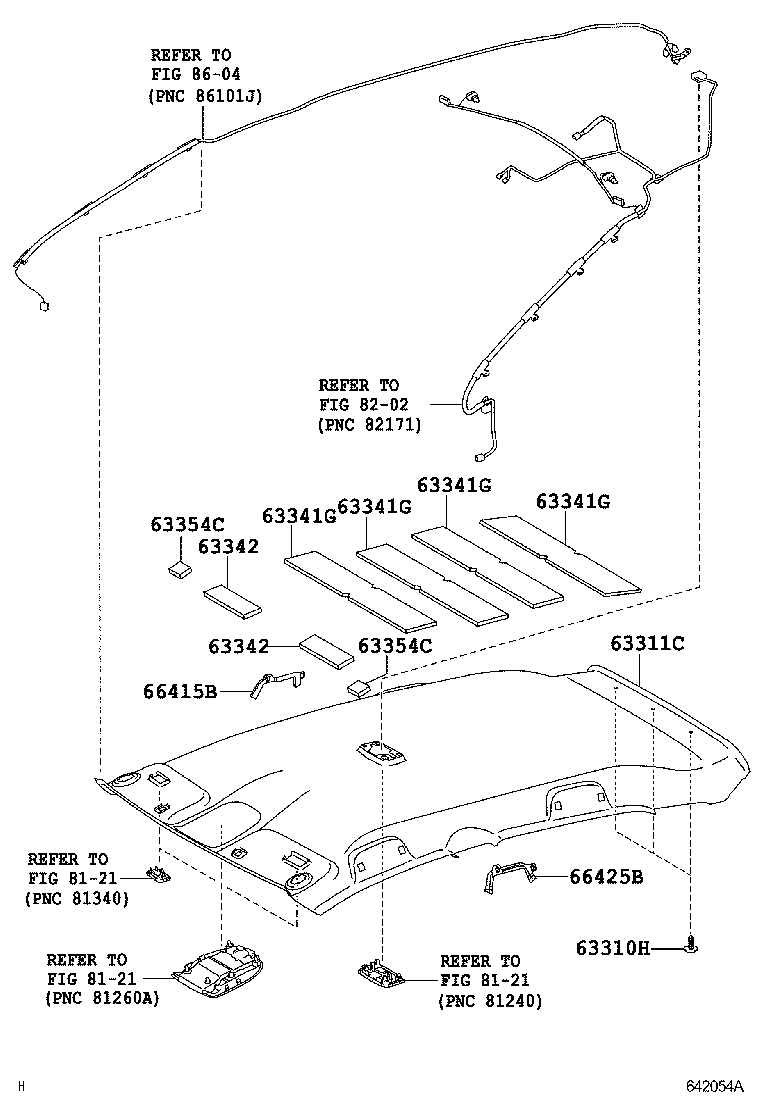

Roof Headlining & Silencer Pad
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311C | Headlining, Roof |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351B | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63354C | Pad, Roof Headlining Front Side |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
