Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 3 illustrations

Illustrations

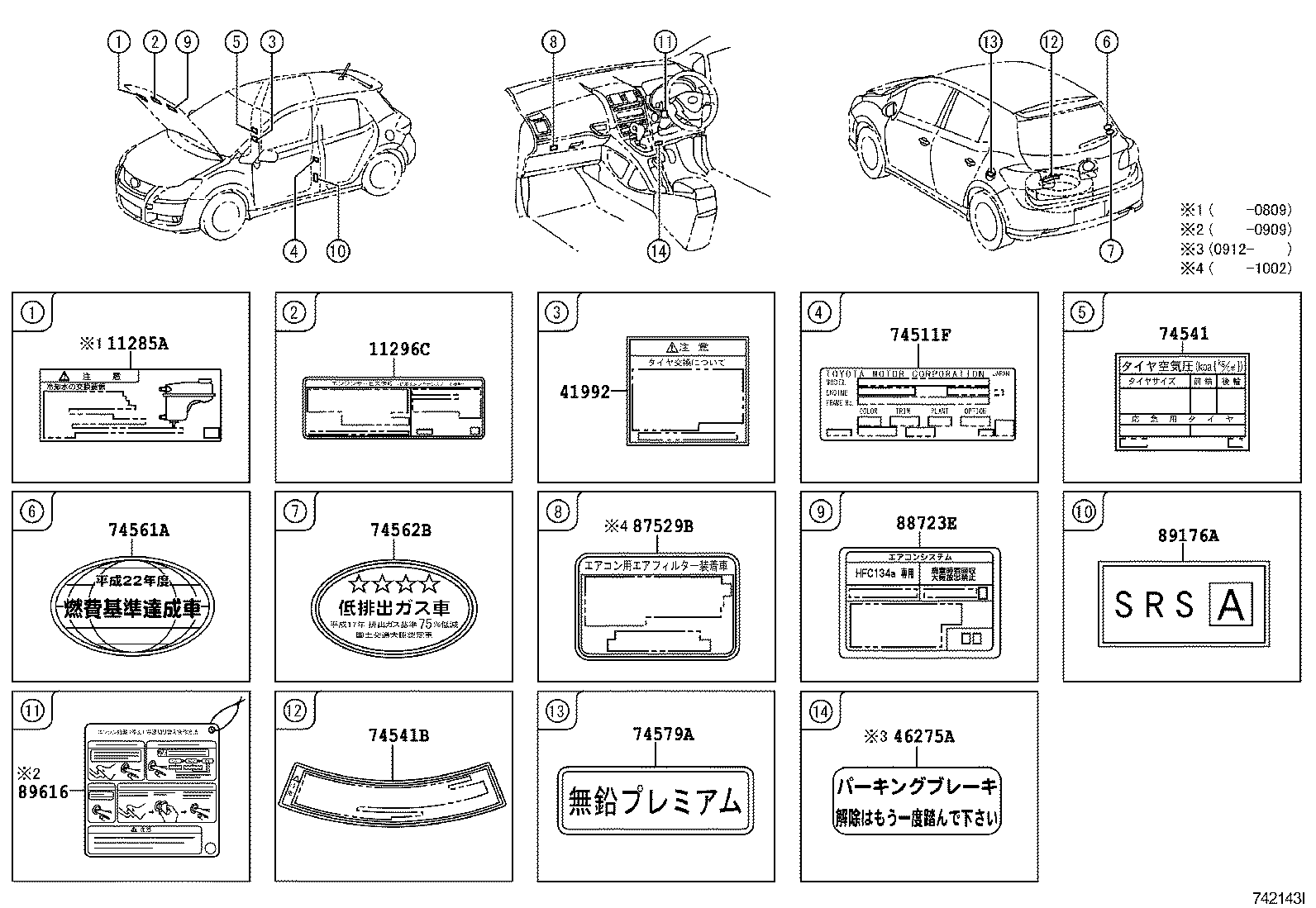

Figure 745937 745937 2006-12 → — Figure 742143I 742143I 2006-12 → — Figure 743326 743326 2006-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
