Toyota Blade

2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

17 part groups · 3 illustrations

Illustrations

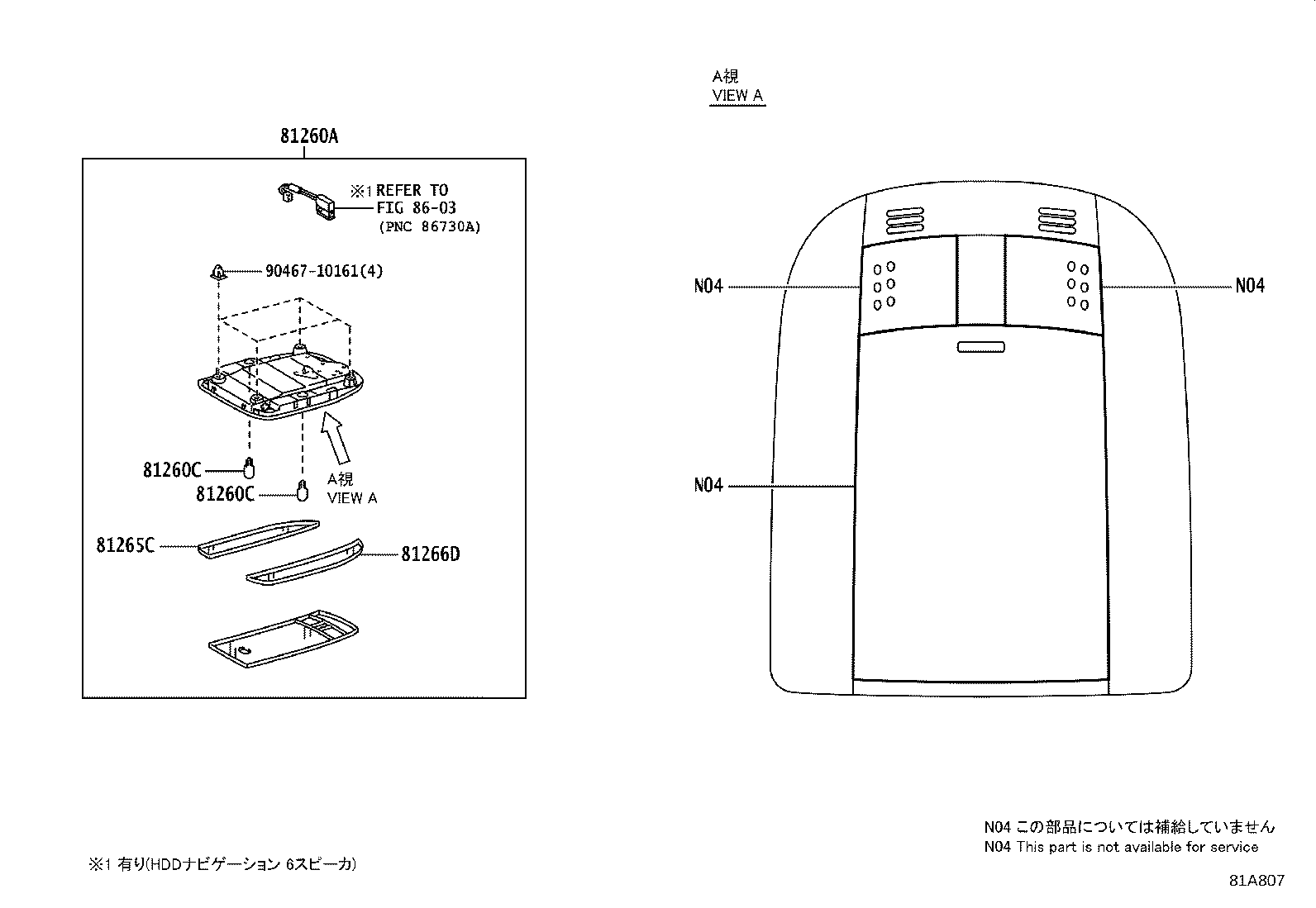

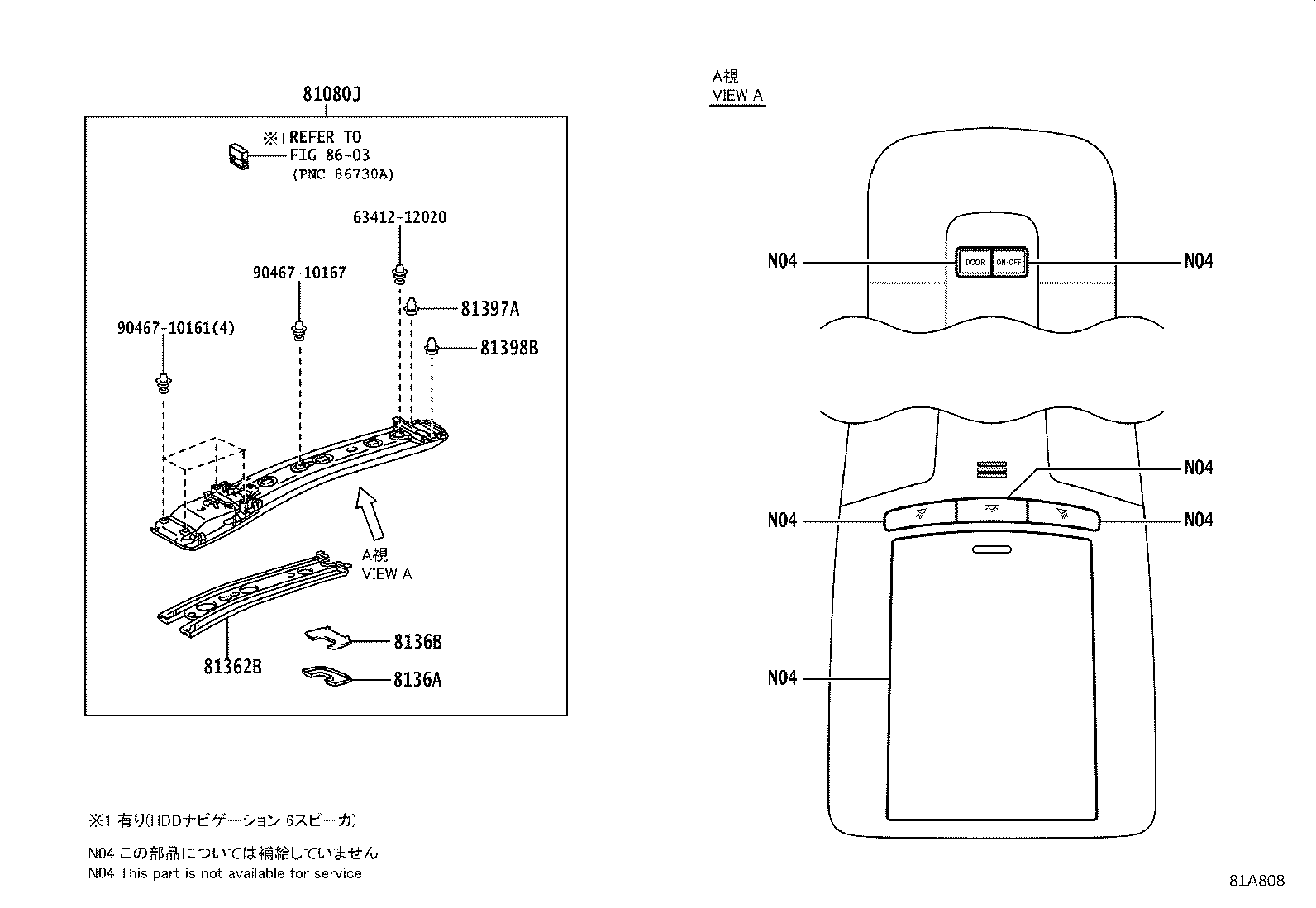

Figure 814057I 814057I 2006-12 → — Figure 81A807 81A807 2006-12 → — Figure 81A808 81A808 2006-12 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81362B Lens, Interior Illumination Lamp
8136A Lens, Interior Illumination Lamp, Outer
8136B Lens, Interior Illumination Lamp, Inner
81397A Retainer, Room Lamp, RH
81398B Retainer, Room Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
