Toyota Blade
2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan
Supported model
Data version 2013-01
Radio Receiver & Amplifier & Condenser
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

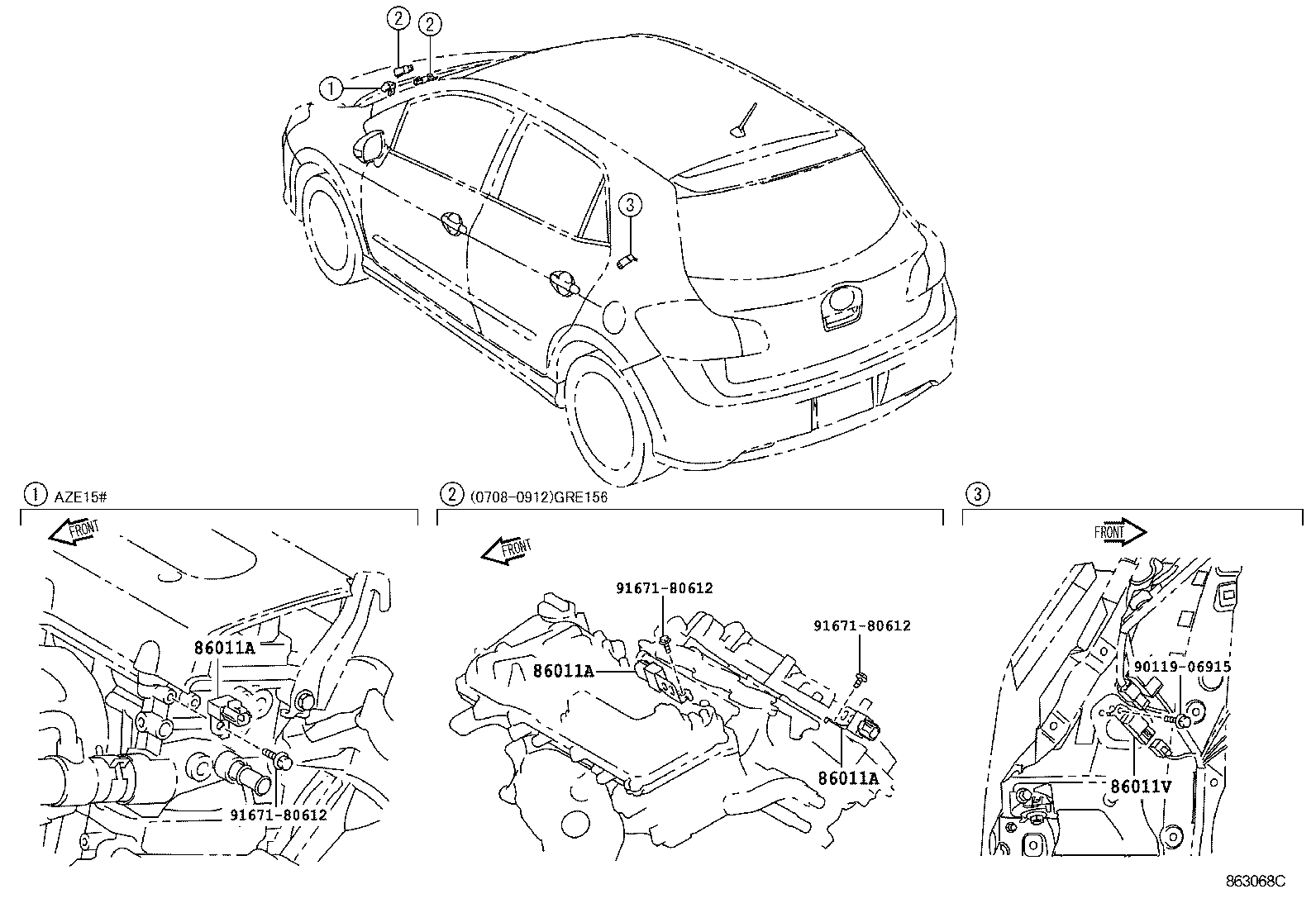

| 86011A | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |

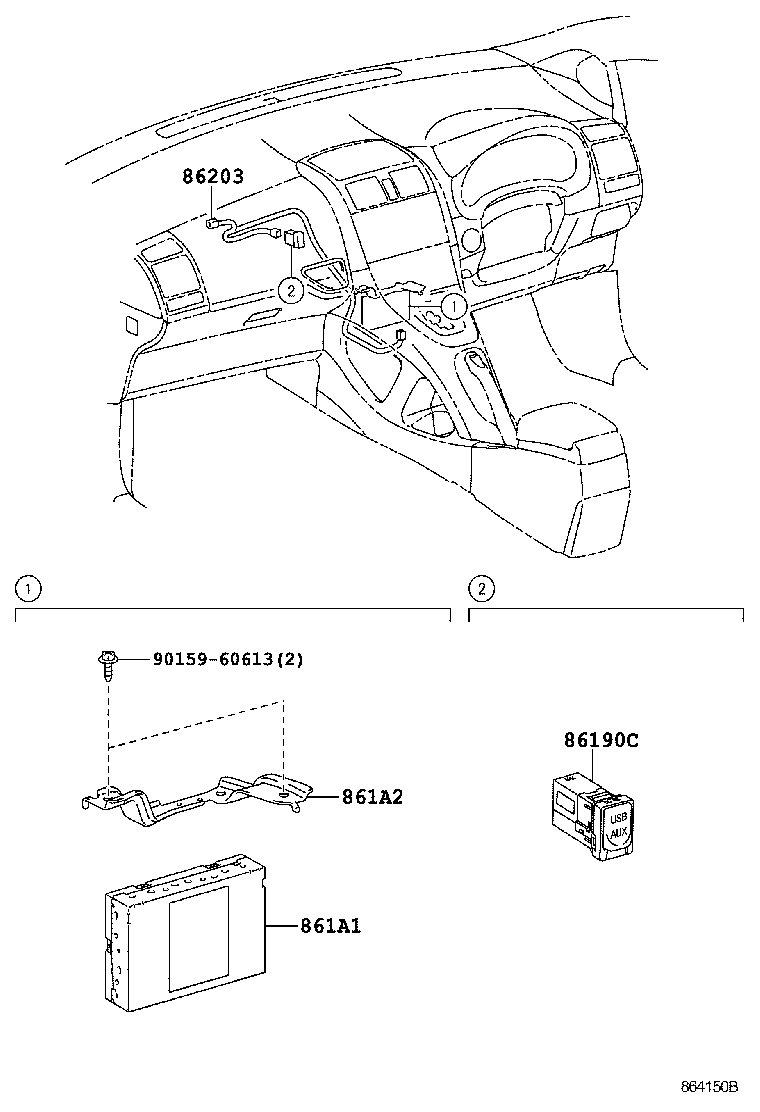

| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 861A1 | Computer, Multi-media Interface |
| 861A2 | Bracket, Multi-media Interface, NO.1 |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
