Heating & Air Conditioning - Water Piping

5 part groups · 2 illustrations

Illustrations

Figure 879117E

879117E 2006-12 → —

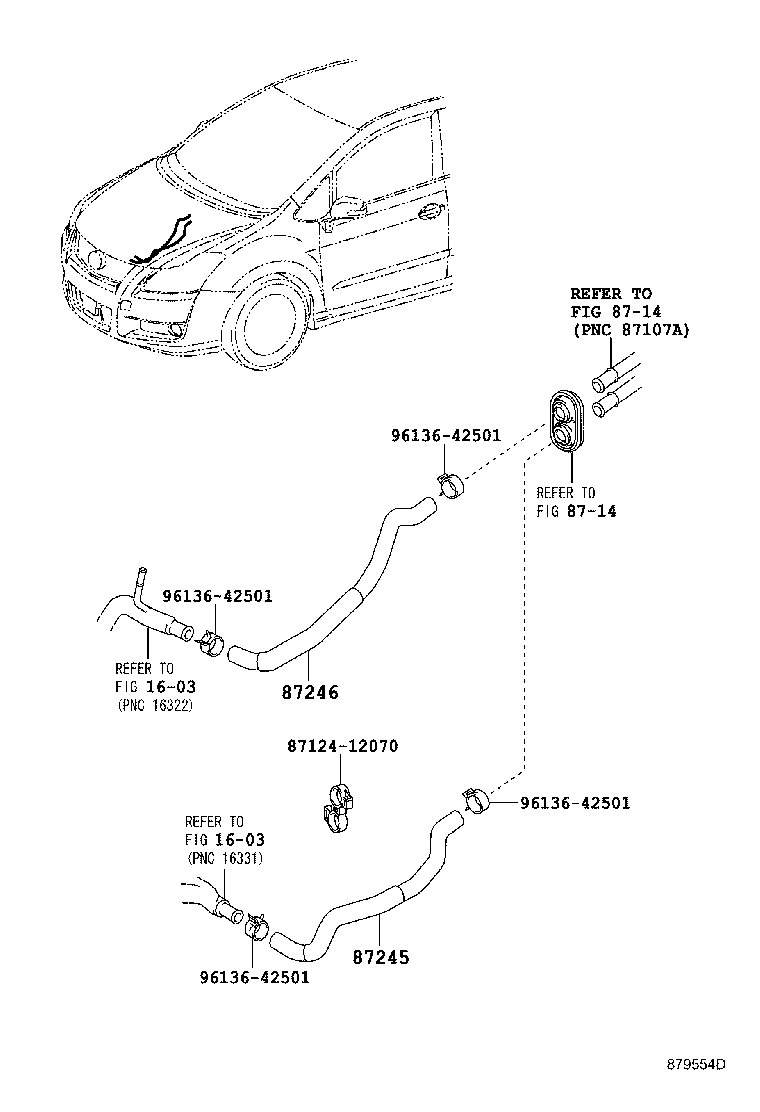

Figure 879554D

879554D 2007-08 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246	Hose, Heater Water, Outlet
87248A	Pipe, Heater Water Inlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
