Toyota 86
2012-03 → 2016-07 · chassis ZN6 · catalogue 264110 · Japan
Supported model
Data version 2017-02
Disc Wheel & Wheel Cap
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

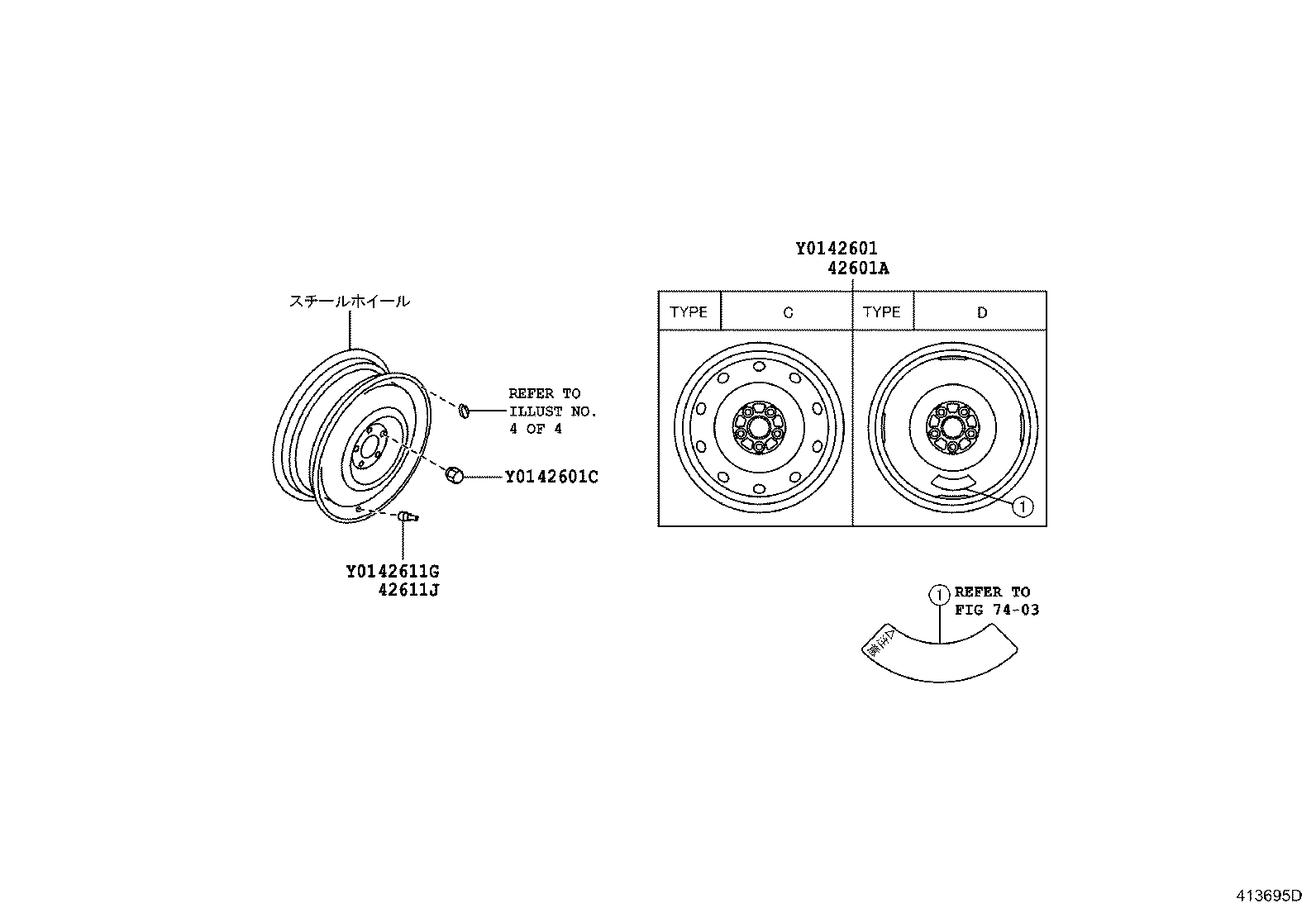

| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
