Front Bumper & Bumper Stay

31 part groups · 3 illustrations

Illustrations

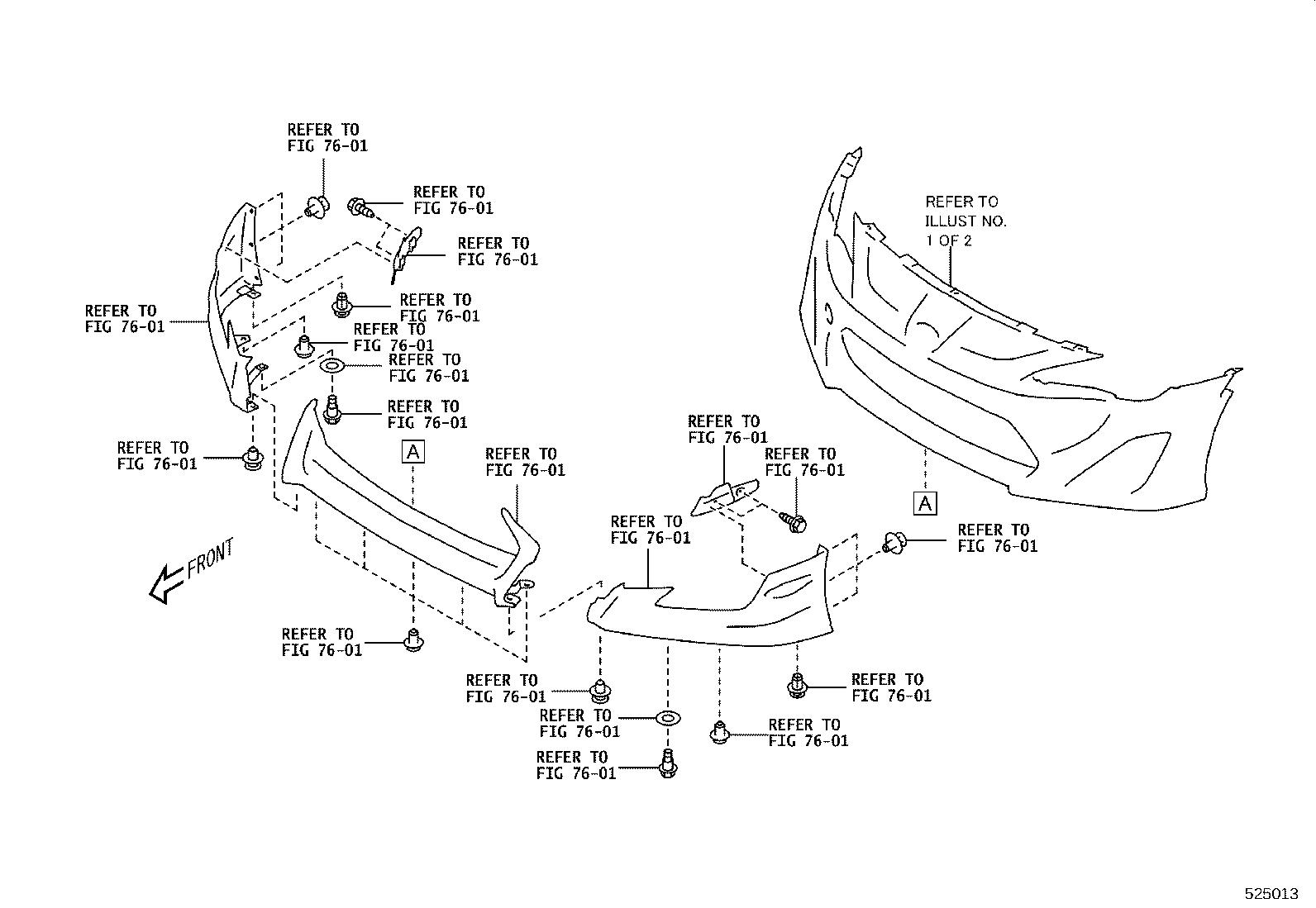

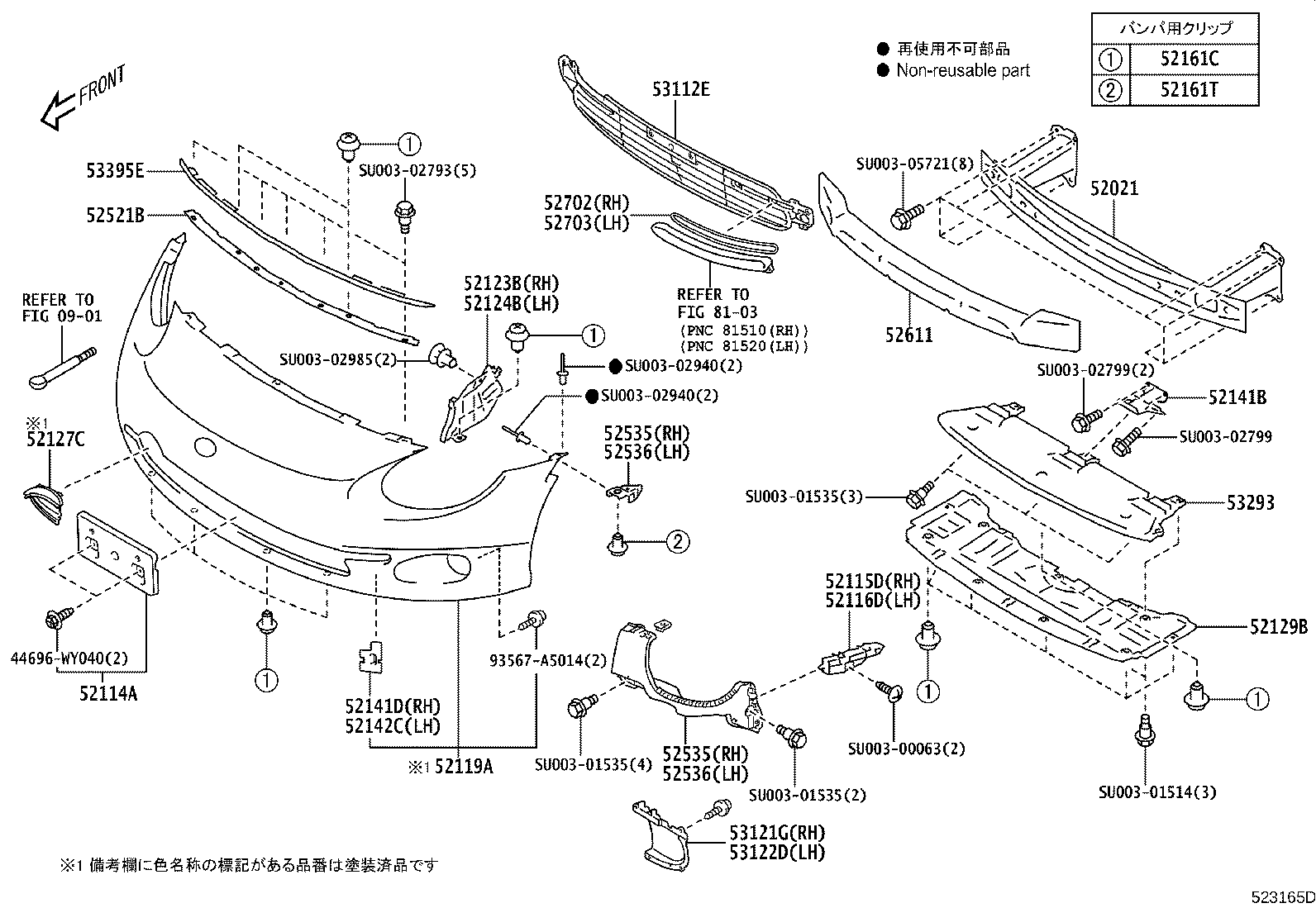

Figure 522646G 522646G 2012-03 → — Figure 525013 525013 2012-03 → — Figure 523165D 523165D 2015-04 → 2016-06

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52115D Support, Front Bumper Side, NO.2 RH
52116A Support, Front Bumper Side, LH
52116D Support, Front Bumper Side, NO.2 LH
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52124B Plate, Front Bumper Reinforcement, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52141B Stay, Front Bumper
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52521B Retainer, Front Bumper, Upper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52702 Moulding Sub-assy, Front Bumper Side, RH
52703 Moulding Sub-assy, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53121G Plate, Radiator Grille Finish, RH
53122D Plate, Radiator Grille Finish, LH
53293 Bracket, Front Bumper Stay
53395E Seal, Hood TO Front End Panel
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
