Toyota 86

2012-03 → 2016-07 · chassis ZN6 · catalogue 264110 · Japan

Supported model Data version 2017-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

15 part groups · 2 illustrations

Illustrations

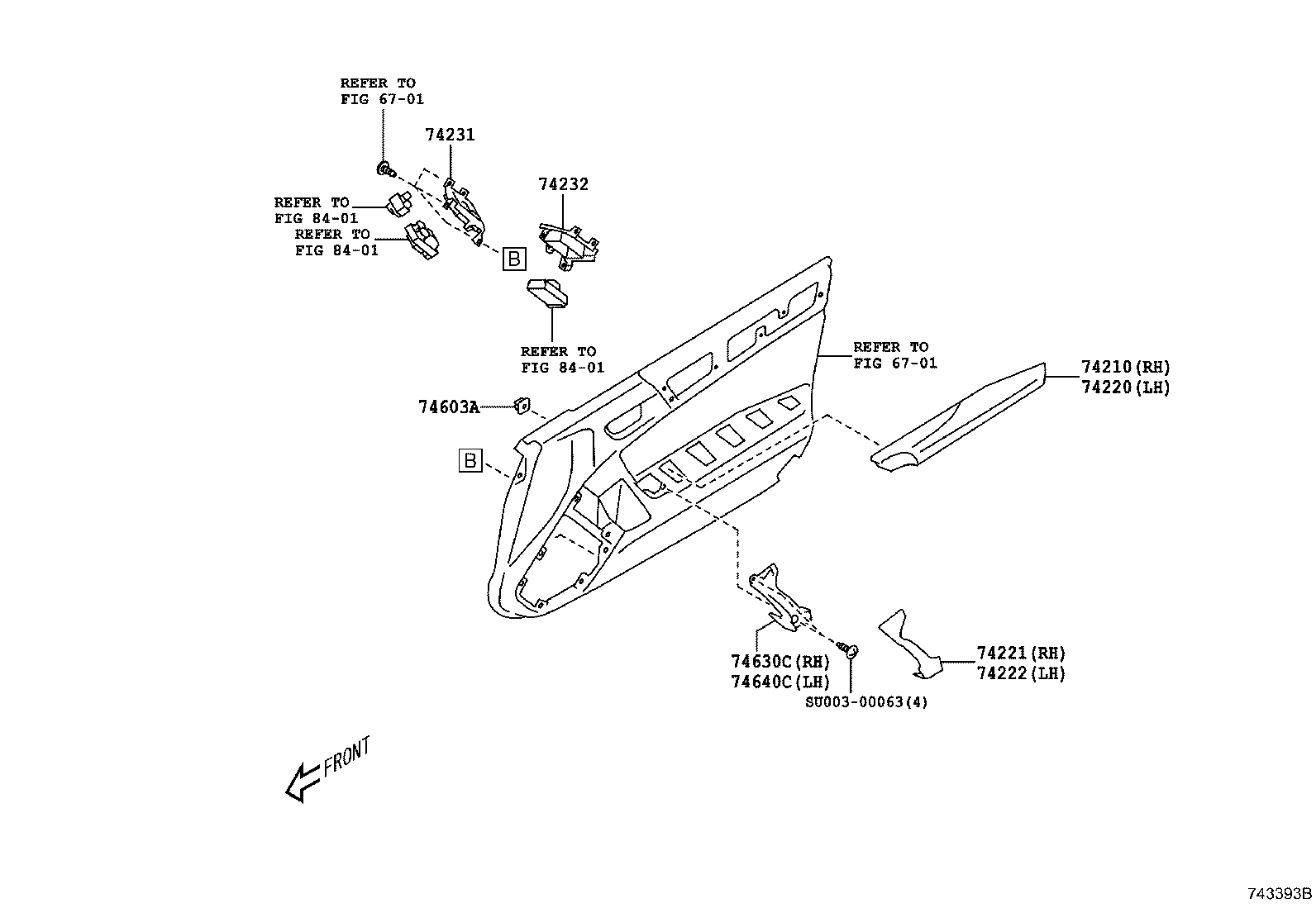

Figure 743347B 743347B 2012-03 → — Figure 743393B 743393B 2012-03 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74221 Cover, Door Armrest, RH
74222 Cover, Door Armrest, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74603A Grommet (FOR FRONT ASSIST GRIP)
74611Q Clip
74630C Grip Assy, Door Assist, RH
74640C Grip Assy, Door Assist, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
