Toyota 86
2012-03 → 2016-07 · chassis ZN6 · catalogue 264110 · Japan
Supported model
Data version 2017-02
Mudguard & Spoiler
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71196 | Clip(FOR REAR SPOILER) |
| 71196A | Clip |
| 76085A | Cap(FOR REAR SPOILER) |

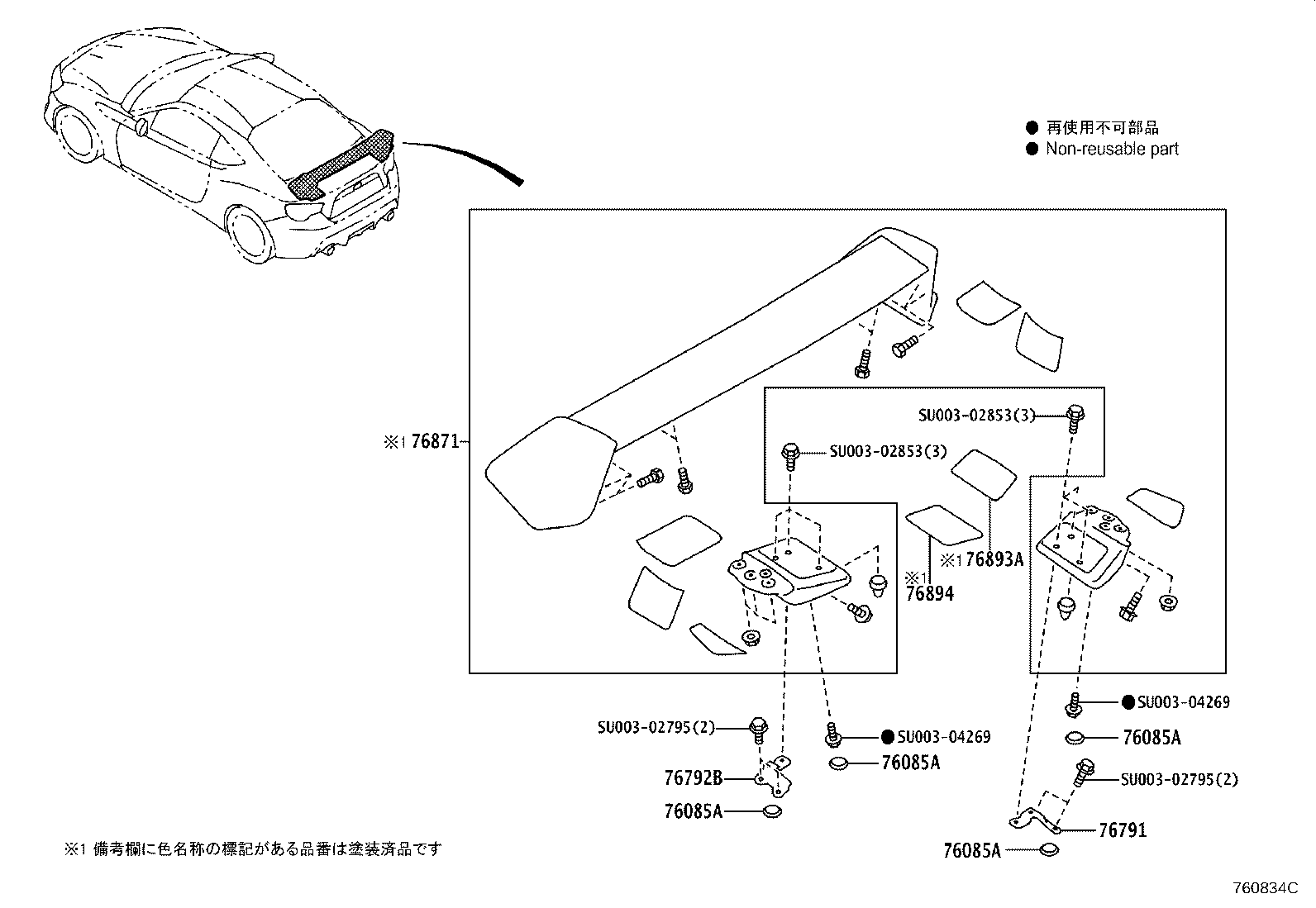

| 76791 | Bracket, Rear Spoiler, NO.1 RH |
| 76792B | Bracket, Rear Spoiler, NO.1 LH |
| 76793C | Bracket, Rear Spoiler, NO.2 RH |
| 76794C | Bracket, Rear Spoiler, NO.2 LH |

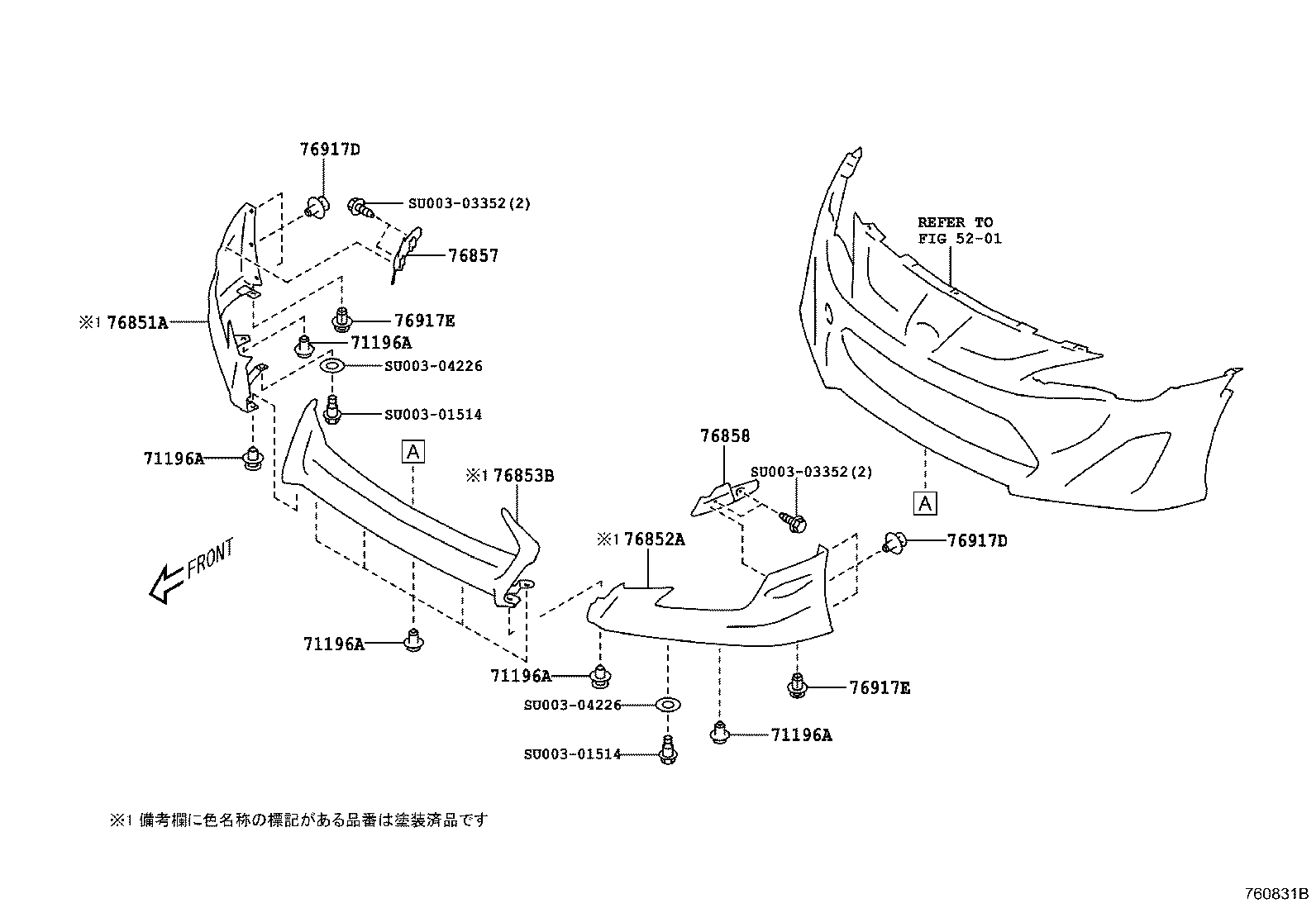

| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853B | Cover, Front Spoiler, Center |
| 76857 | Retainer, Front Spoiler Side, RH |
| 76858 | Retainer, Front Spoiler Side, LH |

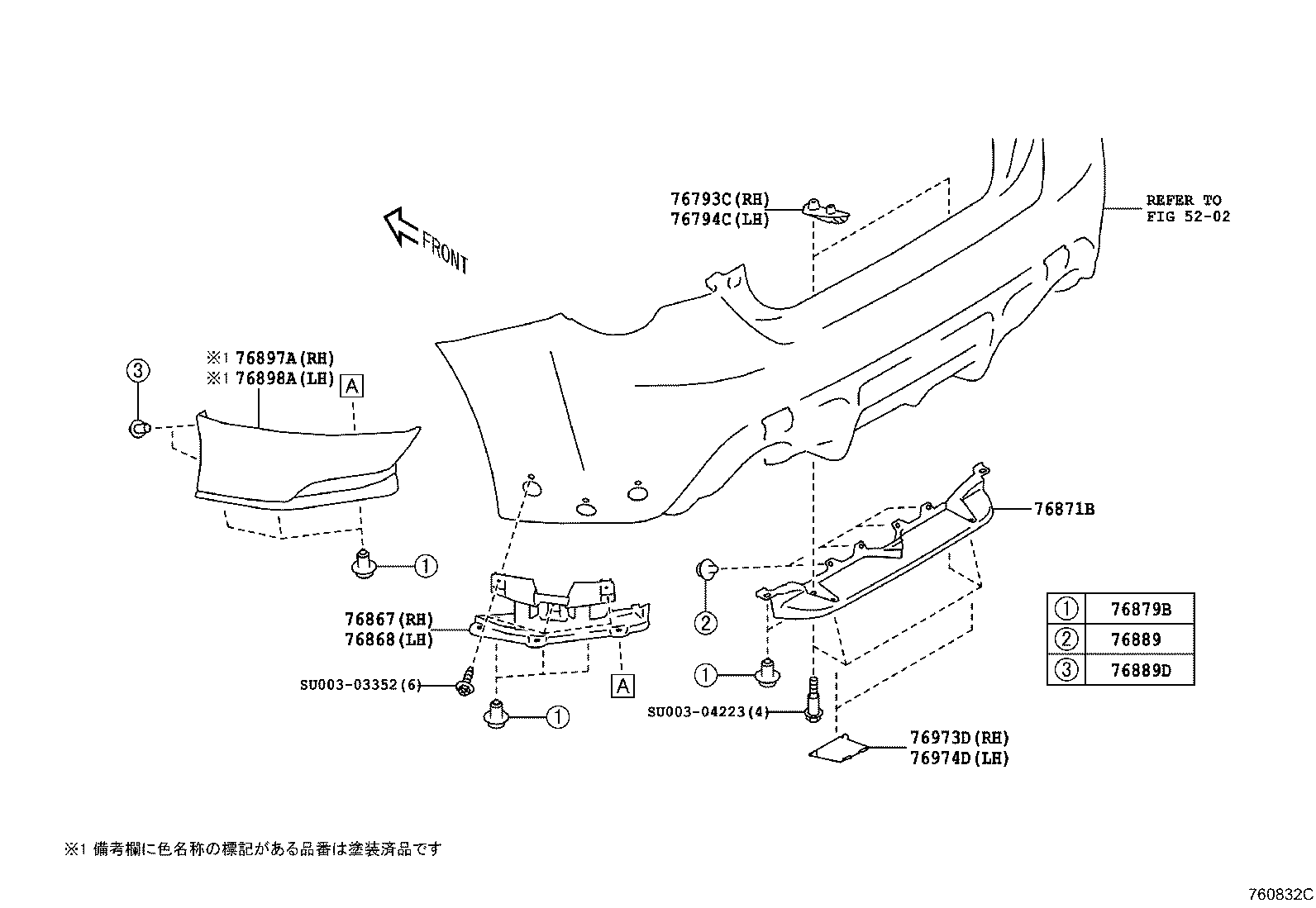

| 76867 | Retainer, Rear Spoiler Side, RH |
| 76868 | Retainer, Rear Spoiler Side, LH |

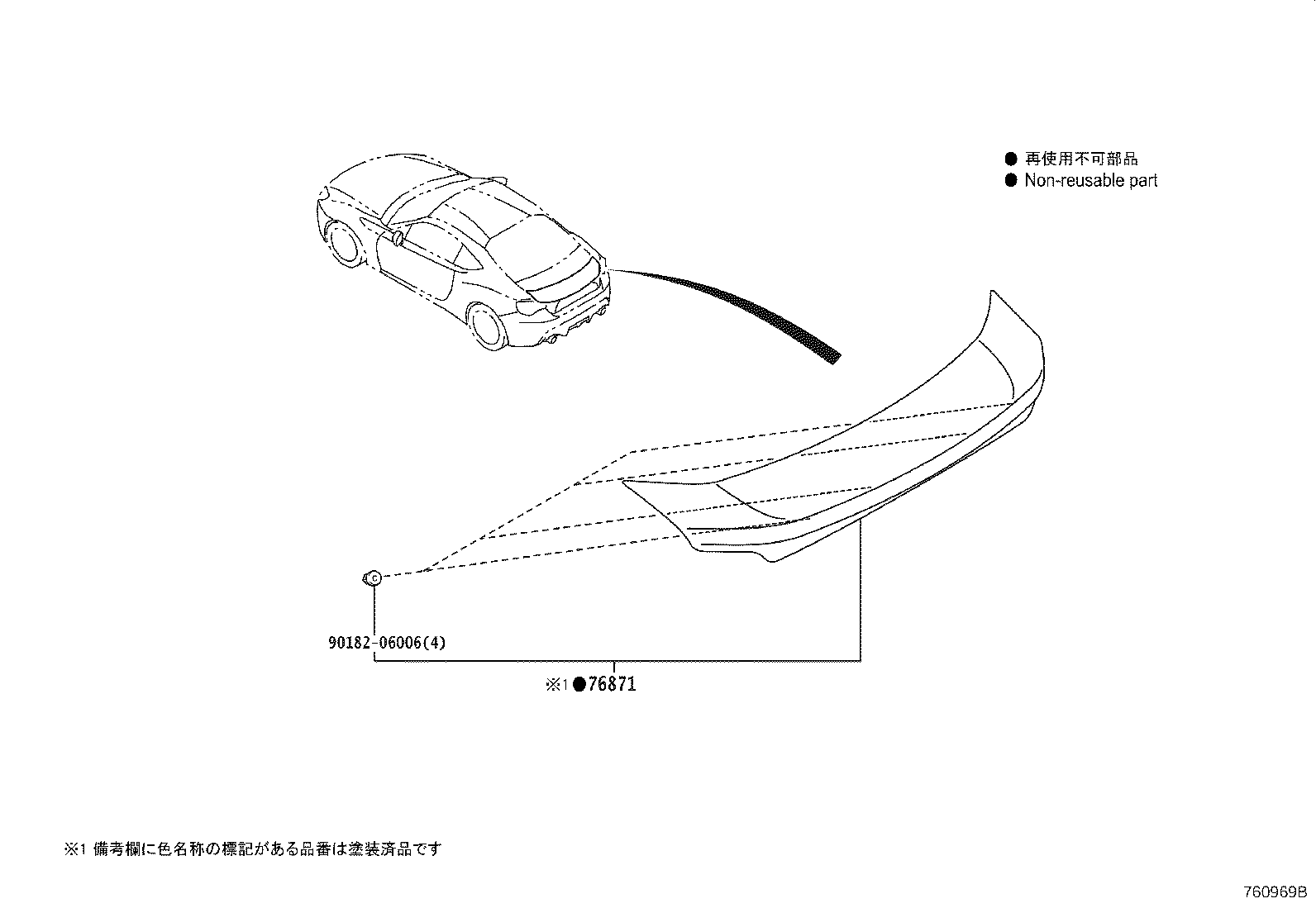

| 76871 | Spoiler, Rear |
| 76871B | Cover, Rear Spoiler |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76879B | Clip, Rear Spoiler, NO.2 |
| 76889 | Clip, Rear Spoiler, NO.2 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76893A | Cover, Rear Spoiler, RH |
| 76894 | Cover, Rear Spoiler, LH |
| 76897A | Spoiler,Rear Side RH |
| 76898A | Spoiler,Rear Side LH |
| 76917D | Clip |
| 76917E | Clip |
| 76973D | Cover, Rear Under Side, RH |
| 76974D | Cover, Rear Under Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
