Toyota 86
2012-03 → 2016-07 · chassis ZN6 · catalogue 264110 · Japan
Supported model
Data version 2017-02

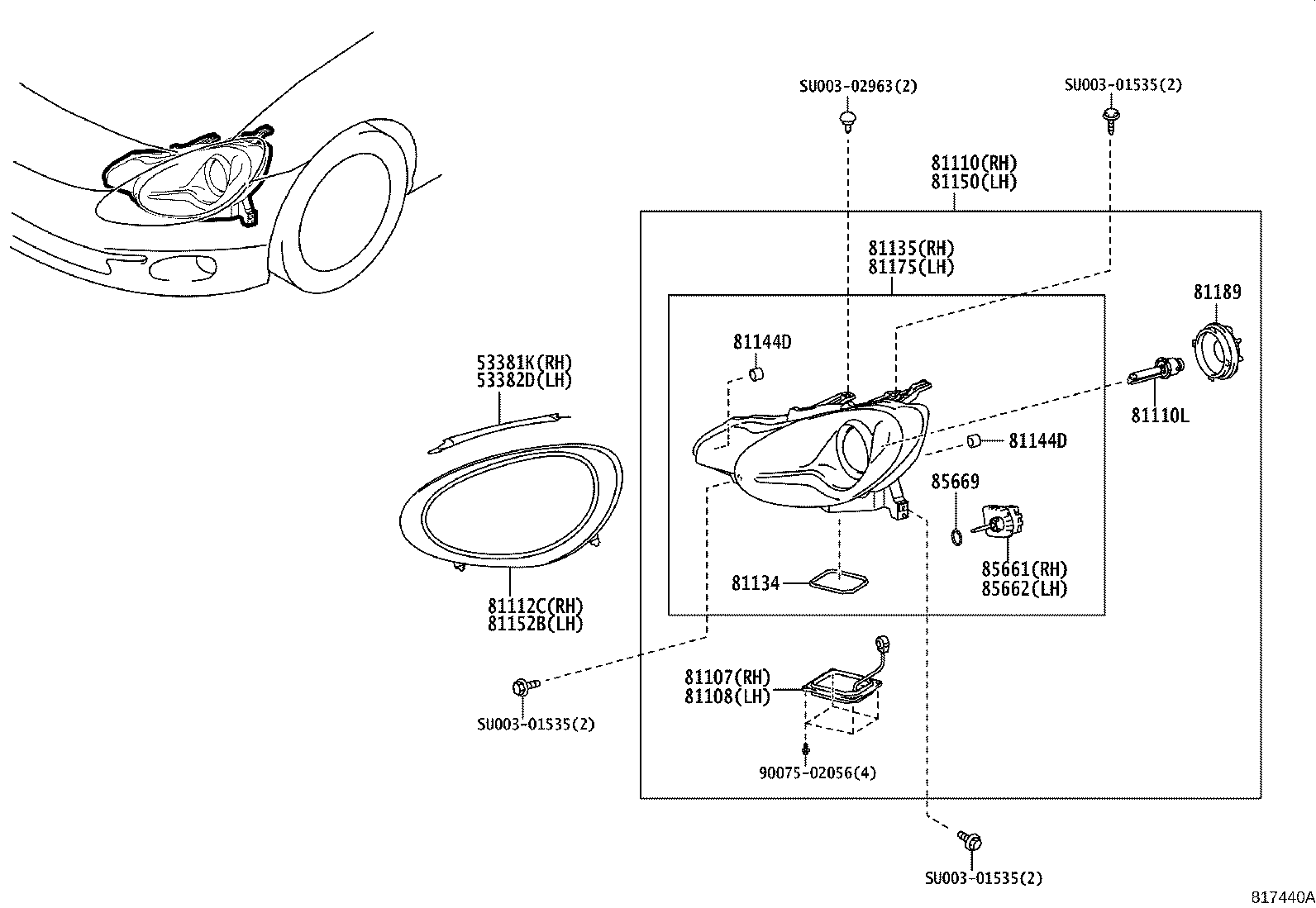

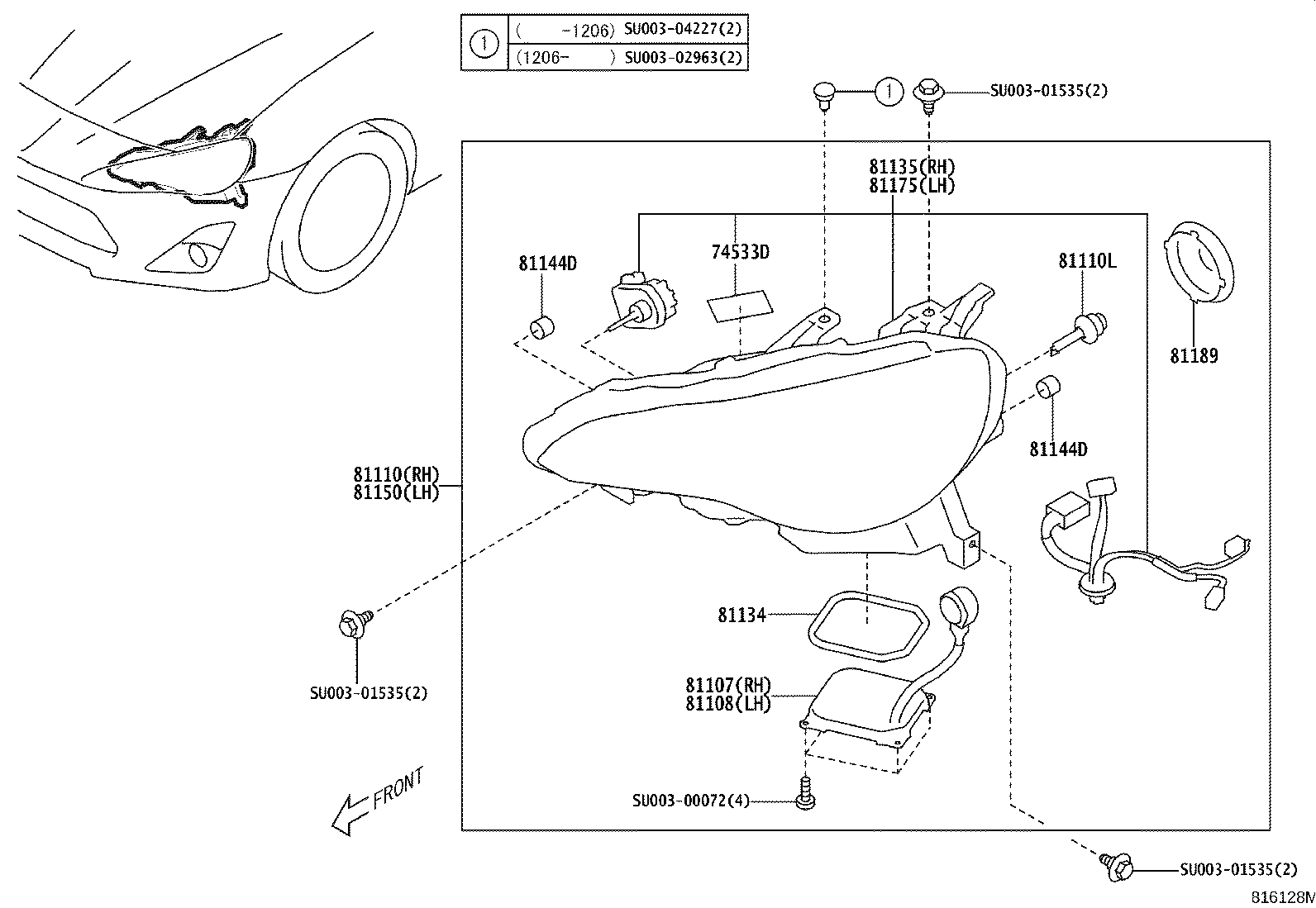

Headlamp
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53381K | Seal, Hood TO Radiator Support, RH |
| 53382D | Seal, Hood TO Radiator Support, LH |
| 74533D | Label, Headlamp Voltage Caution |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81112C | Ring, Cover, RH |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81144D | Cap, Headlamp Locking |
| 81145 | Cover, Headlamp, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81152B | Ring, Cover, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
