Toyota 86

2012-03 → 2016-07 · chassis ZN6 · catalogue 264110 · Japan

Supported model Data version 2017-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

864978 2012-03 → 2015-04

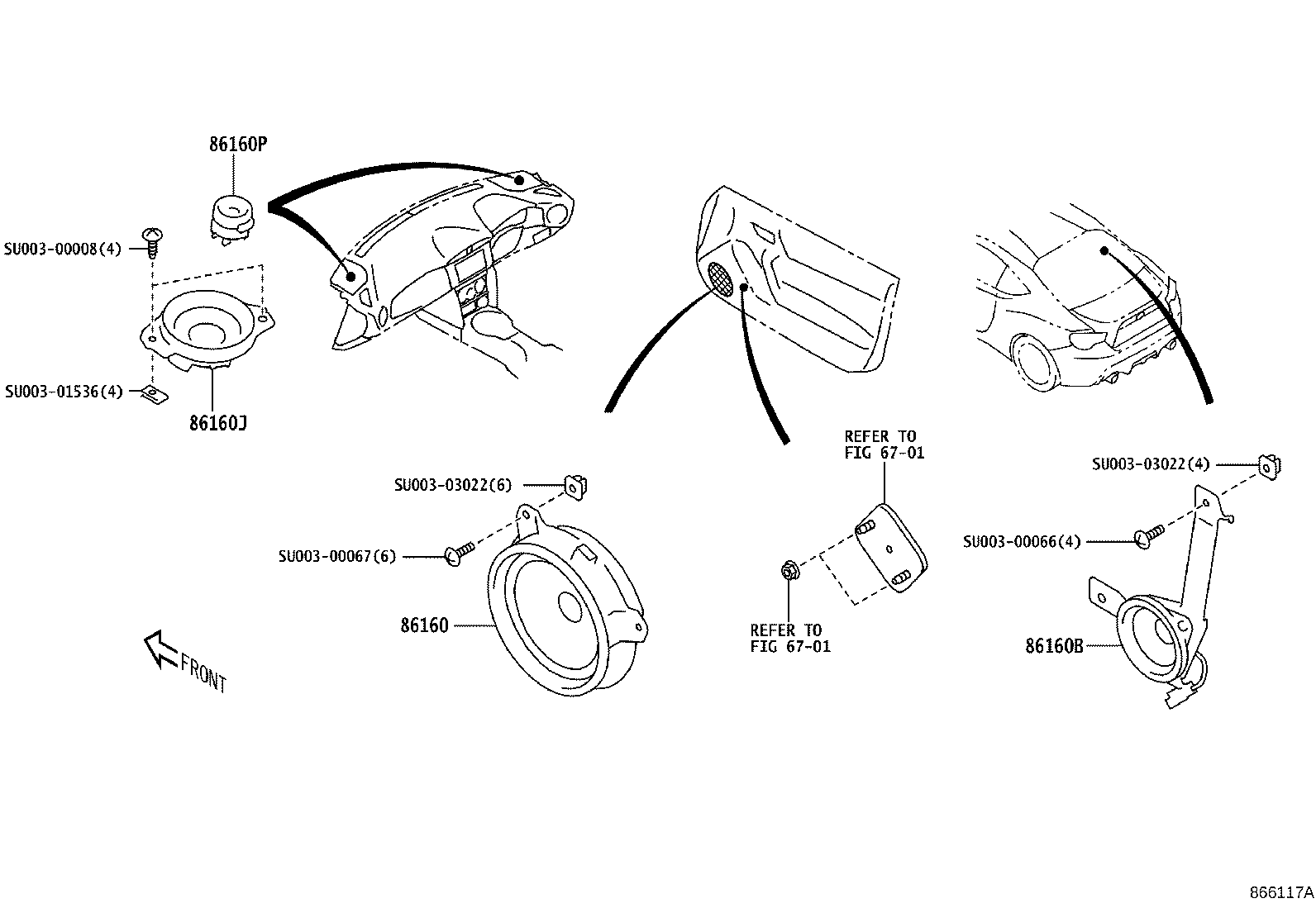

Figure 866117A

866117A 2015-04 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160J	Speaker Assy, Front NO.3
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
