Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264120 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

13 part groups · 2 illustrations

Illustrations

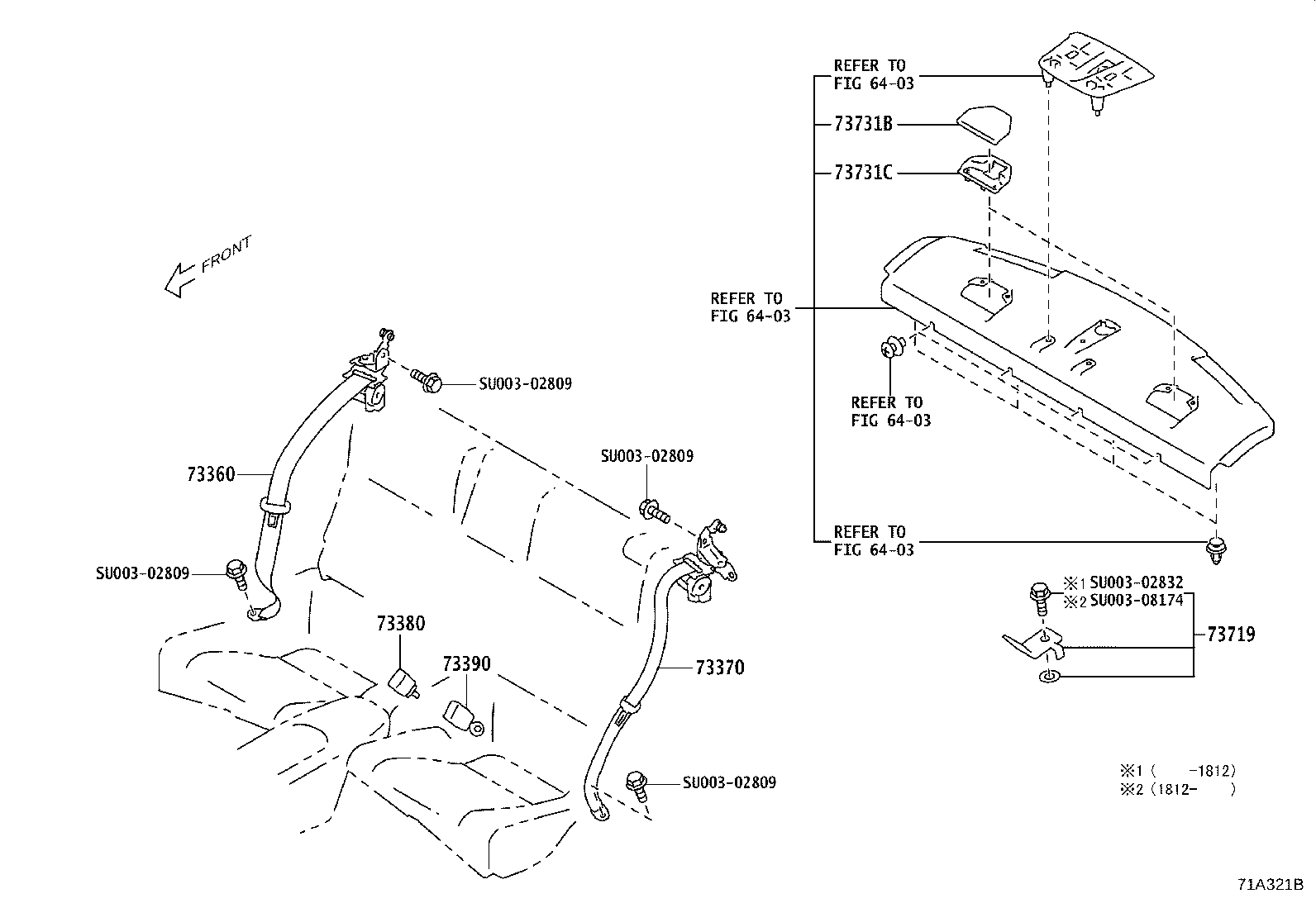

Figure 71A320C 71A320C 2016-08 → — Figure 71A321B 71A321B 2016-08 → —

Part groups

PNCDescription
73176 Hanger, Front Shoulder Belt, RH (FOR FRONT SEAT)
73177 Hanger, Front Shoulder Belt, LH (FOR FRONT SEAT)
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73719 Bracket, Child Restraint Seat Tether Anchor
73731B Cover, Child Restraint Seat, NO.1
73731C Cover, Child Restraint Seat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
