Toyota 86
2016-08 → present · chassis ZN6 · catalogue 264120 · Japan
Supported model
Data version 2020-05
Armrest & Visor

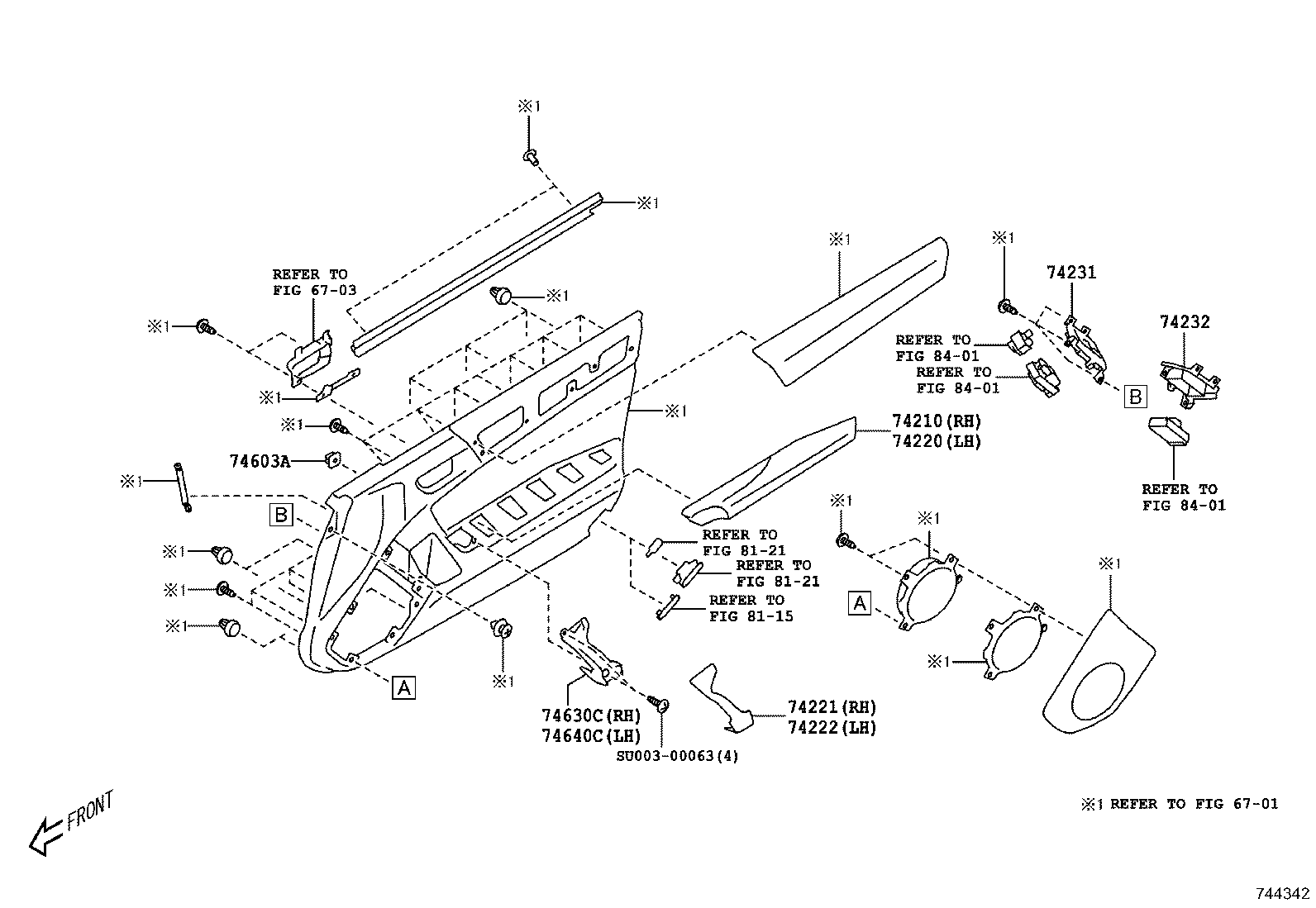

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74221 | Cover, Door Armrest, RH |
| 74222 | Cover, Door Armrest, LH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603A | Grommet (FOR FRONT ASSIST GRIP) |
| 74611Q | Clip |
| 74630C | Grip Assy, Door Assist, RH |
| 74640C | Grip Assy, Door Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
