Factory parts data · Europe

Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264120 · Japan

Supported model Data version 2020-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

5 part groups · 2 illustrations

Illustrations

Figure 761209A

761209A 2016-08 → —

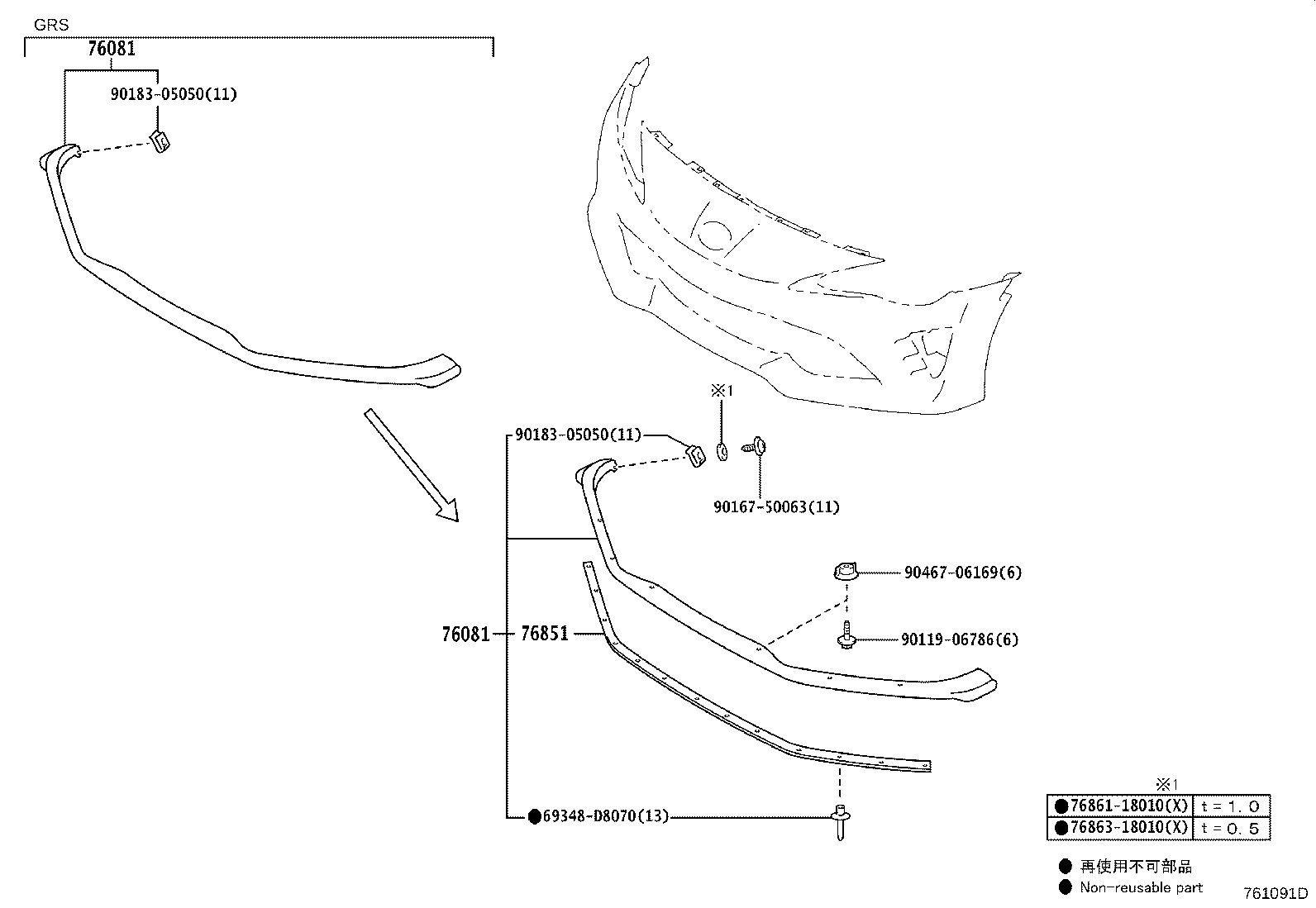

Figure 761091D

761091D 2017-12 → —

Part groups

PNC	Description
71196	Clip(FOR REAR SPOILER)
76081	Spoiler Sub-assy, Front
76085A	Cap(FOR REAR SPOILER)
76851	Cover, Front Spoiler
76871	Spoiler, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
