Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264120 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 18 illustrations

Illustrations

Figure 82A757A 82A757A 2016-08 → — Figure 82A758A 82A758A 2016-08 → — Figure 82A759A 82A759A 2016-08 → — Figure 82A760A 82A760A 2016-08 → — Figure 82A761A 82A761A 2016-08 → — Figure 82A836 82A836 2016-08 → — Figure 82A762 82A762 2016-08 → — Figure 82A763 82A763 2016-08 → — Figure 82A764 82A764 2016-08 → — Figure 82A765 82A765 2016-08 → — Figure 82A766A 82A766A 2016-08 → — Figure 82A767 82A767 2016-08 → — Figure 82A768 82A768 2016-08 → — Figure 82A769 82A769 2016-08 → — Figure 82A770C 82A770C 2016-08 → — Figure 82B381 82B381 2016-08 → — Figure 82A772 82A772 2016-08 → — Figure 82B086B 82B086B 2016-08 → —

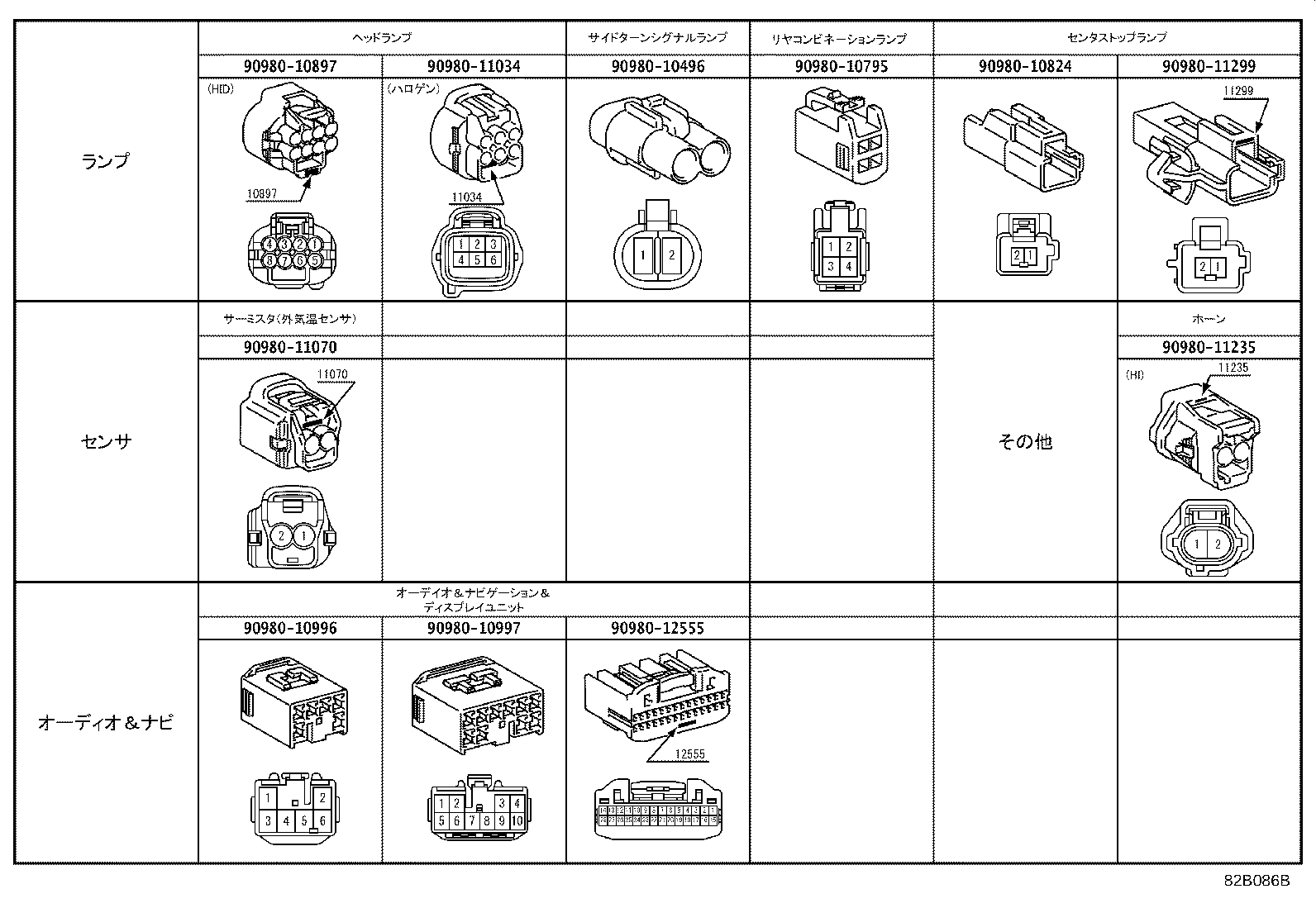

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

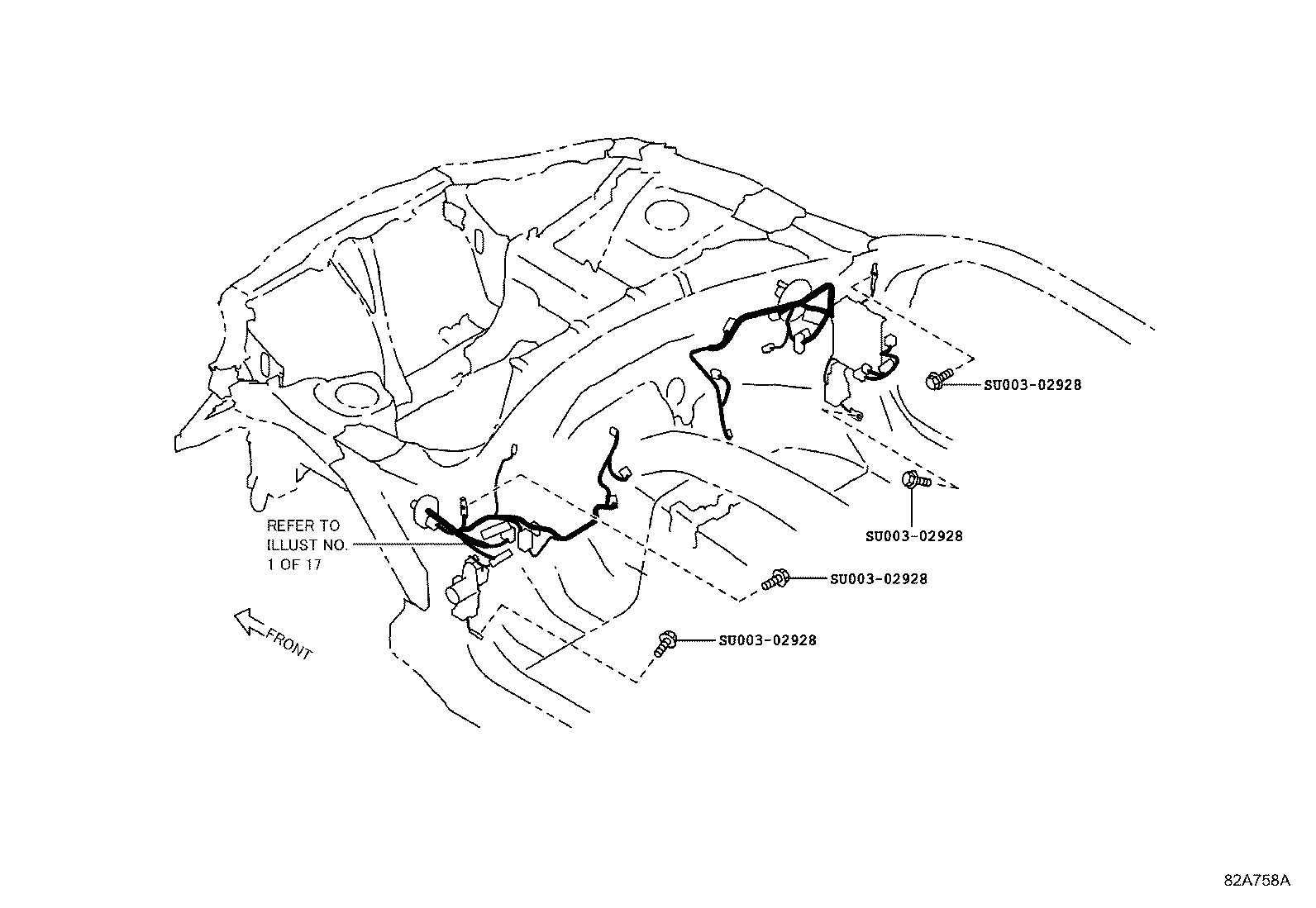

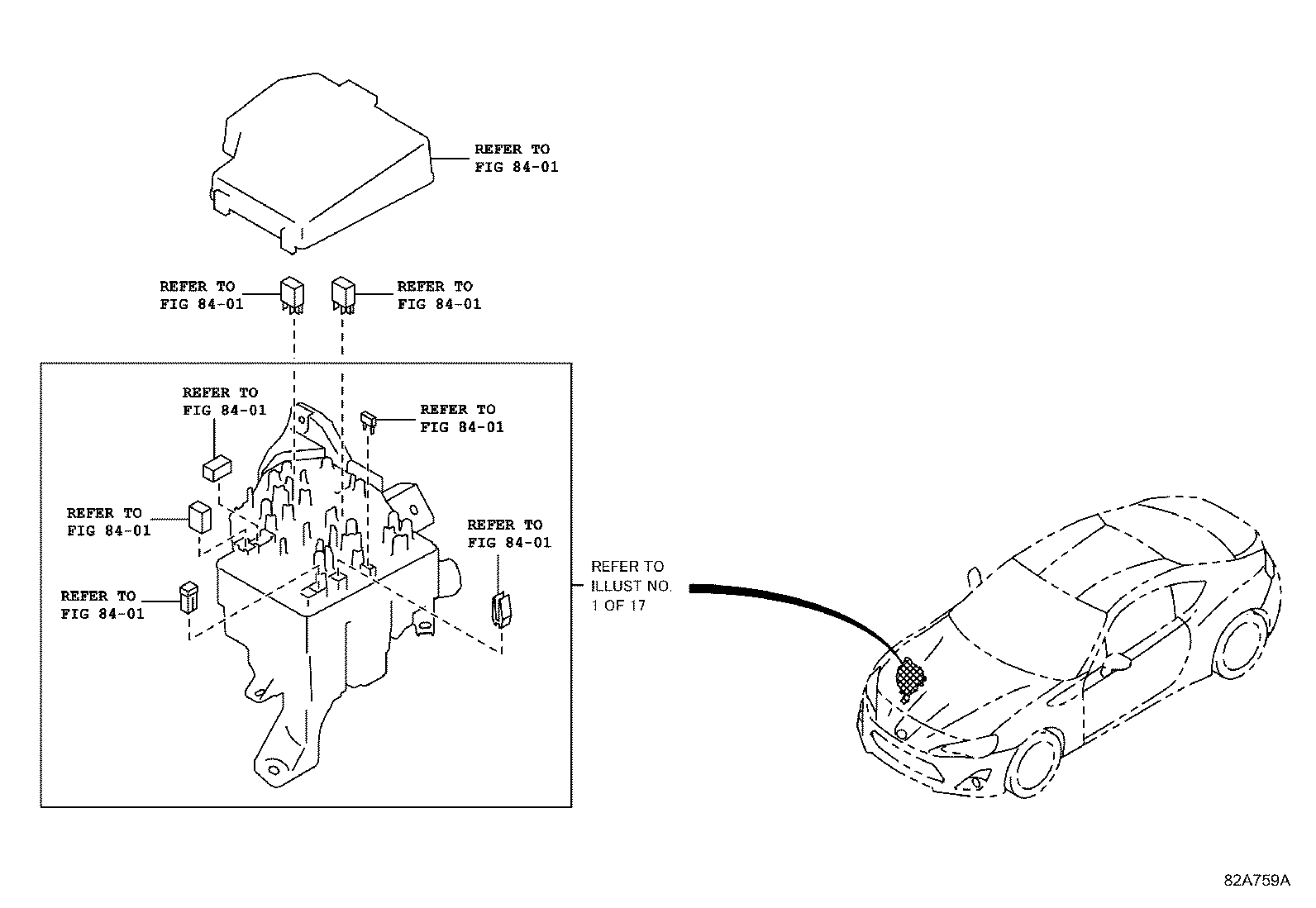

82111 Wire, Engine Room Main

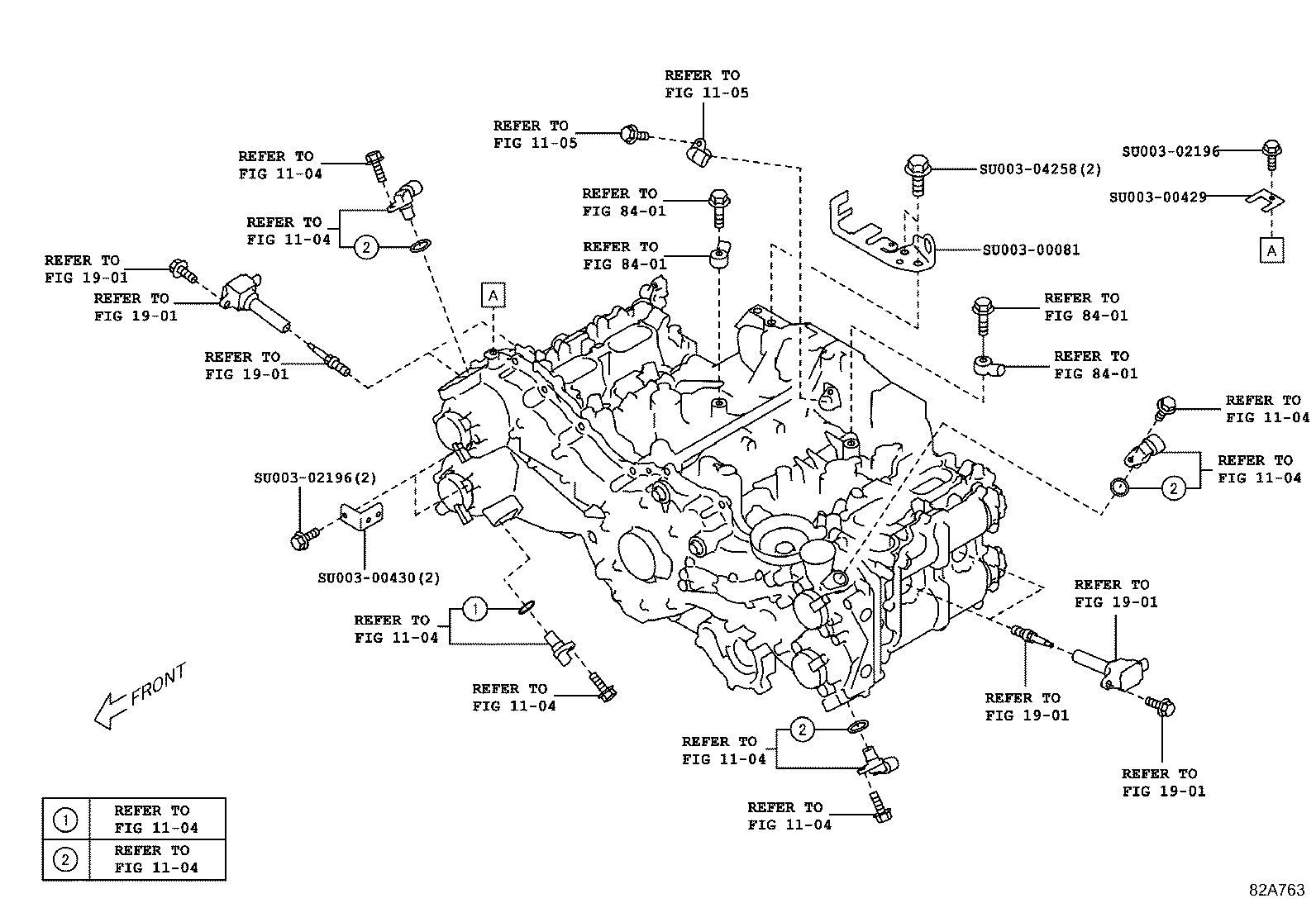

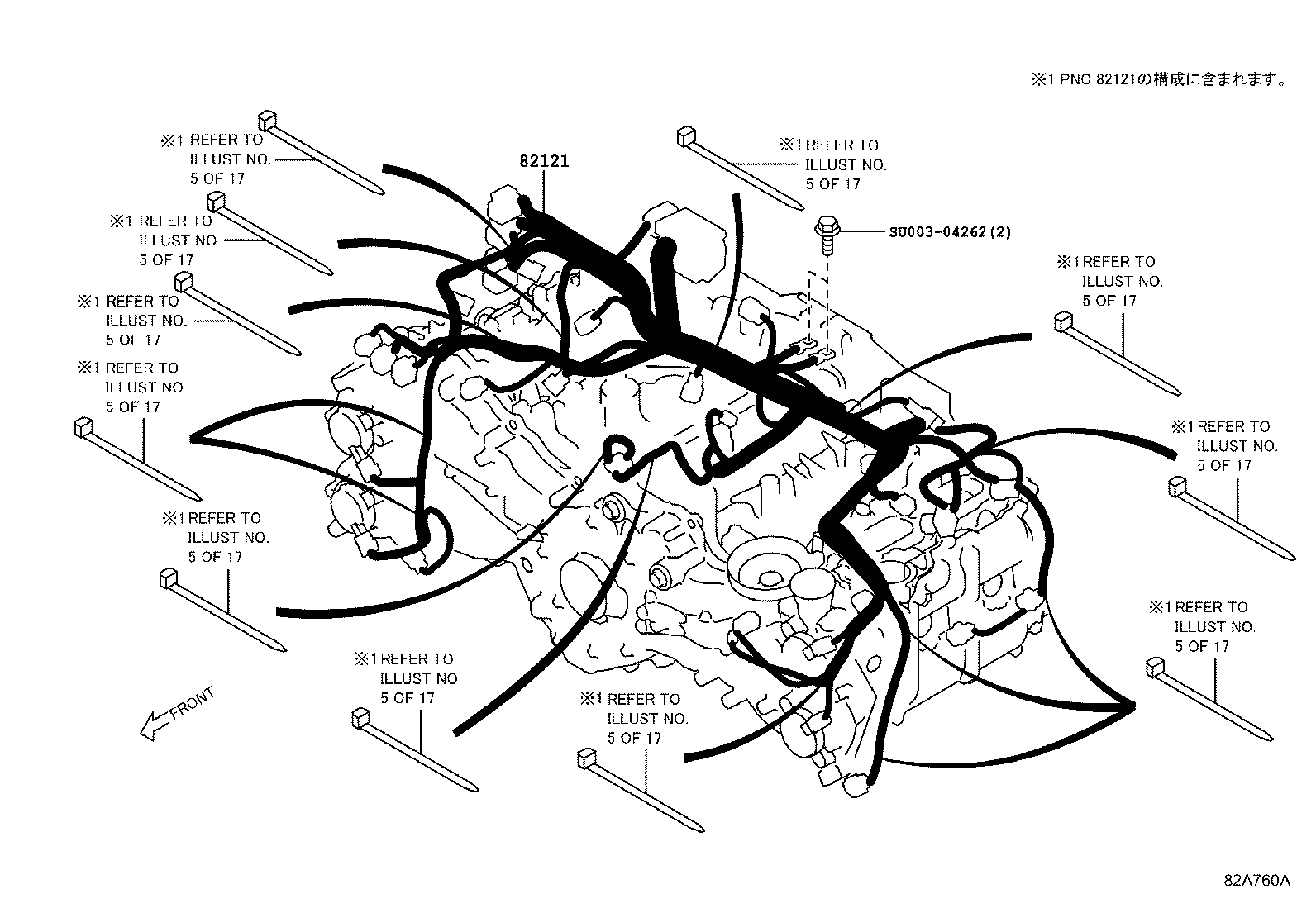

82121 Wire, Engine

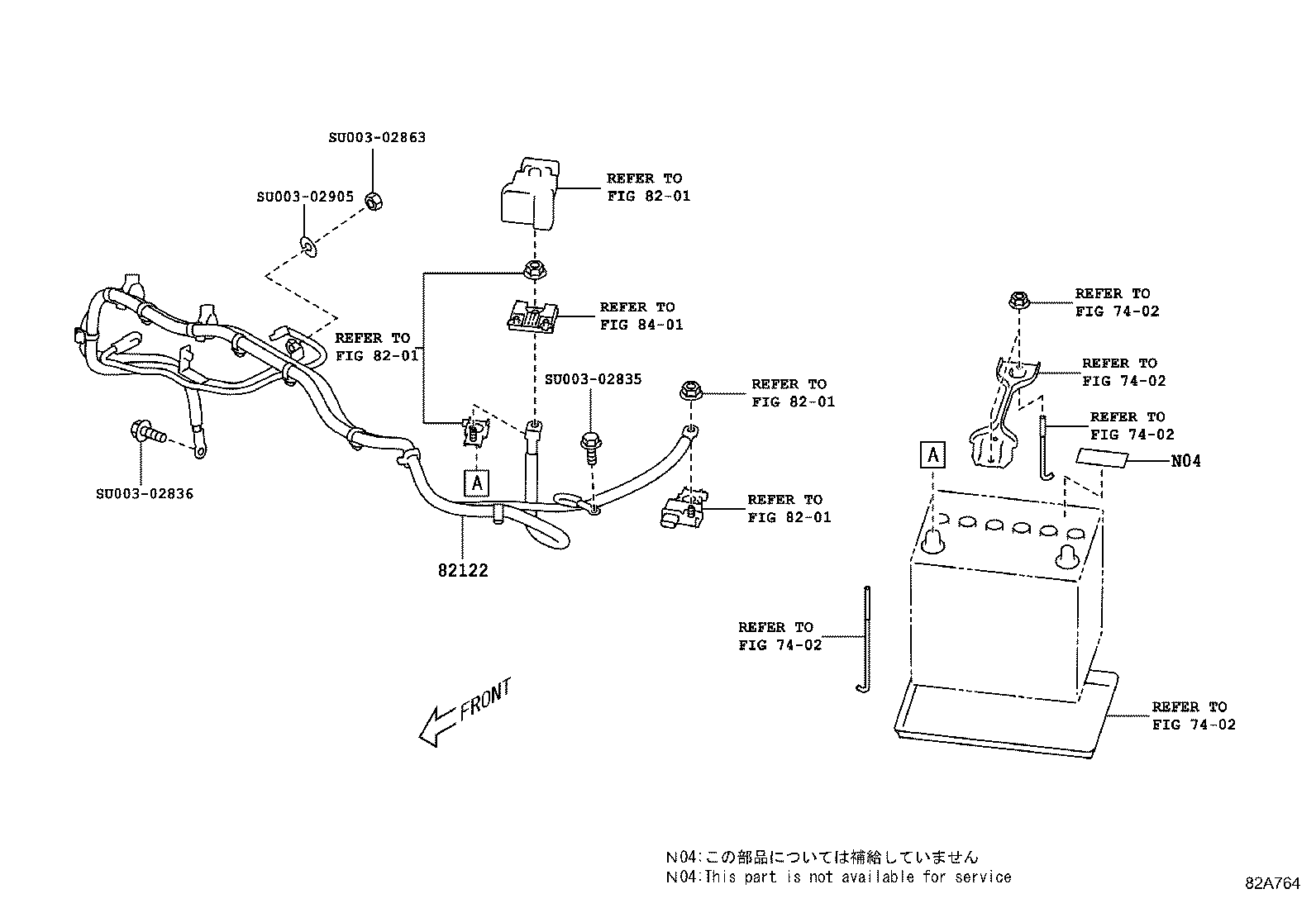

82122 Wire, Engine, NO.2

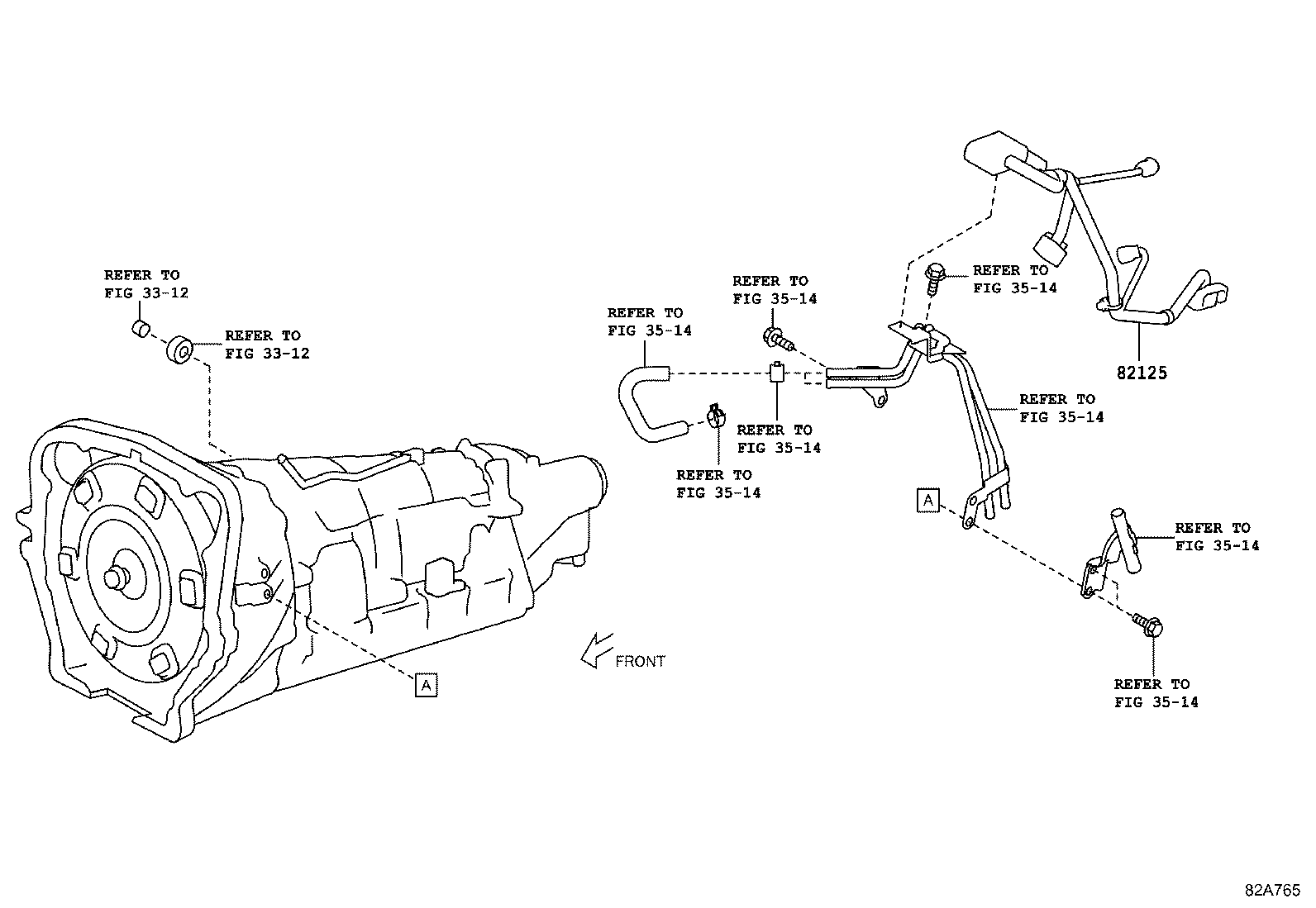

82125 Wire, Transmission

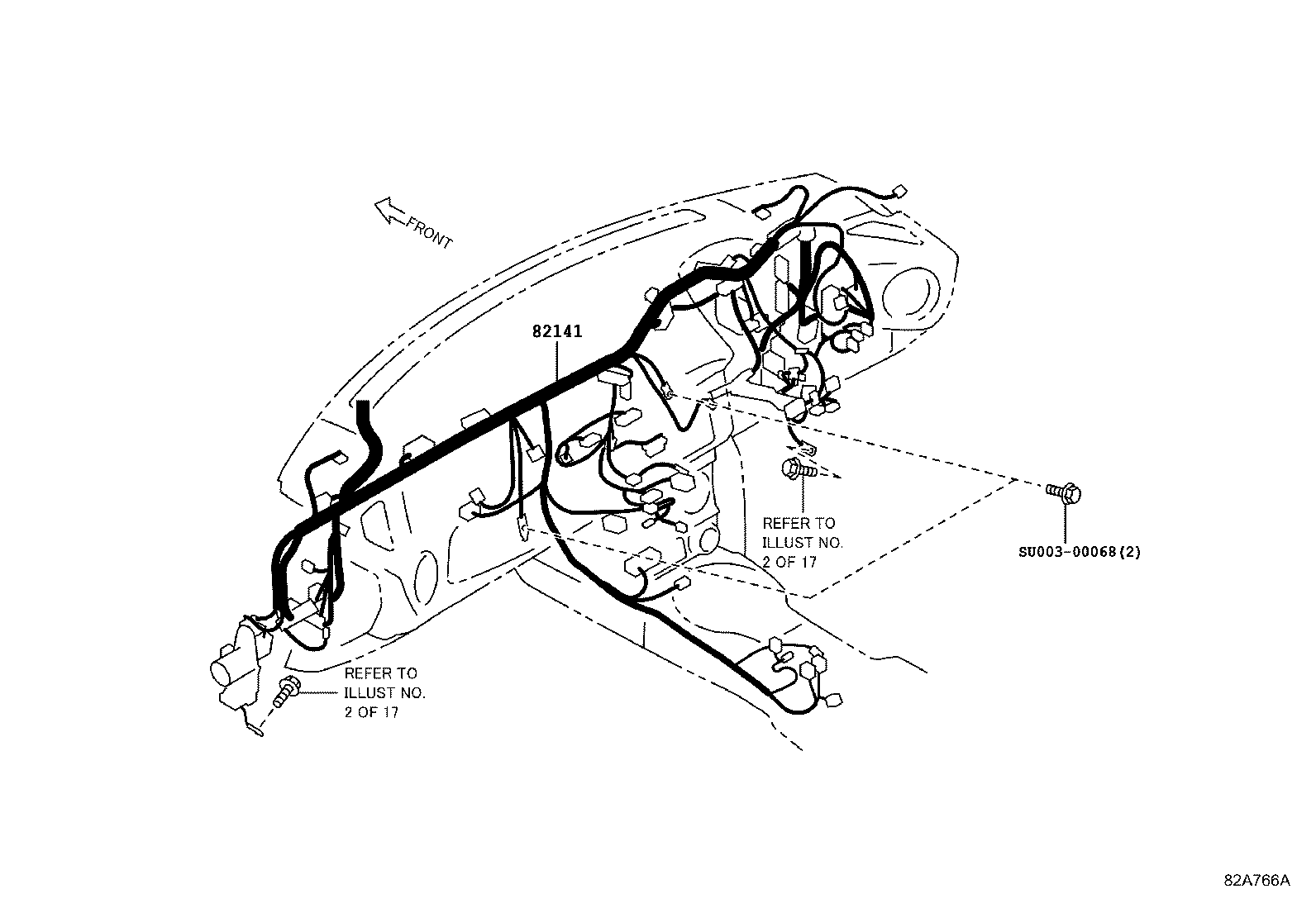

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

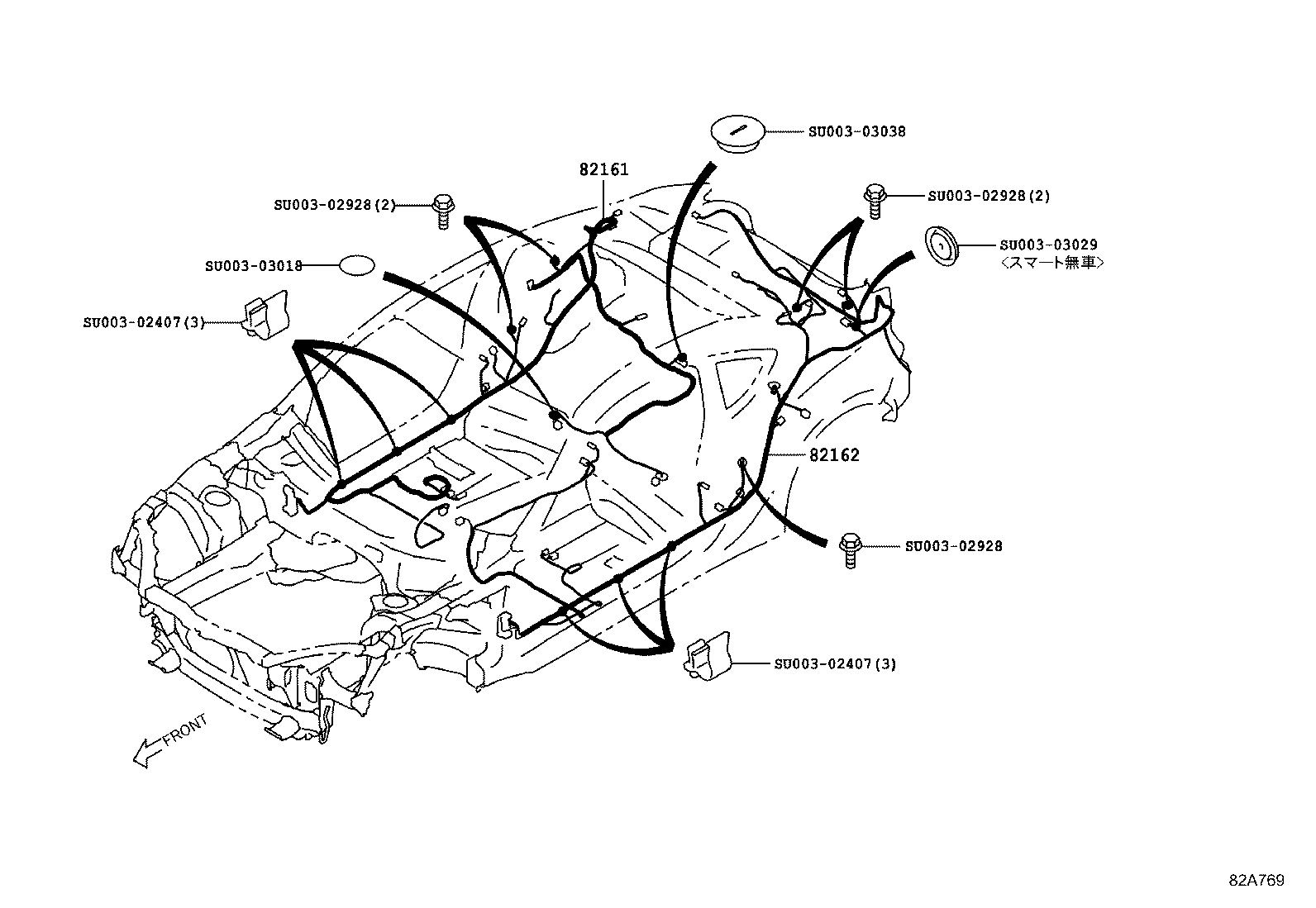

82161 Wire, Floor
82162 Wire, Floor, NO.2

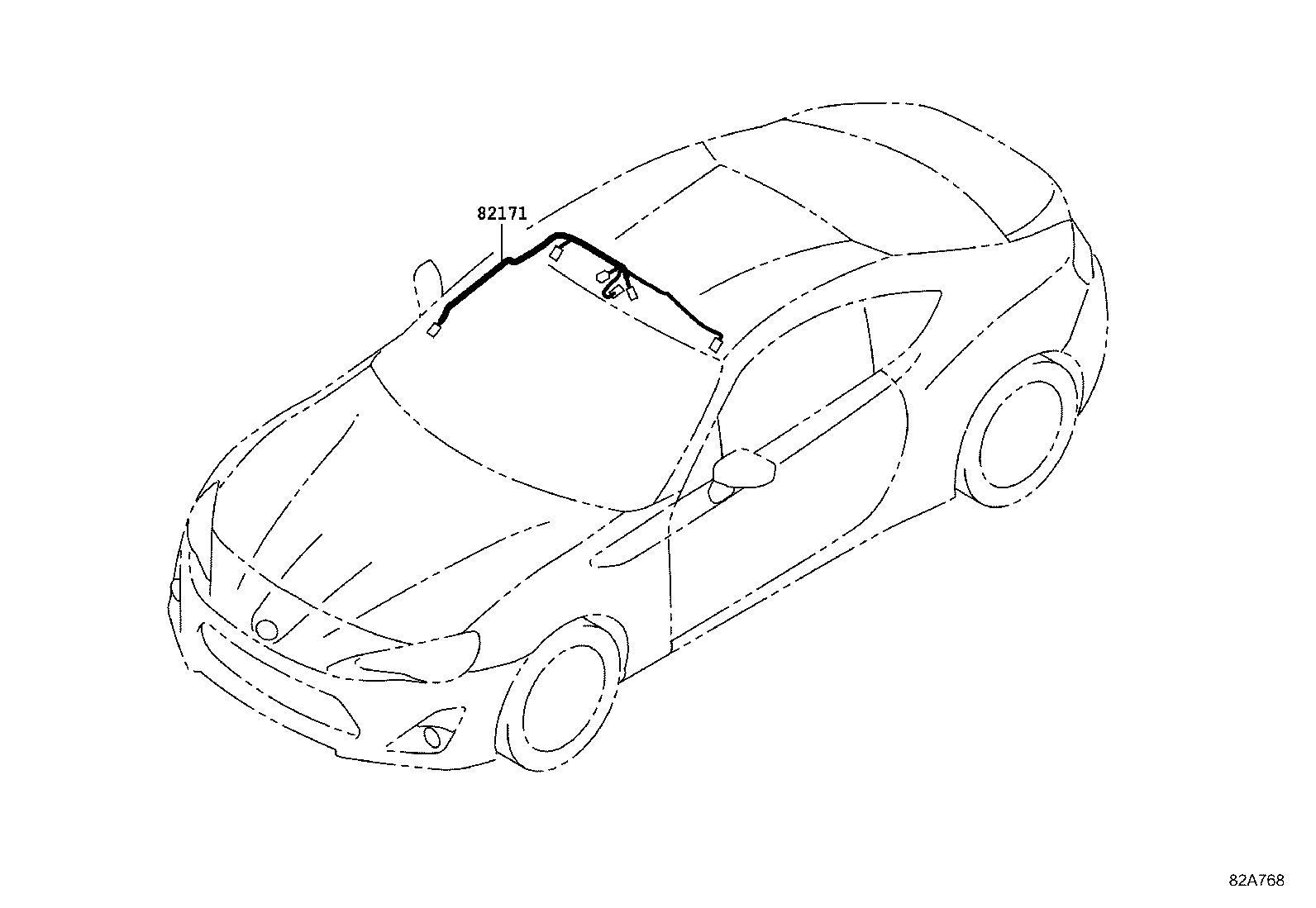

82171 Wire, Roof, NO.1

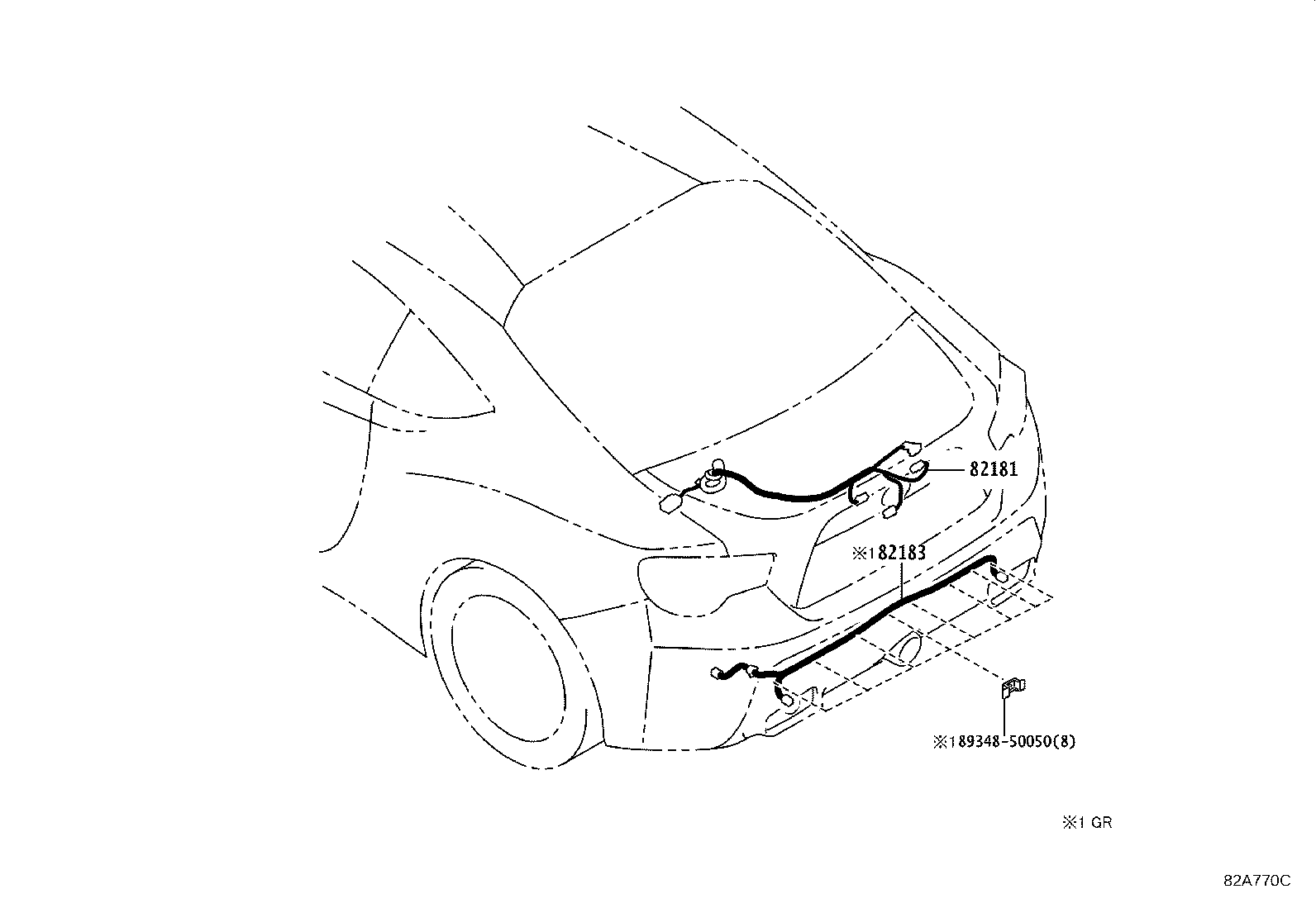

82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3

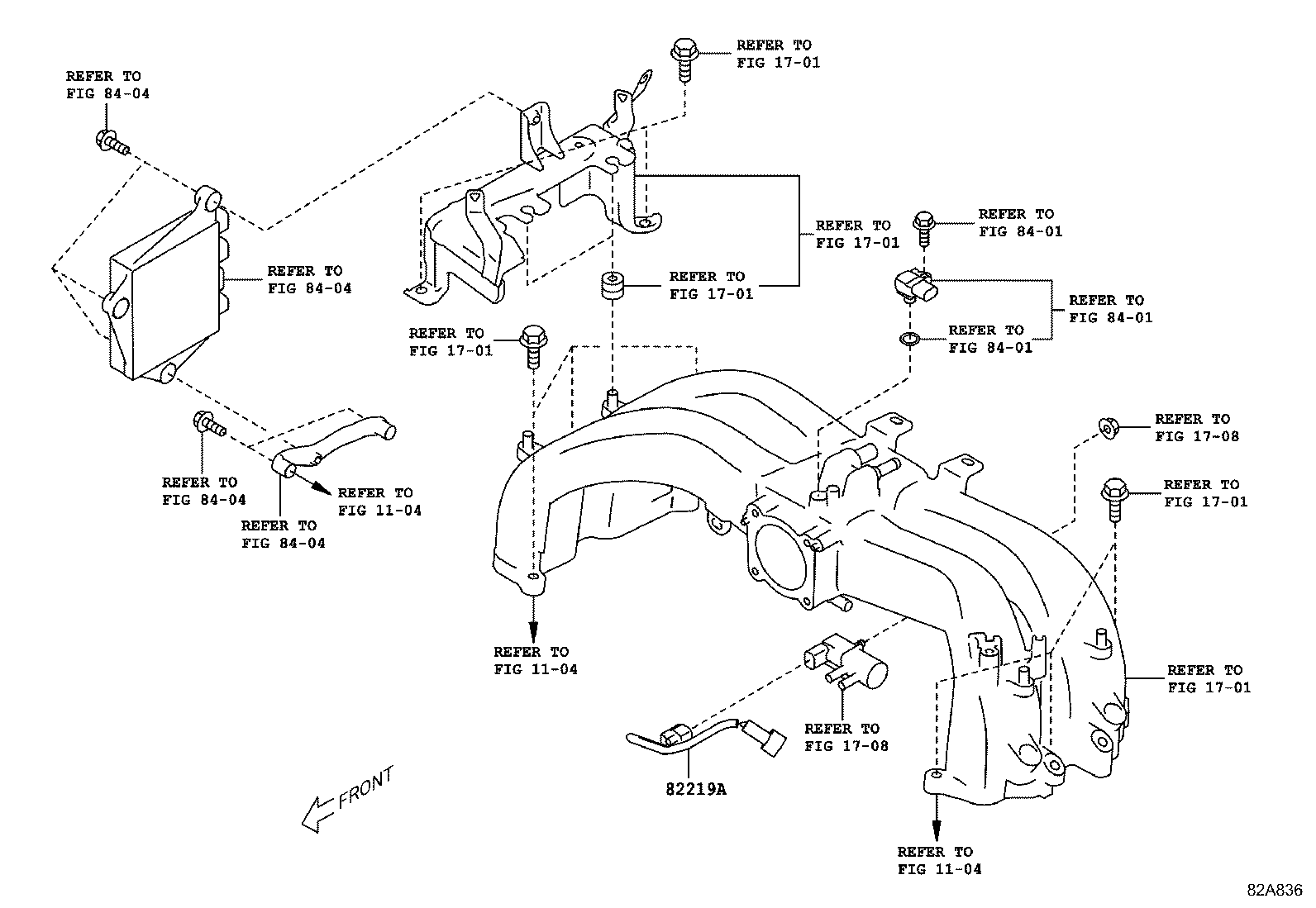

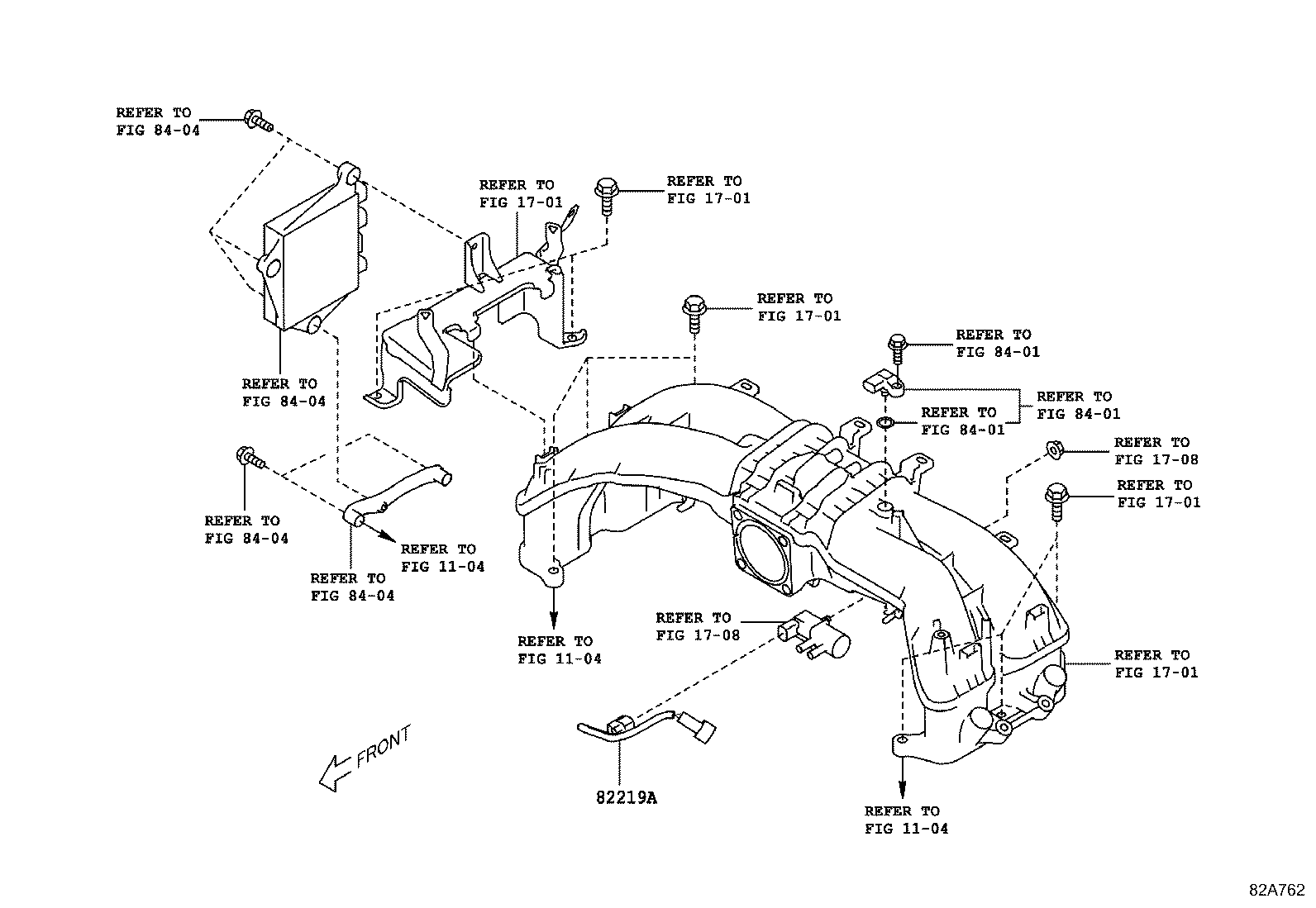

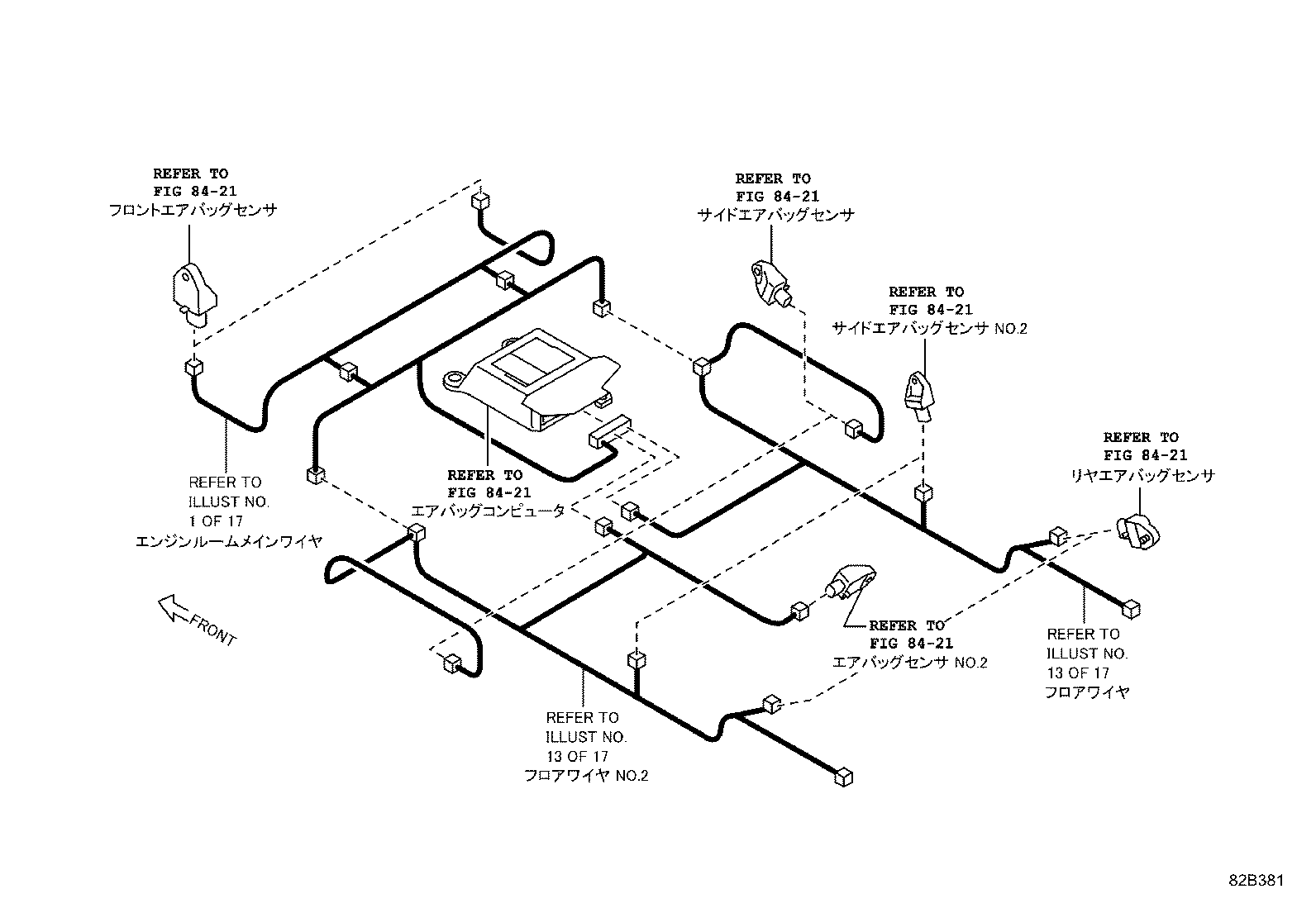

82219A Wire, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
