Toyota GR 86
2021-10 → present · chassis ZN8 · catalogue 264130 · Japan
Supported model
Data version 2024-10
Standard Tool

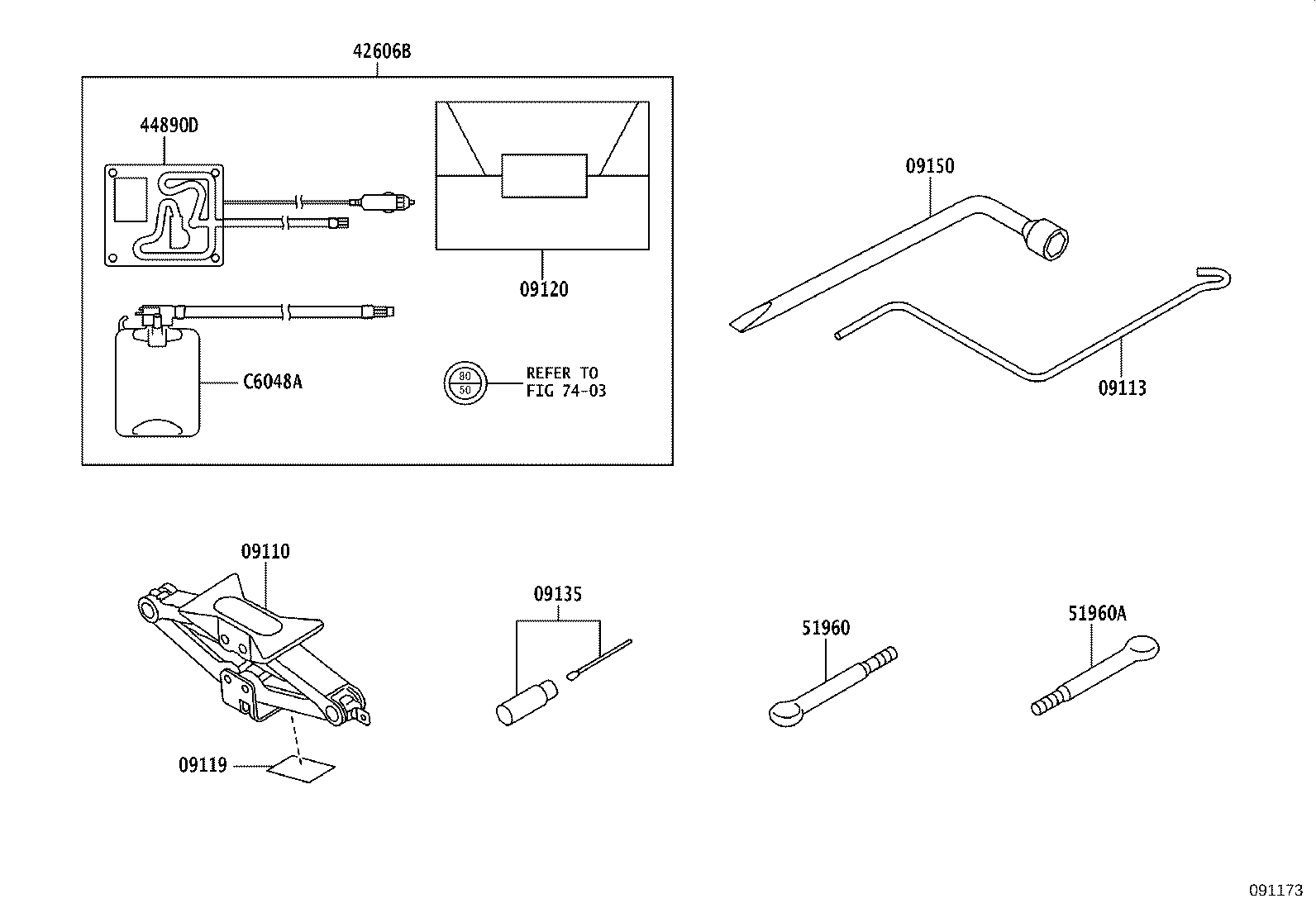

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09105 | Box Set, Jack |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09119 | Label, Jack Caution |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 09184 | Stopper, Wheel |
| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| 51960A | Hook Assy, Rear |
| C6048A | Sealant, Repair Tire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
