Toyota GR 86

2021-10 → present · chassis ZN8 · catalogue 264130 · Japan

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

30 part groups · 3 illustrations

Illustrations

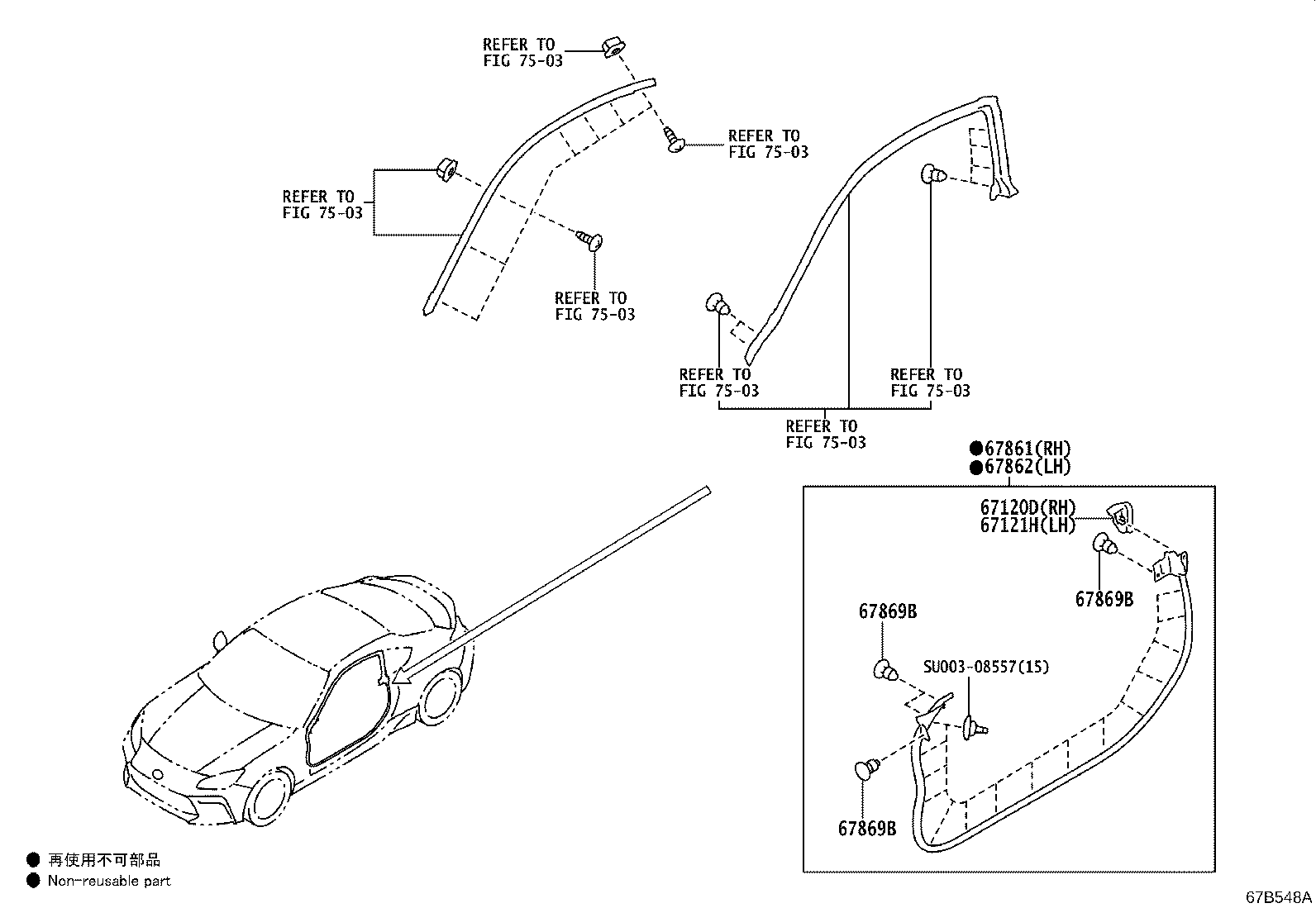

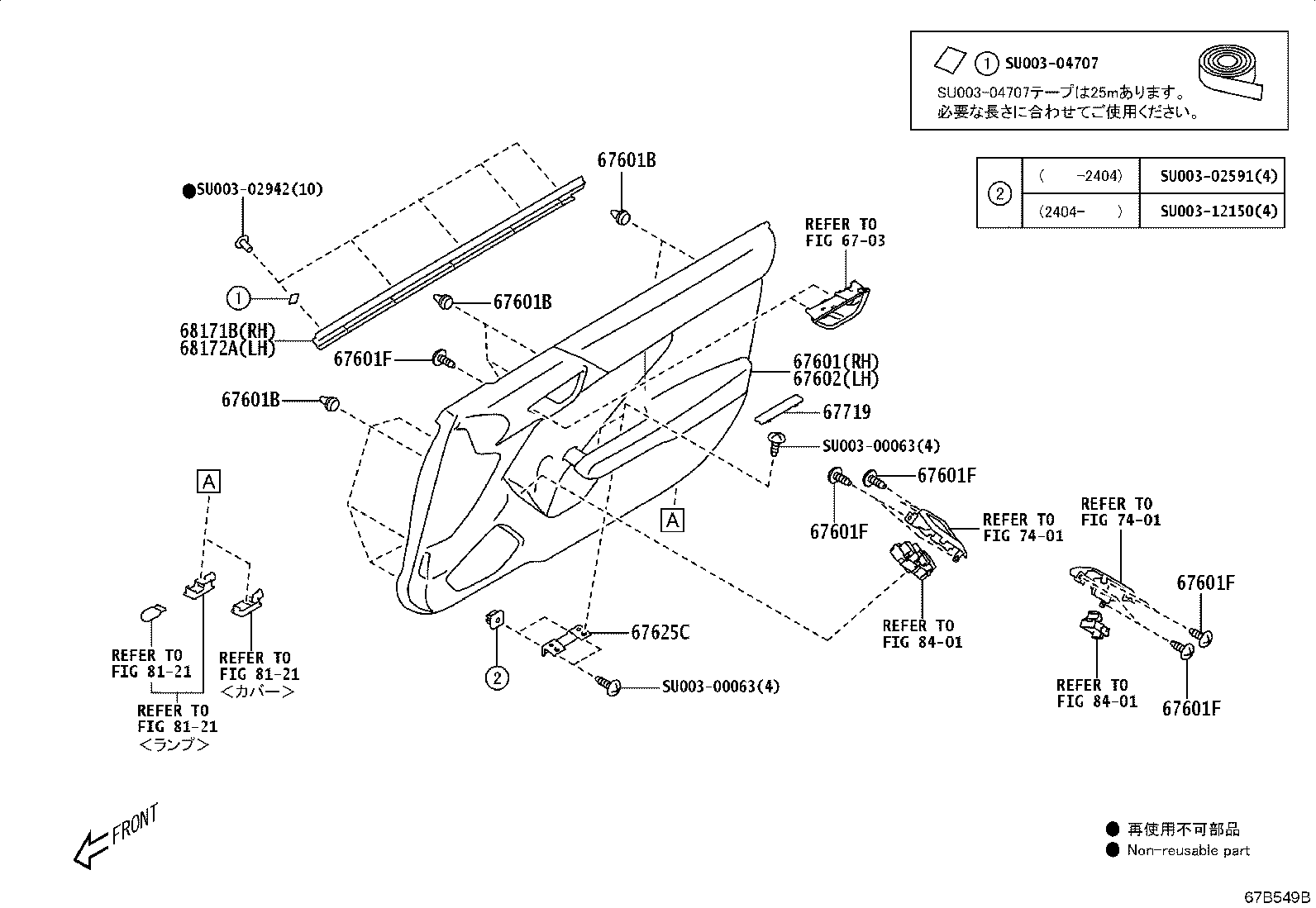

Figure 67B547A 67B547A 2021-10 → — Figure 67B548A 67B548A 2021-10 → — Figure 67B549B 67B549B 2021-10 → —

Part groups

PNCDescription
62616 Stopper, Front Door Sash
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67120D Stopper, Front Door Window
67121H Stopper, Front Door Window
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67469 Protector, Front Door Guide
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601F Screw(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625C Bracket, Door Trim, NO.1
67719 Cover, Front Door Trim Cover
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67869B Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68125 Glass, Front Door Fix Window, RH
68126 Glass, Front Door Fix Window, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
