Toyota 86 Grmn
2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan
Supported model
Data version 2016-02

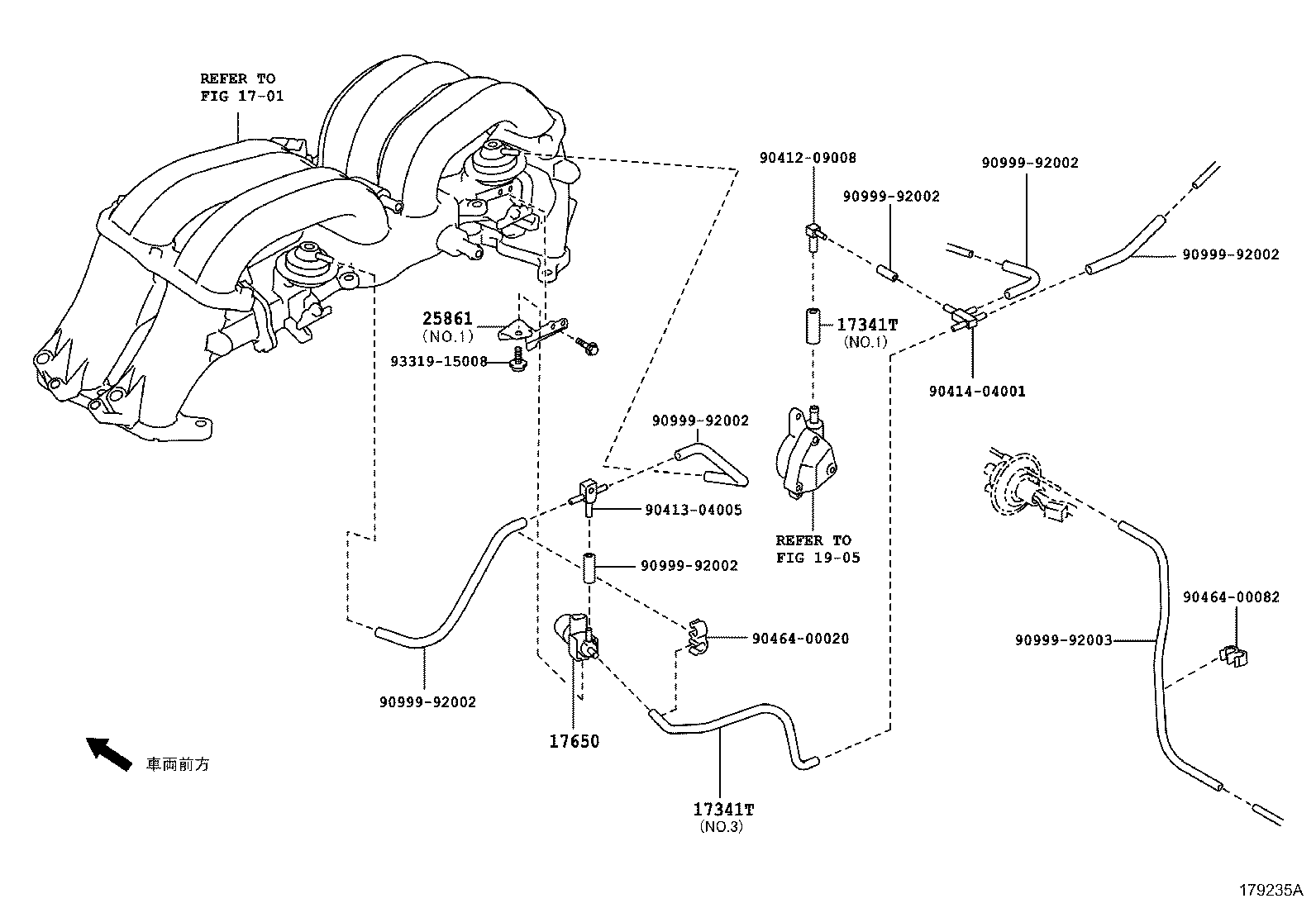

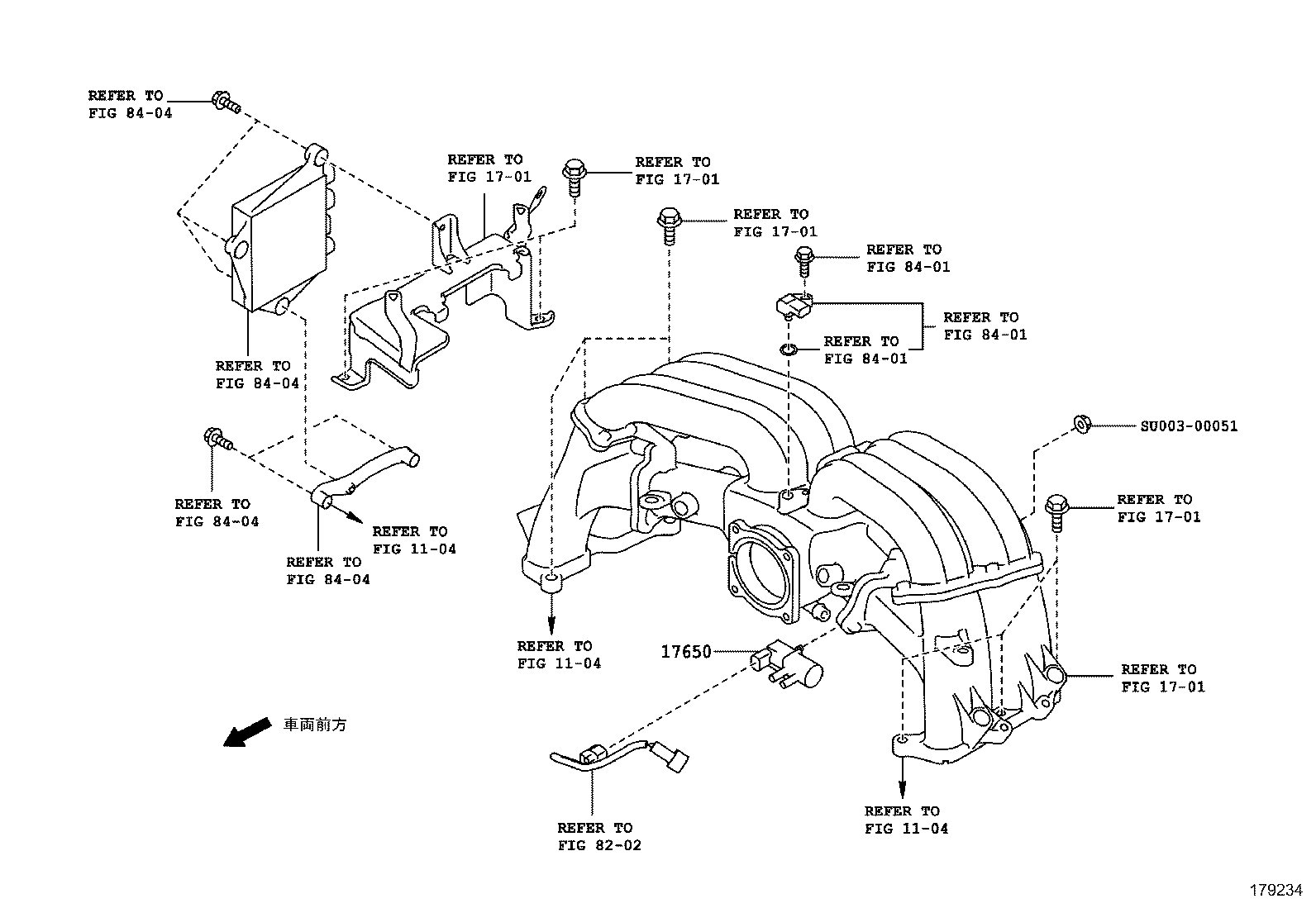

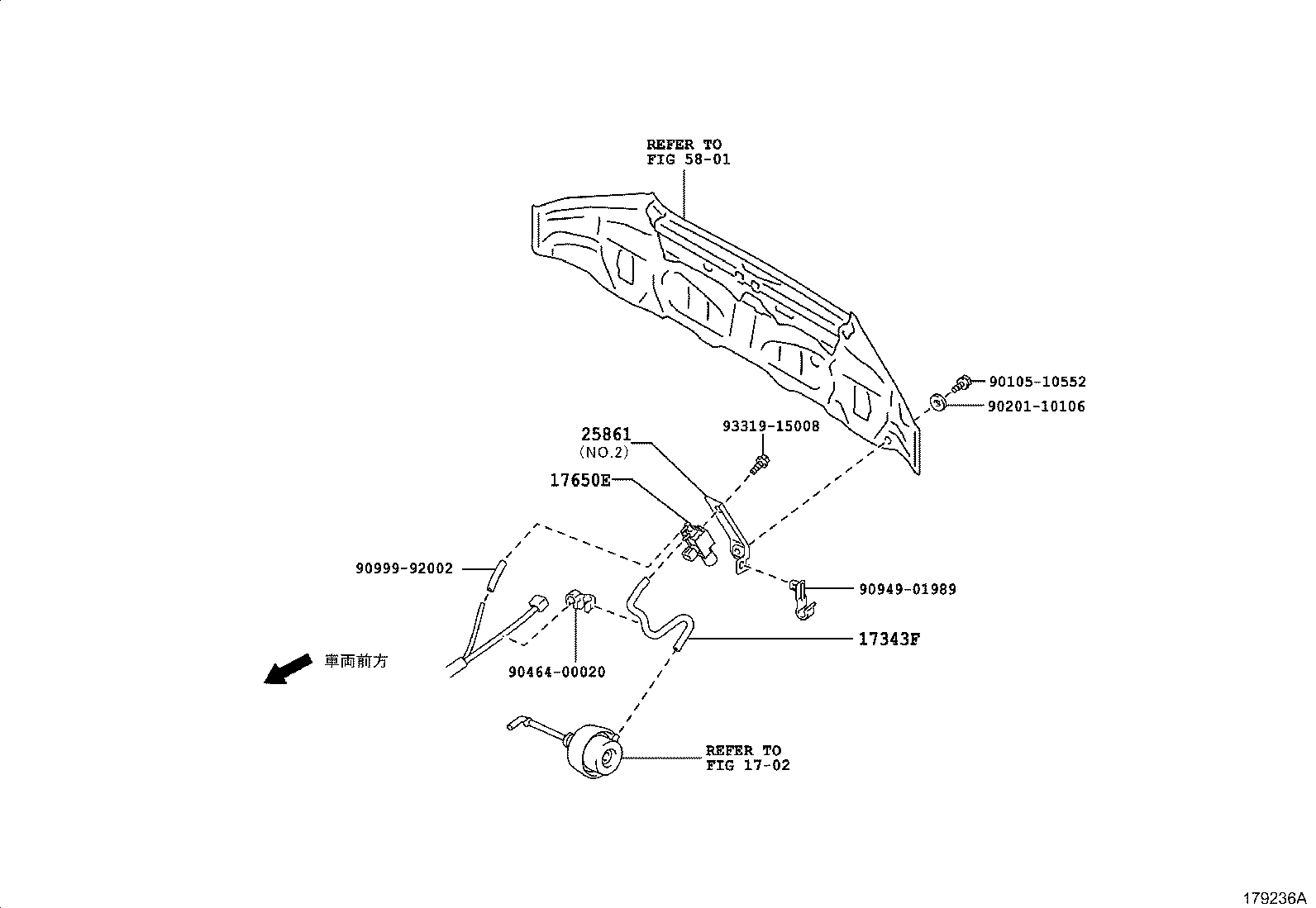

Vacuum Piping
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17308C | Clamp(FOR VACUUM HOSE) |
| 17341T | Hose, Air, NO.1 |
| 17343F | Hose, Air, NO.3 |
| 17650 | Valve Assy, Vacuum Switching |
| 17650E | Valve, Vacuum Switching |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
