Toyota 86 Grmn

2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan

Supported model Data version 2016-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

7 part groups · 3 illustrations

Illustrations

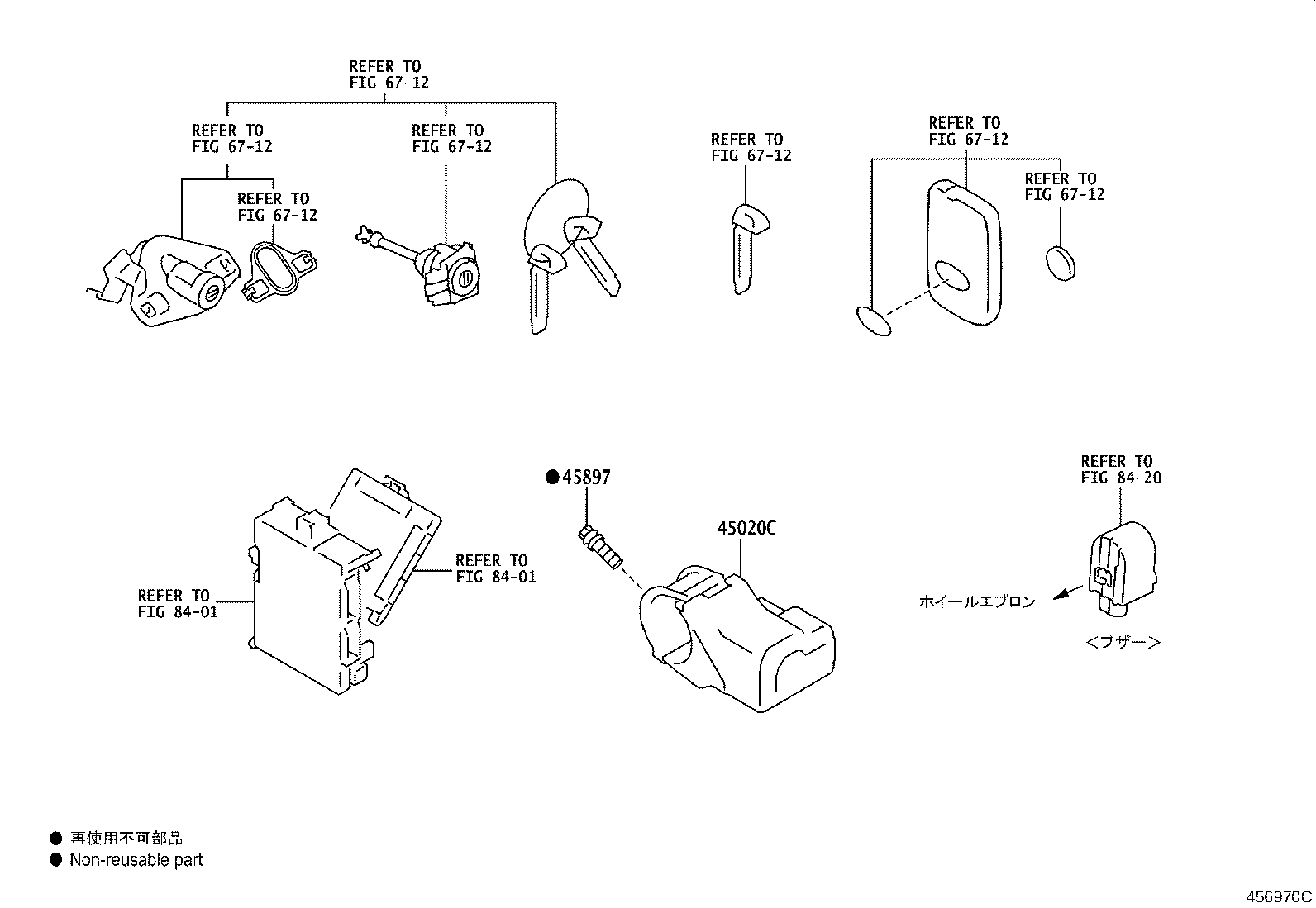

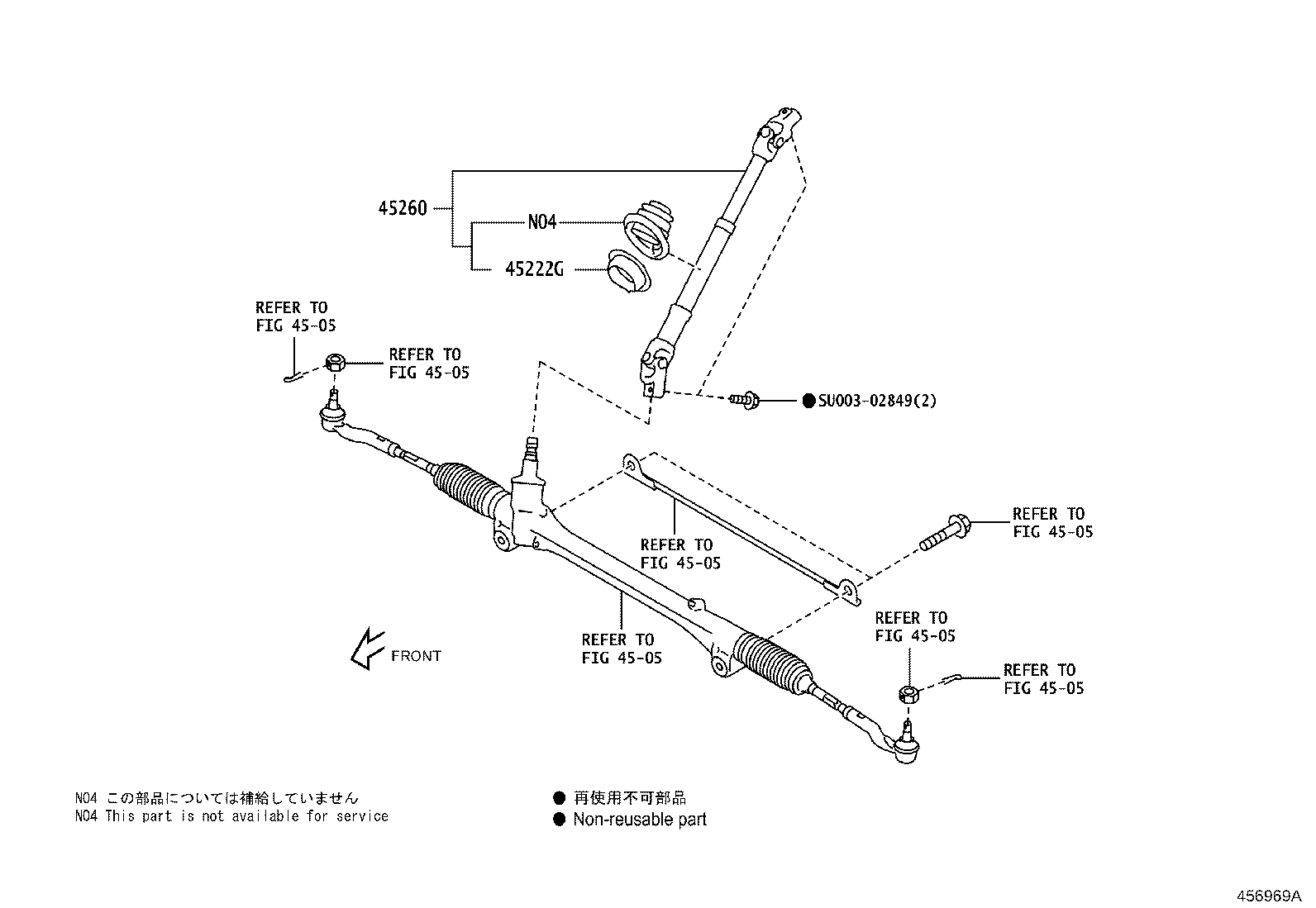

Figure 456968B 456968B 2016-02 → — Figure 456969A 456969A 2016-02 → — Figure 456970C 456970C 2016-02 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45222G Clip, Dust Cover
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45289A Support, Steering Column Cover
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
