Toyota 86 Grmn

2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan

Supported model Data version 2016-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

15 part groups · 2 illustrations

Illustrations

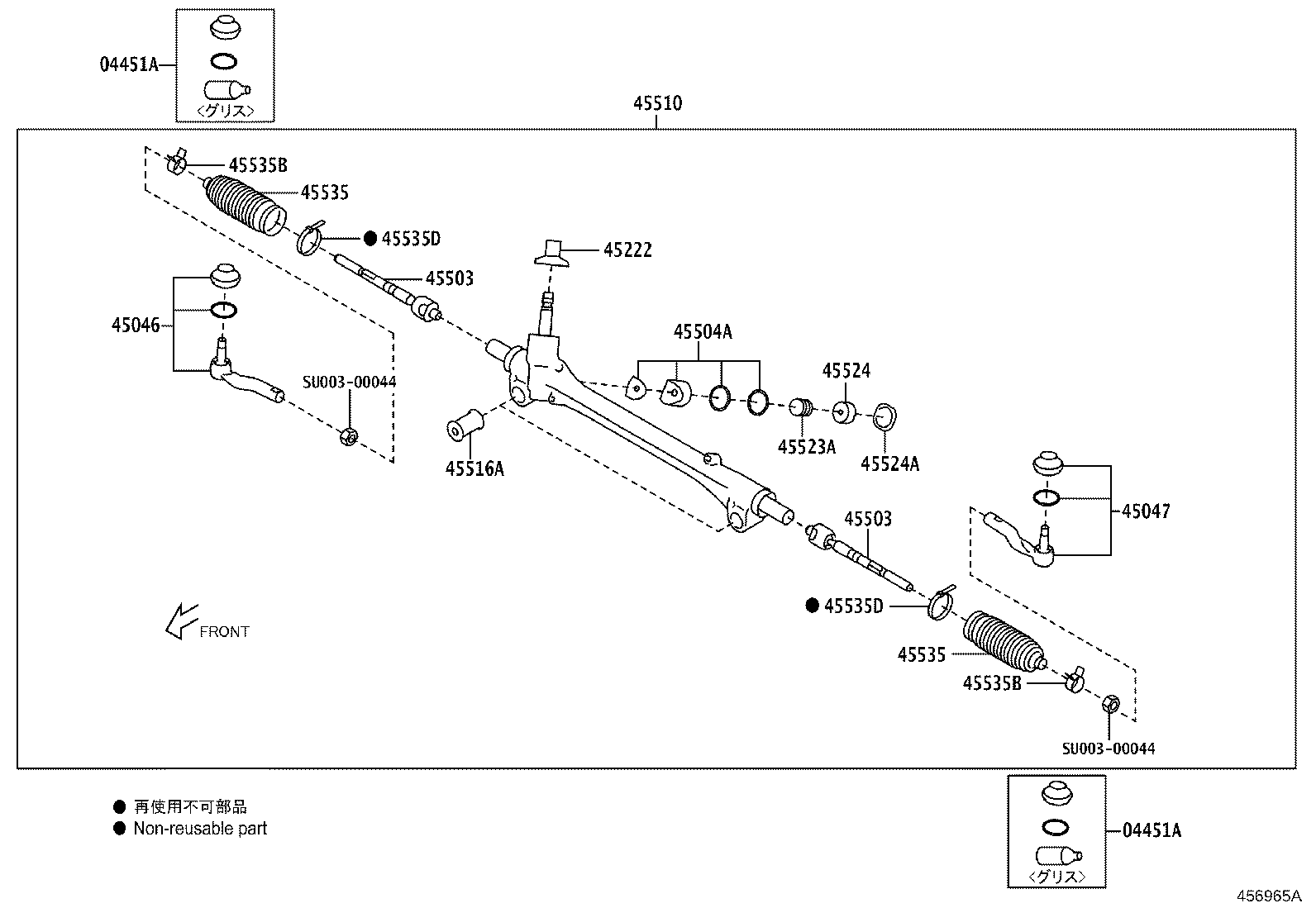

Figure 456964B 456964B 2016-02 → — Figure 456965A 456965A 2016-02 → —

Part groups

PNCDescription
04451A Repair Kit, Tie Rod End
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45222 Cover, Steering Gear Dust
45503 End Sub-assy, Steering Rack
45504A Guide Sub-assy, Rack
45510 Gear Assy, Steering
45516A Bush, Steering Rack Housing, NO.1
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45524 Cap, Steering Rack Guide Spring
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
