Toyota 86 Grmn
2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan
Supported model
Data version 2016-02
Hood & Front Fender
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53141G | Garnish, Radiator Grille, NO.1 RH |
| 53142D | Garnish, Radiator Grille, NO.1 LH |
| 53301 | Hood Sub-assy |
| 53378E | Seal, Hood Air Intake Duct, RH |
| 53379 | Seal, Hood Air Intake Duct, LH |
| 53381B | Seal, Hood TO Radiator Support, RH |
| 53382G | Seal, Hood TO Radiator Support, LH |

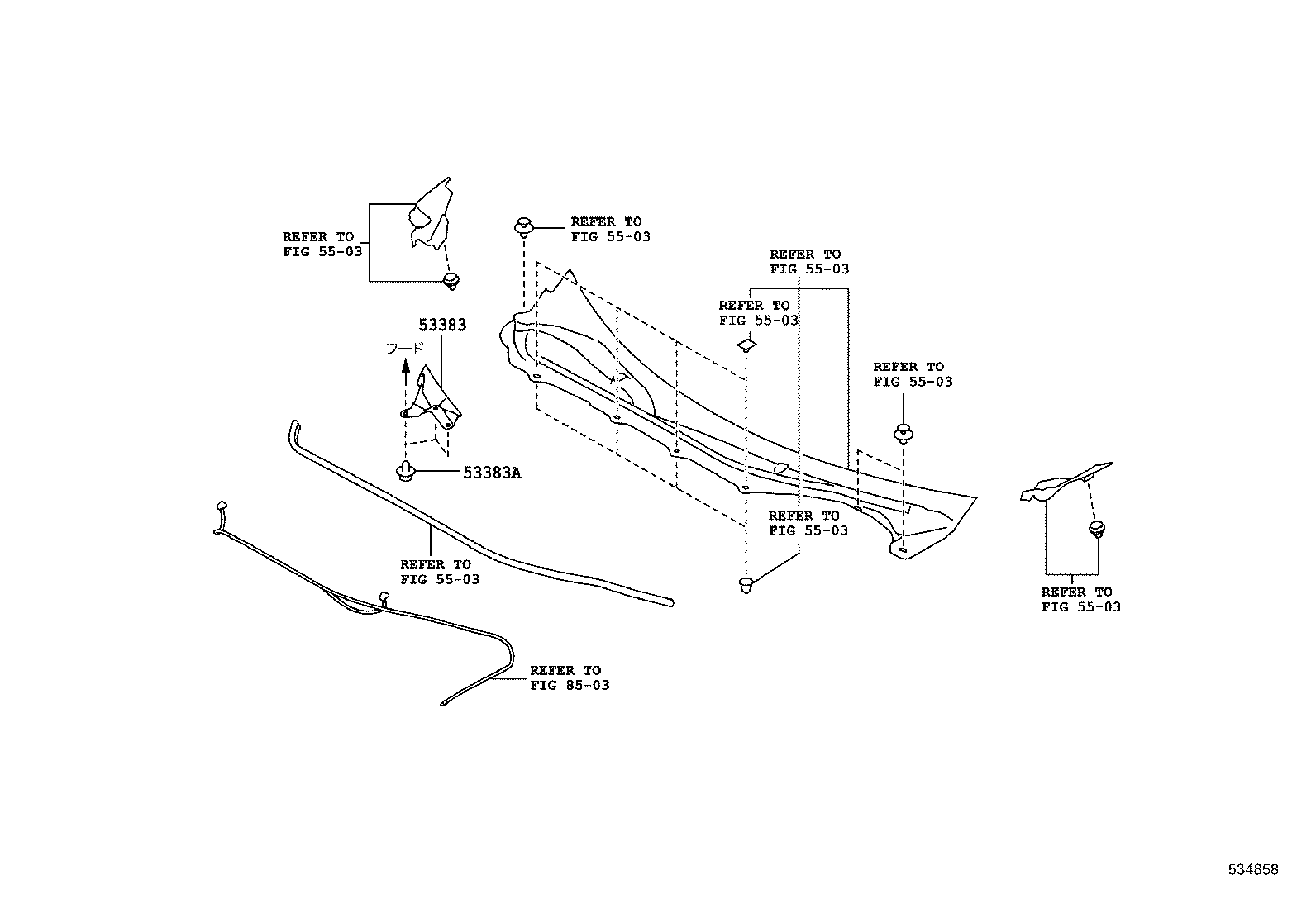

| 53383 | Seal, Hood TO Cowl Top |
| 53383A | Clip(FOR HOOD TO COWL TOP SEAL) |

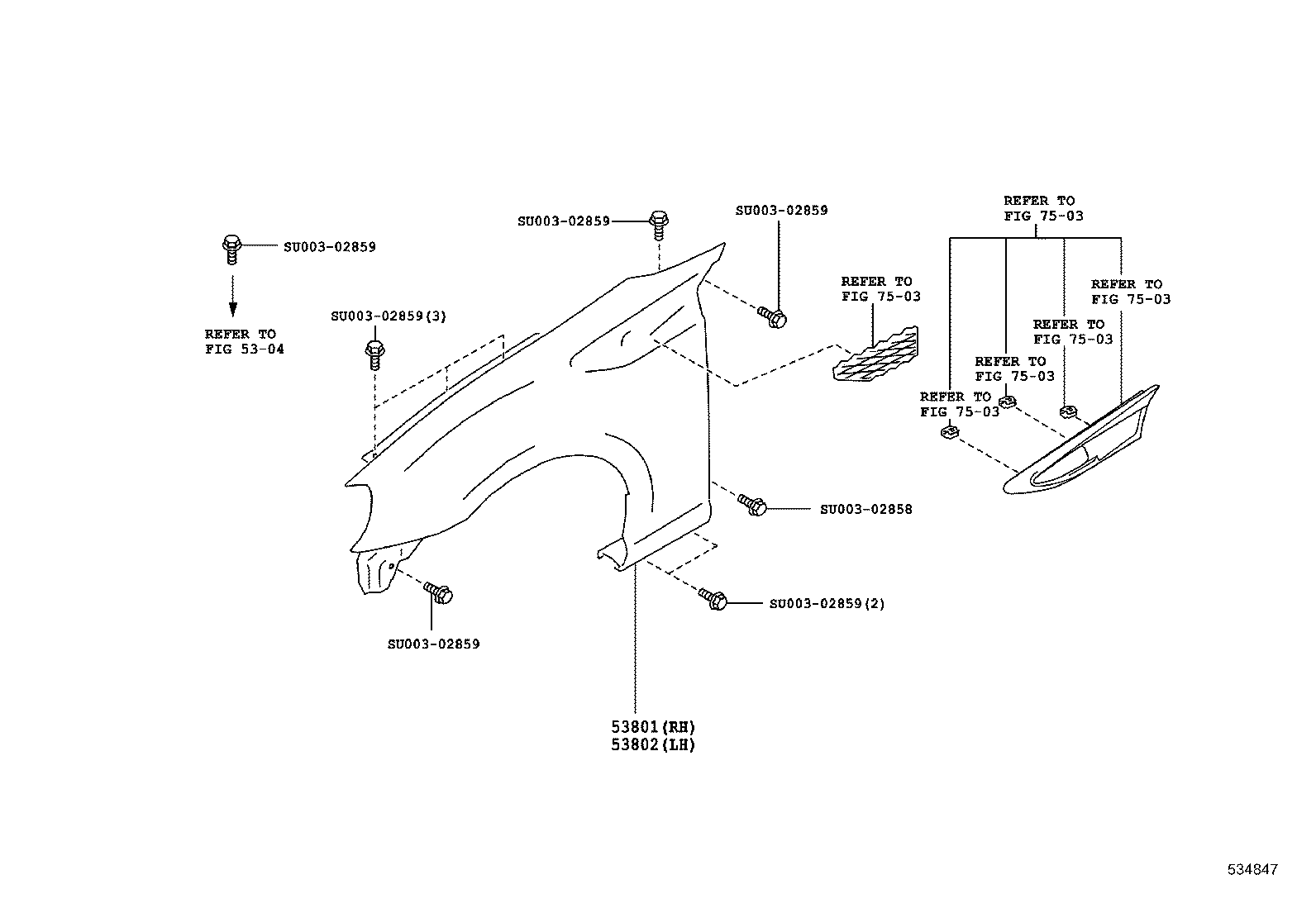

| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |

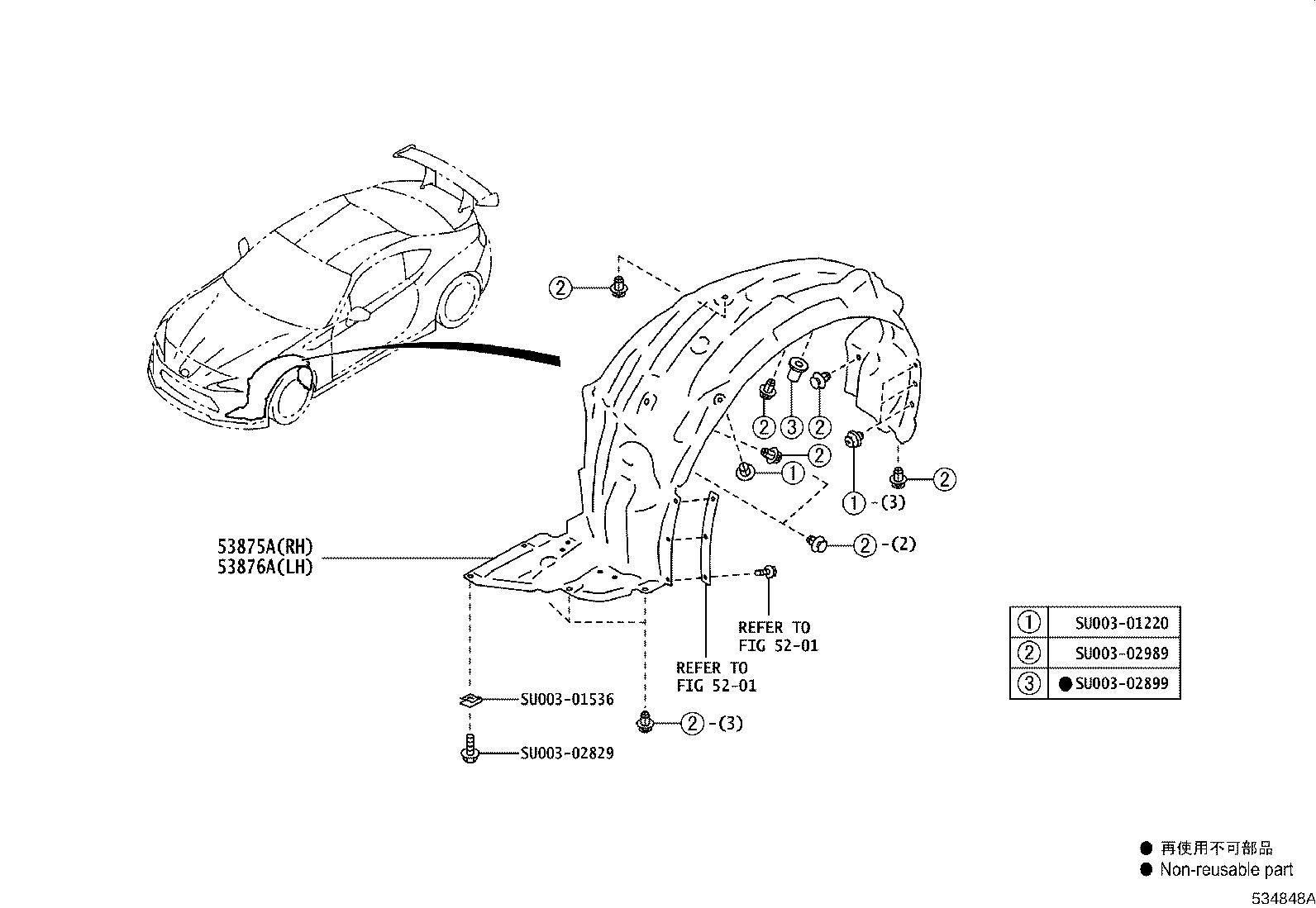

| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
