Toyota 86 Grmn

2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan

Supported model Data version 2016-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

25 part groups · 5 illustrations

Illustrations

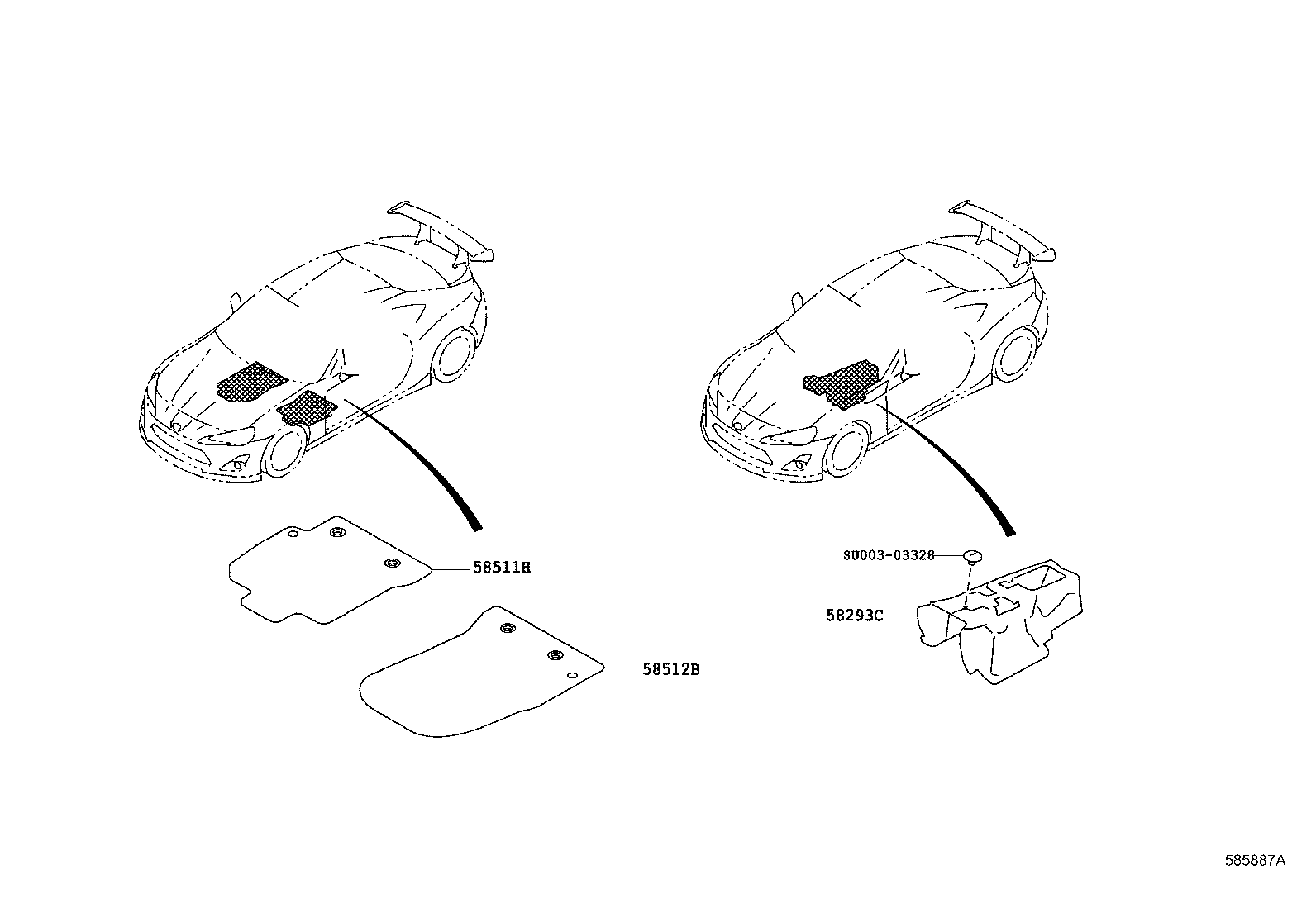

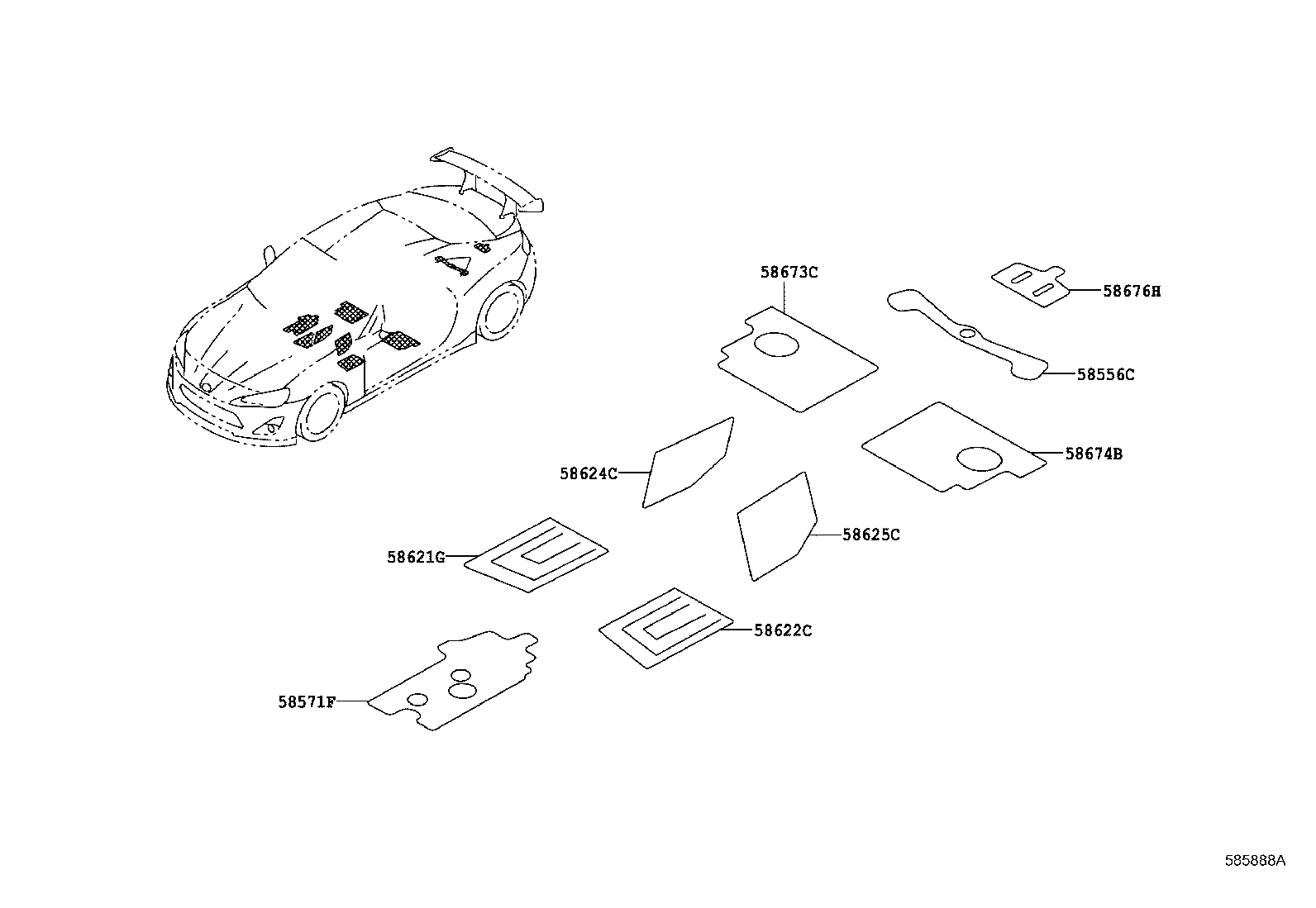

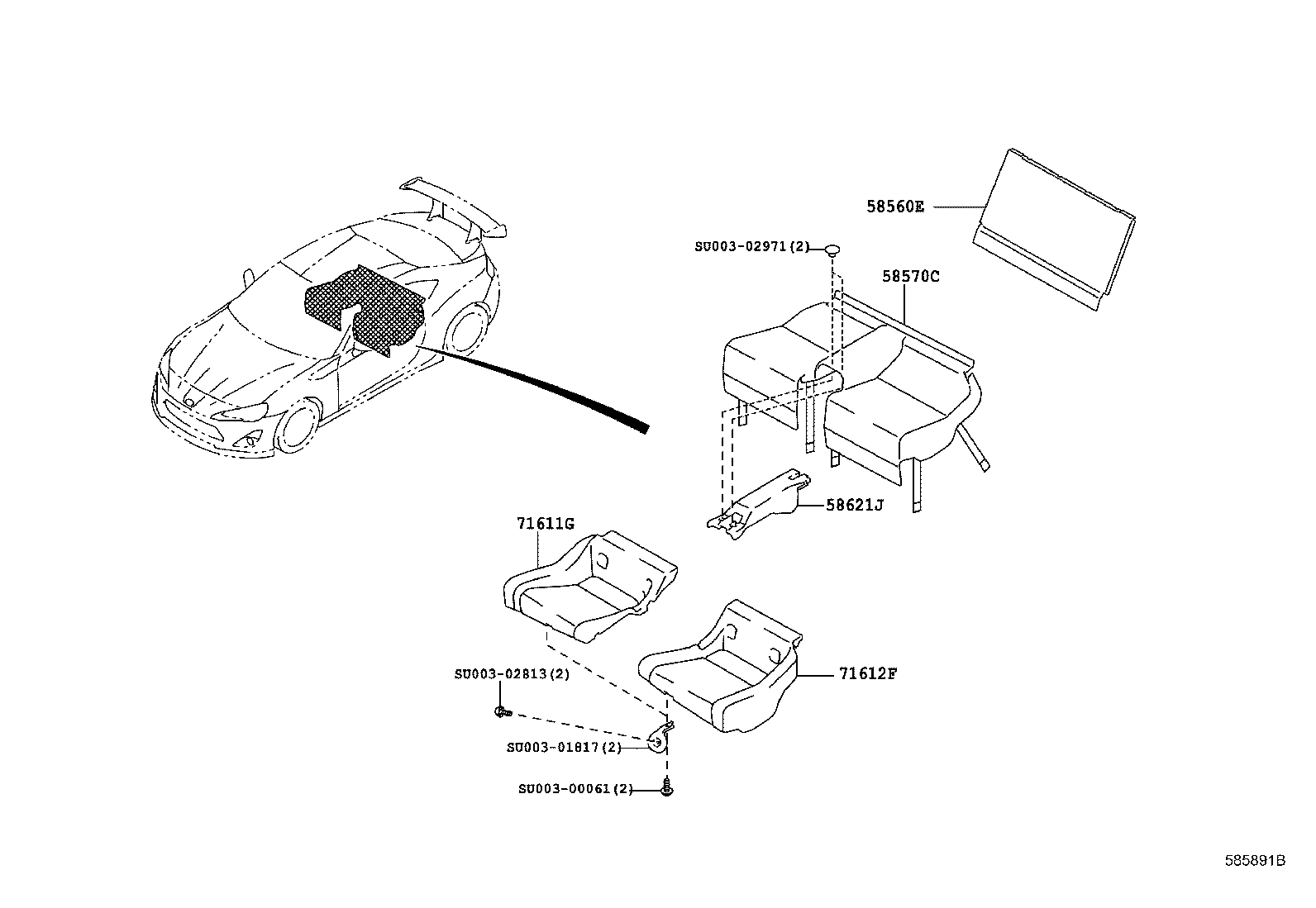

Figure 585886 585886 2016-02 → — Figure 585885 585885 2016-02 → — Figure 585887A 585887A 2016-02 → — Figure 585891B 585891B 2016-02 → — Figure 585888A 585888A 2016-02 → —

Part groups

PNCDescription
58190B Rest Assy, Front Floor Foot
58293C Pad, Front Floor
58510D Carpet Assy, Floor, Front
58510E Retainer, Floor Carpet
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58520C Clip(FOR FRONT FLOOR CARPET)
58530B Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58560B Clip(FOR FLOOR CARPET, REAR)
58560E Carpet Assy, Seat Floor
58570C Carpet Assy, Rear Floor
58571F Pad, Front Floor, Front
58621G Pad, Front Floor Silencer, RH
58621J Silencer, Center Console, NO.1
58622C Pad, Front Floor Silencer, LH
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58676H Pad, Rear Floor Silencer
58694A Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
71611G Pad, Rear Seat Cushion, RH
71612F Pad, Rear Seat Cushion, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
