Roof Panel & Back Window Glass

20 part groups · 3 illustrations

Illustrations

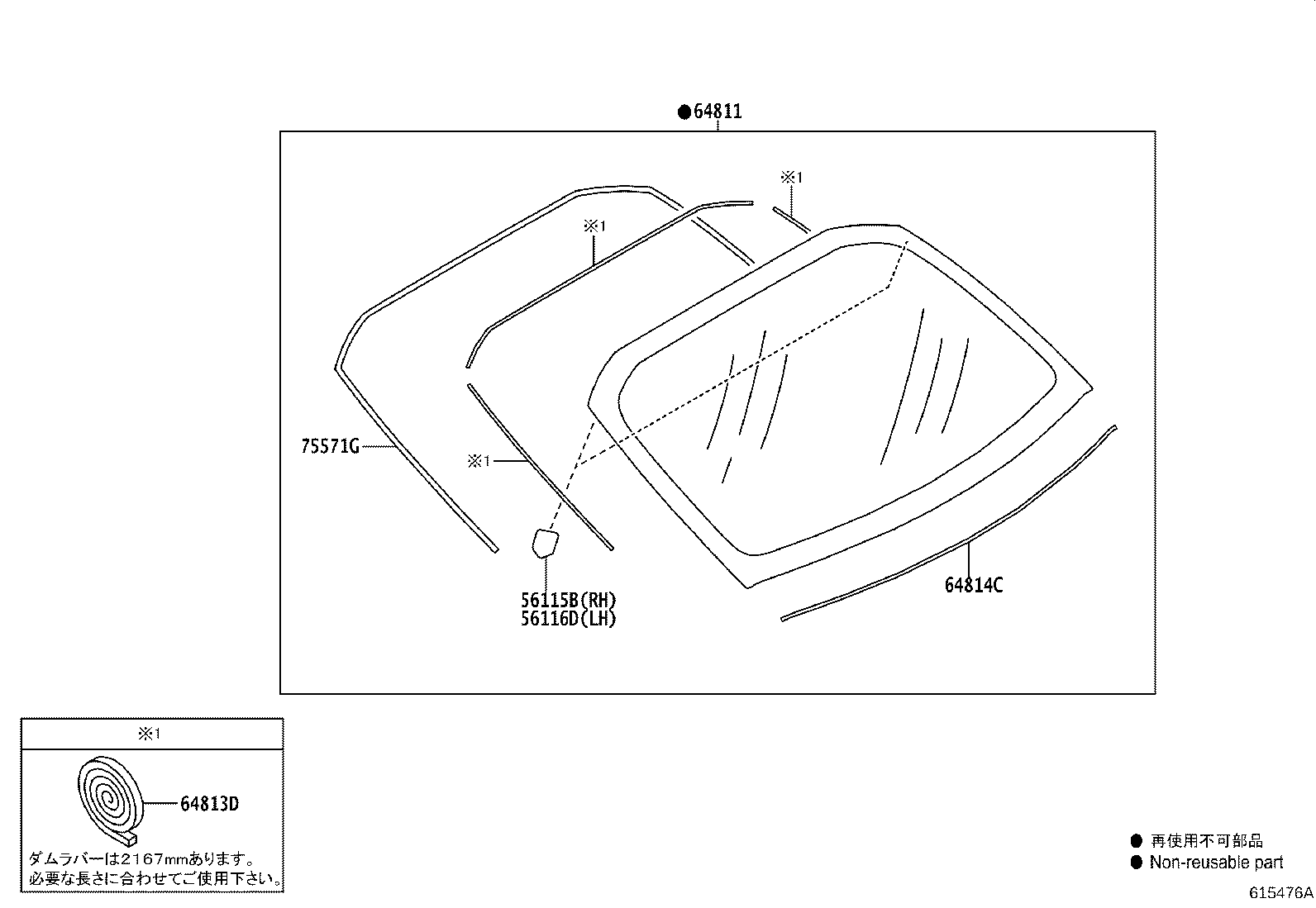

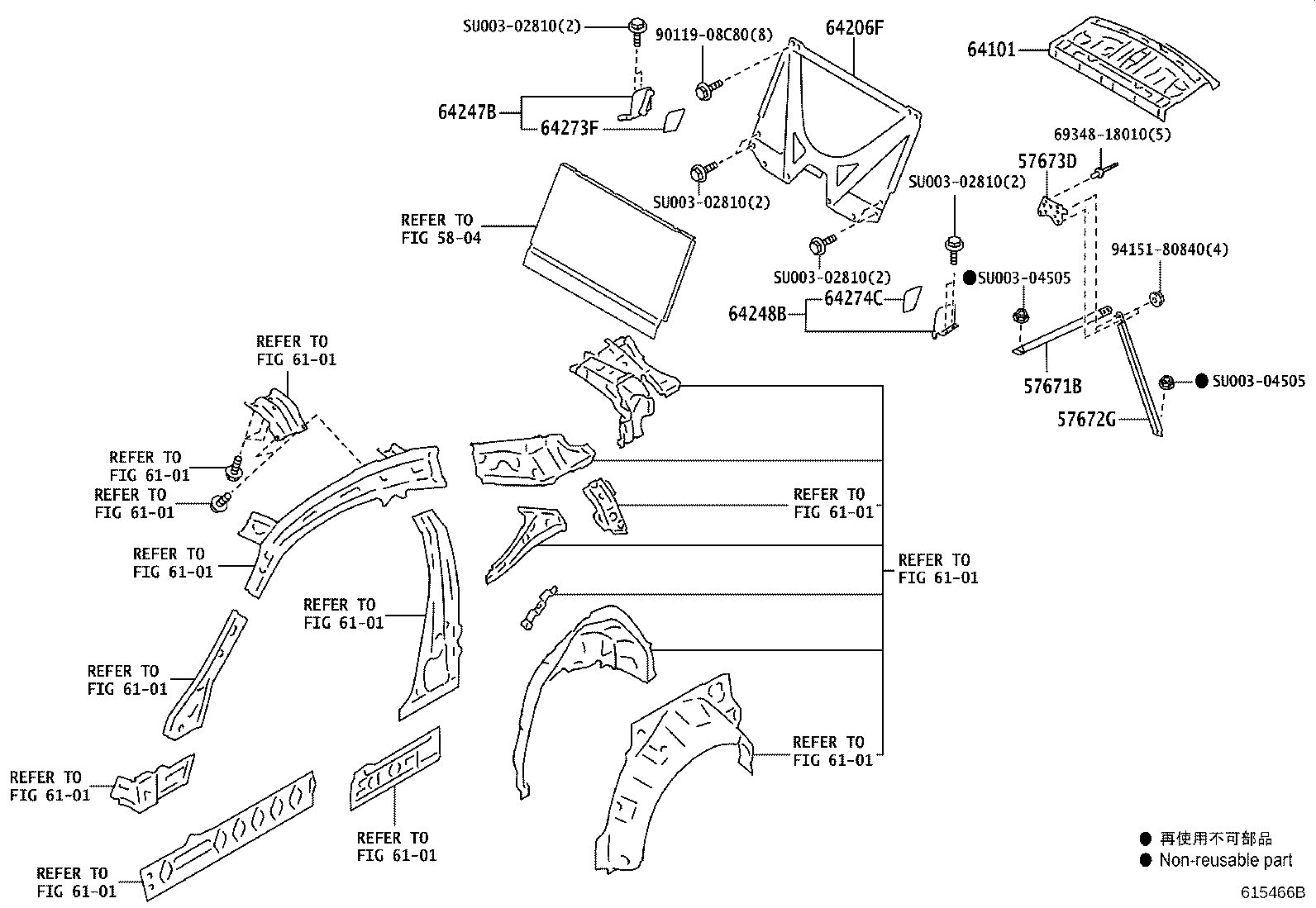

Figure 615467A 615467A 2016-02 → — Figure 615466B 615466B 2016-02 → — Figure 615476A 615476A 2016-02 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
57671B Brace, Rear Floor NO.1 Crossmember, RH
57672G Brace, Rear Floor NO.1 Crossmember, LH
57673D Bracket, Rear Seatback Hinge Mounting
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63123C Reinforcement, Roof Panel
63141H Reinforcement, Roof Panel, Center
63143A Reinforcement, Roof Panel
64101 Panel Sub-assy, Upper Back
64206F Panel Sub-assy, Room Partition
64247B Bracket, Room Partition, RH
64248B Bracket, Room Partition, LH
64273F Pad, Room Partition, NO.1
64274C Pad, Room Partition, NO.2
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
64814C Dam, Back Window Glass Adhesive, Lower
75571G Moulding, Back Window, Outside Upper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
