Toyota 86 Grmn

2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan

Supported model Data version 2016-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

9 part groups · 2 illustrations

Illustrations

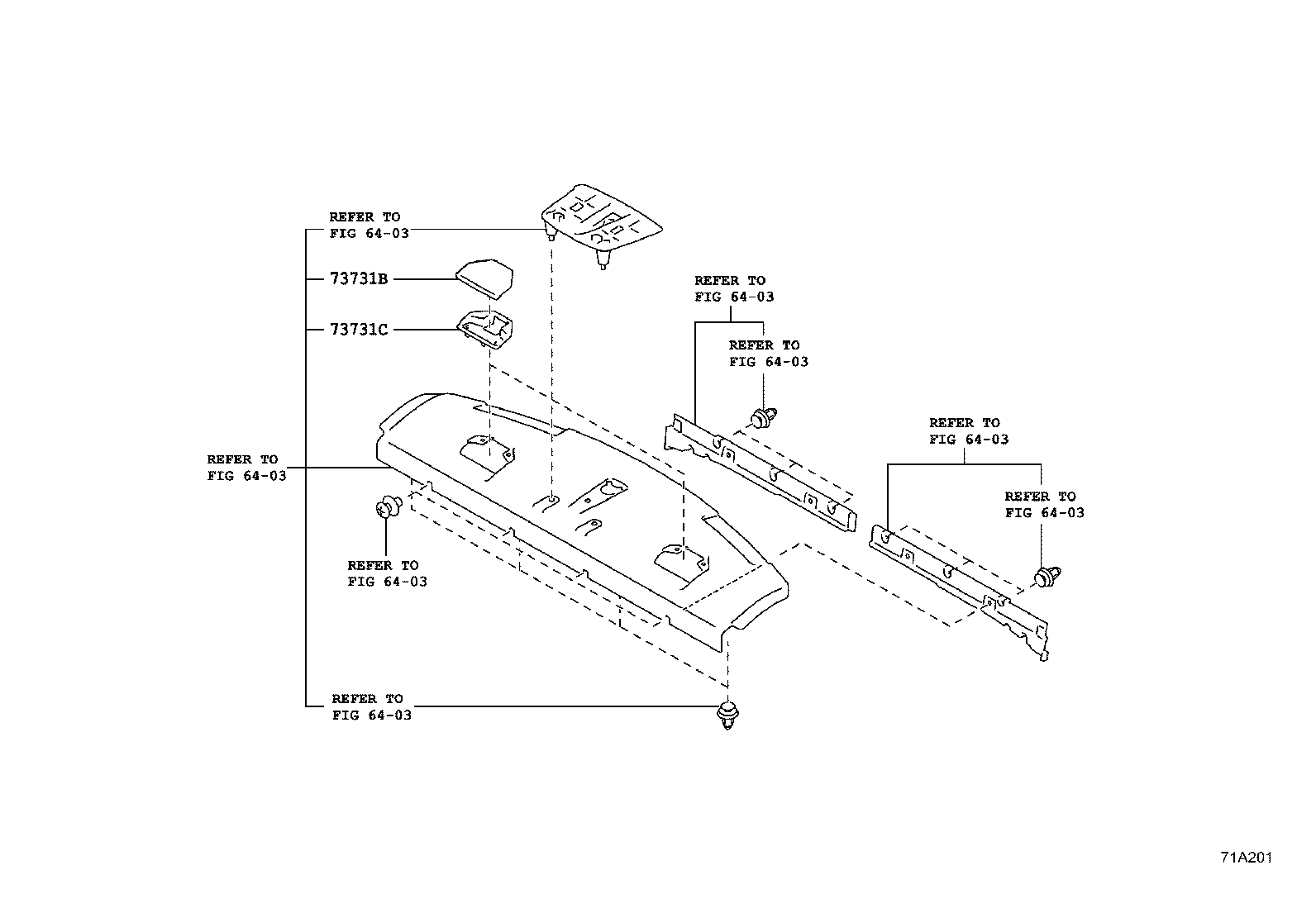

Figure 71A200 71A200 2016-02 → — Figure 71A201 71A201 2016-02 → —

Part groups

PNCDescription
73176 Hanger, Front Shoulder Belt, RH (FOR FRONT SEAT)
73177 Hanger, Front Shoulder Belt, LH (FOR FRONT SEAT)
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73731B Cover, Child Restraint Seat, NO.1
73731C Cover, Child Restraint Seat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
