Toyota 86 Grmn
2016-02 → present · chassis GRMN86 · catalogue 265110 · Japan
Supported model
Data version 2016-02

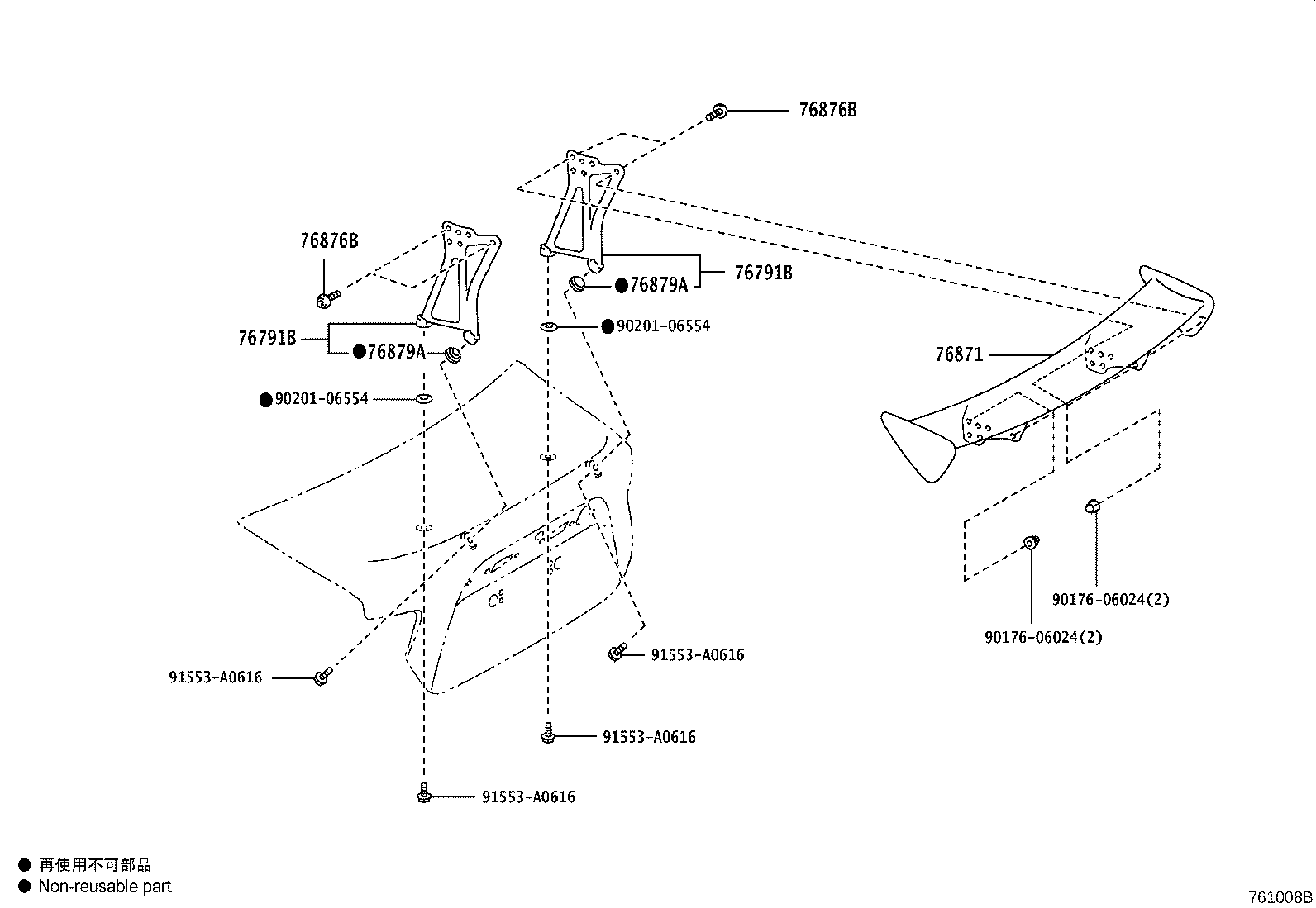

Mudguard & Spoiler
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75868C | Clip, Rear Spoiler, NO.2 |
| 76081 | Spoiler Sub-assy, Front |
| 76791B | Bracket, Rear Spoiler |
| 76851 | Cover, Front Spoiler |
| 76871 | Spoiler, Rear |
| 76876B | Insert, Rear Spoiler |
| 76879A | Spacer, Rear Spoiler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
